EPC Data

FRONT SEAT & SEAT TRACK

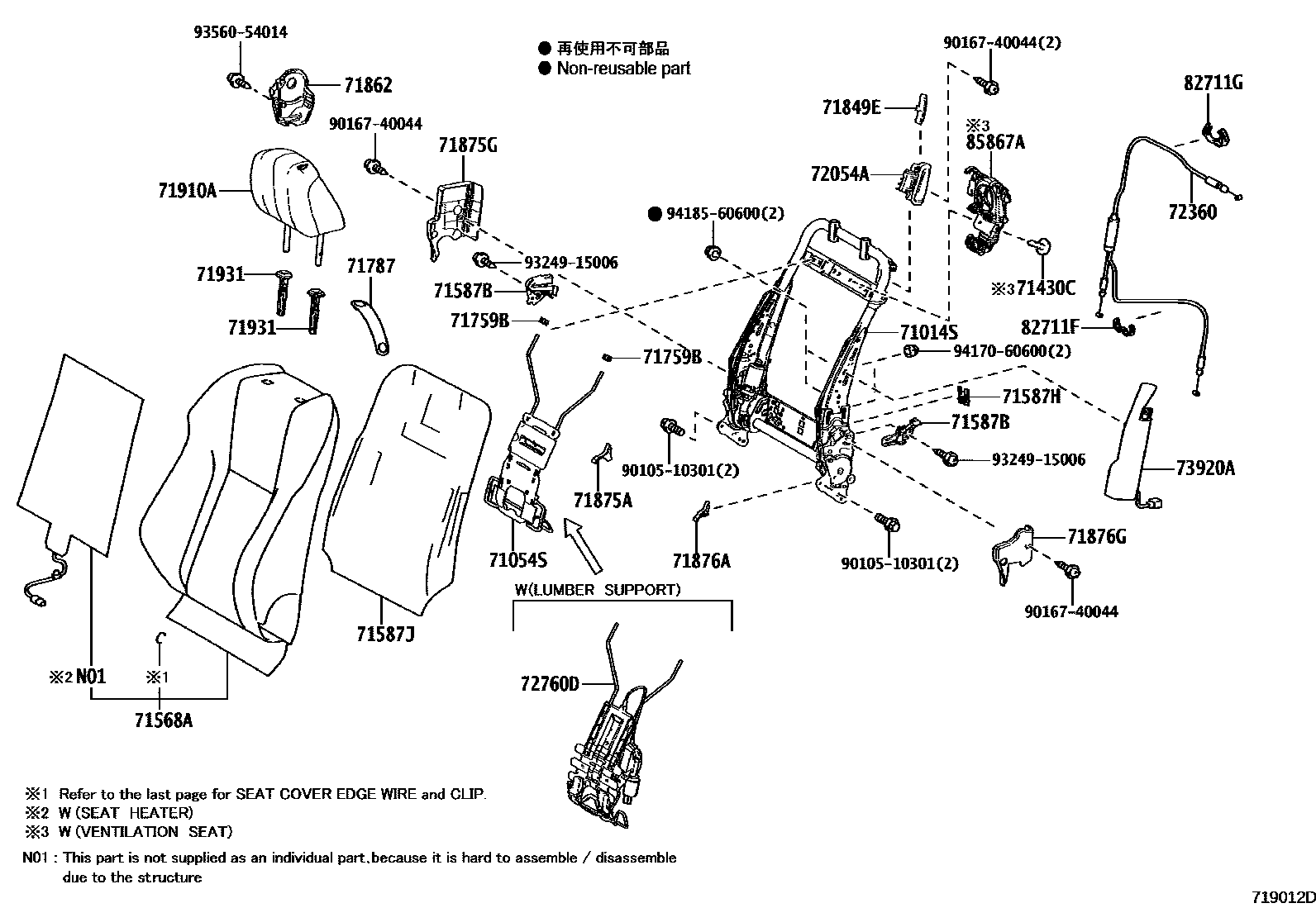

Parts diagram
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
main71014-24070i¥52,900201409-201703
sub71014-24071¥40,000
main71014-24071i¥40,000201704-202209
71054SSPRING SUB-ASSY, FRONT SEATBACK, LH
main71053-76010i¥1,860201409-202209
71430CCLIP
main90467-08186-C0i201510-201610
CHILE SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK
sub90467-08186¥120
main90467-08186-C0i201510-201610
MIDDLE & SOUTH AMERICA SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK
sub90467-08186¥120
main90467-08186-C0i201409-201610
"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK
sub90467-08186¥120
main90467-08186-C0i201409-201610
"VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK
sub90467-08186¥120
main90467-08186-C0i201409-201610
BLACK
sub90467-08186¥120
main90467-08186-C0i201409-201610
TAIWAN SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK
sub90467-08186¥120
main90467-08186-C0i201510-201610
PHILIPPINE SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK
sub90467-08186¥120
main90467-08186-C0i201510-201610
BRAZIL SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK
sub90467-08186¥120
main90467-08186-C3i201610-201810
"VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK
sub90467-08186¥120
main90467-08186-C3i201610-202209
BLACK
sub90467-08186¥120
main90467-08186-C3i201610-201810
TAIWAN SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK
sub90467-08186¥120
main90467-08186-C3i201610-201810
PHILIPPINE SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK
sub90467-08186¥120
main90467-08186-C3i201610-201810
BRAZIL SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK
sub90467-08186¥120
main90467-08186-C3i201610-201810
CHILE SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK
sub90467-08186¥120
main90467-08186-C3i201610-201810
MIDDLE & SOUTH AMERICA SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK
sub90467-08186¥120
main90467-08186-C3i201610-201810
"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK
sub90467-08186¥120
main90467-08186-C3i201610-201810
VIETNAM SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK
sub90467-08186¥120
71568APAD, FRONT SEATBACK W/COVER, LH
main71402-24010-B2i201510-201608
MOON STONE,TRIM1#
sub71402-24010¥124,000
sub71402-24011¥103,000
main71402-24010-C2i201510-201608
BLACK,TRIM2#
sub71402-24010¥124,000
sub71402-24011¥103,000
main71402-24010-E2i201510-201608
TOPAZ BROWN,TRIM4#
sub71402-24010¥124,000
sub71402-24011¥103,000
main71402-24010-F2i201510-201608
CLOVE,TRIM5#
sub71402-24010¥124,000
sub71402-24011¥103,000
main71402-24011-B0i201609-201802
MOON STONE,TRIM1#
main71402-24011-B1i201802-201810
MOON STONE,TRIM1#
main71402-24011-C0i201609-201802
BLACK,TRIM2#
main71402-24011-C1i201802-201810
BLACK,TRIM2#
main71402-24011-C3i201812-202003
BLACK/LT.GRAY,TRIM2#
main71402-24011-D2i201812-202003
DK.ROSE/RED,TRIM3#
main71402-24011-E0i201609-201802
TOPAZ BROWN,TRIM4#
main71402-24011-E1i201802-201810
TOPAZ BROWN,TRIM4#
main71402-24011-E4i201812-202003
OCHER/ROYAL BROWN,TRIM4#
main71402-24011-F0i201609-201802
CLOVE,TRIM5#
main71402-24011-F1i201802-201810
CLOVE,TRIM5#
main71402-24011-F4i201812-202003
CLOVE/SADDLE TAN,TRIM5#
main71402-24020-B2i201510-201609
MOON STONE,TRIM1#
sub71402-24020
sub71402-24021
main71402-24020-C2i201510-201609
BLACK,TRIM2#
sub71402-24020
sub71402-24021
main71402-24020-E2i201510-201609
TOPAZ BROWN,TRIM4#
sub71402-24020
sub71402-24021
main71402-24020-F2i201510-201609
CLOVE,TRIM5#
sub71402-24020
sub71402-24021
main71402-24030-B1i201409-201510
MOON STONE,TRIM1#
sub71402-24030
sub71402-24031
main71402-24030-B2i201510-201608
MOON STONE,TRIM1#
sub71402-24030
sub71402-24031
main71402-24030-C1i201409-201510
BLACK,TRIM2#
sub71402-24030
sub71402-24031
main71402-24030-C2i201510-201608
BLACK,TRIM2#
sub71402-24030
sub71402-24031
main71402-24030-E1i201409-201510
TOPAZ BROWN,TRIM4#
sub71402-24030
sub71402-24031
main71402-24030-E2i201510-201608
TOPAZ BROWN,TRIM4#
sub71402-24030
sub71402-24031
main71402-24030-F1i201409-201510
CLOVE,TRIM5#
sub71402-24030
sub71402-24031
main71402-24030-F2i201510-201608
CLOVE,TRIM5#
sub71402-24030
sub71402-24031
main71402-24031-B0i201609-201802
MOON STONE,TRIM1#
main71402-24031-B1i201802-201810
MOON STONE,TRIM1#
main71402-24031-C0i201609-201802
BLACK,TRIM2#
main71402-24031-C1i201802-201810
BLACK,TRIM2#
main71402-24031-C3i201810-202501
BLACK/LT.GRAY,TRIM2#
main71402-24031-C5i202501
BLACK/LT.GRAY,TRIM2#
main71402-24031-D2i201810-202301
DK.ROSE/RED,TRIM3#
main71402-24031-D3i202301-202501
DK.ROSE,TRIM3#
main71402-24031-D5i202501
DK.ROSE/RED,TRIM3#
main71402-24031-E0i201609-201802
TOPAZ BROWN,TRIM4#
main71402-24031-E1i201802-201810
TOPAZ BROWN,TRIM4#
main71402-24031-E4i201810-202501
OCHER/ROYAL BROWN,TRIM4#
main71402-24031-E6i202501
OCHER/ROYAL BROWN,TRIM4#
main71402-24031-F0i201609-201802
CLOVE,TRIM5#
main71402-24031-F1i201802-201810
CLOVE,TRIM5#
main71402-24031-F4i201810-202301
CLOVE/SADDLE TAN,TRIM5#
main71402-24050-B1i201409-201510
MOON STONE,TRIM1#
sub71402-24050
sub71402-24051
main71402-24050-B2i201510-201608
"VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),MOON STONE,TRIM1#
sub71402-24050
sub71402-24051
main71402-24050-B2i201510-201608
MOON STONE,TRIM1#
sub71402-24050
sub71402-24051
main71402-24050-B2i201510-201608
SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),MOON STONE,TRIM1#
sub71402-24050
sub71402-24051
main71402-24050-C1i201409-201510
BLACK,TRIM2#
sub71402-24050
sub71402-24051
main71402-24050-C2i201510-201608
"VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK,TRIM2#
sub71402-24050
sub71402-24051
main71402-24050-C2i201510-201608
BLACK,TRIM2#
sub71402-24050
sub71402-24051
main71402-24050-C2i201510-201608
SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),BLACK,TRIM2#
sub71402-24050
sub71402-24051
main71402-24050-E1i201409-201510
TOPAZ BROWN,TRIM4#
sub71402-24050
sub71402-24051
main71402-24050-E2i201510-201608
SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),TOPAZ BROWN,TRIM4#
sub71402-24050
sub71402-24051
main71402-24050-E2i201510-201608
TOPAZ BROWN,TRIM4#
sub71402-24050
sub71402-24051
main71402-24050-E2i201510-201608
"VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),TOPAZ BROWN,TRIM4#
sub71402-24050
sub71402-24051
main71402-24050-F1i201409-201510
CLOVE,TRIM5#
sub71402-24050
sub71402-24051
main71402-24050-F2i201510-201608
SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH),CLOVE,TRIM5#
sub71402-24050
sub71402-24051
main71402-24050-F2i201510-201608
"VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),CLOVE,TRIM5#
sub71402-24050
sub71402-24051
main71402-24050-F2i201510-201608
CLOVE,TRIM5#
sub71402-24050
sub71402-24051
main71402-24051-B0i201609-201802
"VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),MOON STONE,TRIM1#
main71402-24051-B0i201609-201802
MOON STONE,TRIM1#
main71402-24051-B1i201802-201810
"VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),MOON STONE,TRIM1#
main71402-24051-B1i201802-201810
MOON STONE,TRIM1#
main71402-24051-C0i201609-201802
BLACK,TRIM2#
main71402-24051-C0i201609-201802
"VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK,TRIM2#
main71402-24051-C1i201802-201810
BLACK,TRIM2#
main71402-24051-C1i201802-201810
"VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK,TRIM2#
main71402-24051-C3i201810-201812
BLACK/LT.GRAY,TRIM2#
main71402-24051-D1i201810-201812
DK.ROSE/RED,TRIM3#
main71402-24051-E0i201609-201802
"VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),TOPAZ BROWN,TRIM4#
main71402-24051-E0i201609-201802
TOPAZ BROWN,TRIM4#
main71402-24051-E1i201802-201810
TOPAZ BROWN,TRIM4#
main71402-24051-E1i201802-201810
"VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),TOPAZ BROWN,TRIM4#
main71402-24051-E3i201810-201812
OCHER/ROYAL BROWN,TRIM4#
main71402-24051-F0i201609-201802
"VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),CLOVE,TRIM5#
main71402-24051-F0i201609-201802
CLOVE,TRIM5#
main71402-24051-F1i201802-201810
CLOVE,TRIM5#
main71402-24051-F1i201802-201810
"VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),CLOVE,TRIM5#
main71402-24051-F3i201810-201812
CLOVE/SADDLE TAN,TRIM5#
main71402-24052-C0i201901-202209
BLACK/LT.GRAY,TRIM2#
main71402-24052-D0i201901-202209
DK.ROSE/RED,TRIM3#
main71402-24052-E0i201901-202209
OCHER/ROYAL BROWN,TRIM4#
main71402-24052-F0i201901-202209
CLOVE/SADDLE TAN,TRIM5#
main71402-24113-A1i202501
WHITE,TRIM0#
main71402-24113-C0i202501
BLACK/WHITE/LT.GRAY,TRIM2#
main71402-24113-D1i202501
RED,TRIM3#
main71402-24113-F0i202501
BLACK/MUSTARD YELLOW,TRIM5#
main71402-24121-B0i201711-201802
MOON STONE,TRIM1#
main71402-24121-B1i201802-201810
"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),MOON STONE,TRIM1#
main71402-24121-B1i201802-201810
CHILE SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),MOON STONE,TRIM1#
main71402-24121-B1i201802-201810
BRAZIL SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),MOON STONE,TRIM1#
main71402-24121-B1i201802-201810
PHILIPPINE SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),MOON STONE,TRIM1#
main71402-24121-B1i201802-201810
TAIWAN SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),MOON STONE,TRIM1#
main71402-24121-B1i201802-201810
MOON STONE,TRIM1#
main71402-24121-B1i201802-201810
VIETNAM SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),MOON STONE,TRIM1#
main71402-24121-B1i201802-201810
MIDDLE & SOUTH AMERICA SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),MOON STONE,TRIM1#
main71402-24121-C0i201711-201802
BLACK/WHITE,TRIM2#
main71402-24121-C1i201802-201810
PHILIPPINE SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK/WHITE/LT.GRAY,TRIM2#
main71402-24121-C1i201802-201810
BLACK/WHITE/LT.GRAY,TRIM2#
main71402-24121-C1i201802-201810
TAIWAN SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK/WHITE/LT.GRAY,TRIM2#
main71402-24121-C1i201802-201810
BRAZIL SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK/WHITE/LT.GRAY,TRIM2#
main71402-24121-C1i201802-201810
CHILE SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK/WHITE/LT.GRAY,TRIM2#
main71402-24121-C1i201802-201810
MIDDLE & SOUTH AMERICA SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK/WHITE/LT.GRAY,TRIM2#
main71402-24121-C1i201802-201810
"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK/WHITE/LT.GRAY,TRIM2#
main71402-24121-C1i201802-201810
VIETNAM SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK/WHITE/LT.GRAY,TRIM2#
main71402-24121-D0i201711-201802
DK.ROSE,TRIM3#
main71402-24121-D1i201802-201810
BRAZIL SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),DK.ROSE,TRIM3#
main71402-24121-D1i201802-201810
CHILE SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),DK.ROSE,TRIM3#
main71402-24121-D1i201802-201810
MIDDLE & SOUTH AMERICA SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),DK.ROSE,TRIM3#
main71402-24121-D1i201802-201810
"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),DK.ROSE,TRIM3#
main71402-24121-D1i201802-201810
VIETNAM SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),DK.ROSE,TRIM3#
main71402-24121-D1i201802-201810
DK.ROSE,TRIM3#
main71402-24121-D1i201802-201810
TAIWAN SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),DK.ROSE,TRIM3#
main71402-24121-D1i201802-201810
PHILIPPINE SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),DK.ROSE,TRIM3#
main71402-24121-F0i201711-201802
CLOVE,TRIM5#
main71402-24121-F1i201802-201810
MIDDLE & SOUTH AMERICA SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),CLOVE,TRIM5#
main71402-24121-F1i201802-201810
CLOVE,TRIM5#
main71402-24121-F1i201802-201810
TAIWAN SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),CLOVE,TRIM5#
main71402-24121-F1i201802-201810
PHILIPPINE SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),CLOVE,TRIM5#
main71402-24121-F1i201802-201810
BRAZIL SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),CLOVE,TRIM5#
main71402-24121-F1i201802-201810
CHILE SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),CLOVE,TRIM5#
main71402-24121-F1i201802-201810
"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),CLOVE,TRIM5#
main71402-24121-F1i201802-201810
VIETNAM SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),CLOVE,TRIM5#
main71402-24123-A0i202111-202301
WHITE/ECRU,TRIM0#
main71402-24123-A1i202301-202501
WHITE,TRIM0#
main71402-24123-C0i202111-202501
BLACK/WHITE/LT.GRAY,TRIM2#
main71402-24123-D0i202111-202301
RED/RED,TRIM3#
main71402-24123-D1i202301-202501
RED,TRIM3#
main71402-24123-F0i202111-202501
BLACK/MUSTARD YELLOW,TRIM5#
71587PROTECTOR, FRONT SEATBACK EDGE
main71587-24050i¥620201409-202209
OUTER
main71587-24060i¥620201409-202209
INNER
71587BPROTECTOR, FRONT SEATBACK EDGE
main71587-24070i¥620201409-202209
OUTER
main71587-24080i¥620201409-202209
INNER
71587HPROTECTOR, FRONT SEATBACK EDGE
main71587-24090i¥110201409-202110
71587JPROTECTOR, FRONT SEATBACK EDGE
main71587-24100i¥600201810-202209
71759BHOOK, FRONT SEATBACK
main71759-47011i¥110201409-202209
71787BAND, FRONT SEATBACK POCKET
main71788-24030-A2i202111-202301
WHITE,TRIM0#
sub71788-24030¥650
main71788-24030-A3i202301
WHITE/LT.GRAY,TRIM0#
sub71788-24030¥650
main71788-24030-A3i202301
"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),WHITE/LT.GRAY,TRIM0#
sub71788-24030¥650
main71788-24030-B0i201409-201810
MOON STONE,TRIM1#
sub71788-24030¥650
main71788-24030-C0i201409-201810
BLACK,TRIM2#
sub71788-24030¥650
main71788-24030-C2i201810-202209
BLACK,TRIM2#
sub71788-24030¥650
main71788-24030-D0i201711-201810
DK.ROSE,TRIM3#
sub71788-24030¥650
main71788-24030-D3i201810-202301
DK.ROSE/RED,TRIM3#
sub71788-24030¥650
main71788-24030-D4i202111-202301
RED,TRIM3#
sub71788-24030¥650
main71788-24030-D5i202301
DK.ROSE/RED,TRIM3#
sub71788-24030¥650
main71788-24030-D6i202301
RED/RED,TRIM3#
sub71788-24030¥650
main71788-24030-D6i202301
"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),RED/RED,TRIM3#
sub71788-24030¥650
main71788-24030-E1i201810-202209
OCHER/ROYAL BROWN,TRIM4#
sub71788-24030¥650
main71788-24030-F0i201409-201810
TOPAZ BROWN,TRIM4#
sub71788-24030¥650
main71788-24030-F1i201409-201810
CLOVE,TRIM5#
sub71788-24030¥650
main71788-24030-F3i201810-202301
CLOVE/CAMEL YELLOW,TRIM5#
sub71788-24030¥650
main71788-24030-F4i202111
MUSTARD YELLOW,TRIM5#
sub71788-24030¥650
71849CAP, SEAT ADJUSTER COVER, LH
main71848-76010i¥200201409-202209
71849ECAP, RECLINING REMOTE CONTROL, LH
main71849-24010-C0i201810-202501
BLACK,TRIM0#,2#,3#,4#,5#
main71849-24010-C0i201409-201810
BLACK,TRIM1#,2#,3#,4#,5#
main71849-24010-C0i201409-201510
BLACK,TRIM0#,1#,2#,3#,4#,5#
main71849-24010-D0i202501
RED,TRIM38
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-24070-C0i201409-201810
BLACK,TRIM1#,2#,3#,4#,5#
main71862-24070-C0i201409-201510
BLACK,TRIM0#,1#,2#,3#,4#,5#
main71862-24070-C0i201810-202209
BLACK,TRIM0#,2#,3#,4#,5#
71875ACOVER, RECLINING ADJUSTER INSIDE, RH
main71875-24090-C0i201409-201510
BLACK,TRIM0#,1#,2#,3#,4#,5#
main71875-24090-C0i201409-201810
BLACK,TRIM1#,2#,3#,4#,5#
main71875-24090-C0i201810-202209
BLACK,TRIM0#,2#,3#,4#,5#
71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
main71875-24110i¥1,520201409-202209
71876ACOVER, RECLINING ADJUSTER INSIDE, LH
main71876-24040-C0i201409-201510
BLACK,TRIM0#,1#,2#,3#,4#,5#
main71876-24040-C0i201409-201810
BLACK,TRIM1#,2#,3#,4#,5#
main71876-24040-C0i201810-202209
BLACK,TRIM0#,2#,3#,4#,5#
71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
main71876-24060i¥1,090201409-202209
71910AHEADREST ASSY, FRONT SEAT
main71910-24360i¥21,300201510-201609
sub71910-24400¥25,500
main71910-24360-21i201810-202501
BLACK/LT.GRAY,TRIM2#
sub71910-24400¥25,500
sub71910-24360¥21,300
main71910-24360-21i201810-202111
SINGAPORE SPEC,BLACK/LT.GRAY,TRIM2#
sub71910-24400¥25,500
sub71910-24360¥21,300
main71910-24360-21i201810-202111
MALAYSIA SPEC,BLACK/LT.GRAY,TRIM2#
sub71910-24400¥25,500
sub71910-24360¥21,300
main71910-24360-50i201810-202301
CLOVE/SADDLE TAN,TRIM5#
sub71910-24400¥25,500
sub71910-24360¥21,300
main71910-24360-50i201810-202111
SINGAPORE SPEC,CLOVE/SADDLE TAN,TRIM5#
sub71910-24400¥25,500
sub71910-24360¥21,300
main71910-24360-50i201810-202111
MALAYSIA SPEC,CLOVE/SADDLE TAN,TRIM5#
sub71910-24400¥25,500
sub71910-24360¥21,300
main71910-24360-B1i201409-201510
MOON STONE,TRIM1#
sub71910-24400¥25,500
sub71910-24360¥21,300
main71910-24360-C0i201409-201510
BLACK,TRIM2#
sub71910-24400¥25,500
sub71910-24360¥21,300
main71910-24360-D8i201810-202301
DK.ROSE/RED,TRIM3#
sub71910-24400¥25,500
sub71910-24360¥21,300
main71910-24360-D8i201810-202111
MALAYSIA SPEC,DK.ROSE/RED,TRIM3#
sub71910-24400¥25,500
sub71910-24360¥21,300
main71910-24360-D8i201810-202111
SINGAPORE SPEC,DK.ROSE/RED,TRIM3#
sub71910-24400¥25,500
sub71910-24360¥21,300
main71910-24360-E1i201810-202501
OCHER/ROYAL BROWN,TRIM4#
sub71910-24400¥25,500
sub71910-24360¥21,300
main71910-24360-E1i201810-202111
SINGAPORE SPEC,OCHER/ROYAL BROWN,TRIM4#
sub71910-24400¥25,500
sub71910-24360¥21,300
main71910-24360-E1i201810-202111
MALAYSIA SPEC,OCHER/ROYAL BROWN,TRIM4#
sub71910-24400¥25,500
sub71910-24360¥21,300
main71910-24360-F2i201409-201510
TOPAZ BROWN,TRIM4#
sub71910-24400¥25,500
sub71910-24360¥21,300
main71910-24360-F3i201409-201510
CLOVE,TRIM5#
sub71910-24400¥25,500
sub71910-24360¥21,300
main71910-24360-X0i202301-202501
DK.ROSE/RED,TRIM3#
sub71910-24400¥25,500
sub71910-24360¥21,300
main71910-24361-26i202501
BLACK,TRIM38
main71910-24361-C3i202501
BLACK/LT.GRAY,TRIM2#
main71910-24361-E2i202501
OCHER/ROYAL BROWN,TRIM4#
main71910-24361-X3i202501
DK.ROSE/RED,TRIM33
main71910-24370-51i201810-202209
CLOVE/SADDLE TAN,TRIM5#
sub71910-24390¥33,600
main71910-24370-A2i202111-202301
WHITE/ECRU,TRIM0#
sub71910-24390¥33,600
main71910-24370-A3i202301-202501
"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),WHITE/LT.GRAY,TRIM0#
sub71910-24390¥33,600
main71910-24370-A3i202301-202501
WHITE/LT.GRAY,TRIM0#
sub71910-24390¥33,600
main71910-24370-A3i202301-202501
"VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),WHITE/LT.GRAY,TRIM0#
sub71910-24390¥33,600
main71910-24370-B1i201409-201510
TAIWAN SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),MOON STONE,TRIM1#
sub71910-24390¥33,600
main71910-24370-B1i201409-201510
MOON STONE,TRIM1#
sub71910-24390¥33,600
main71910-24370-B1i201409-201510
"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),MOON STONE,TRIM1#
sub71910-24390¥33,600
main71910-24370-B1i201409-201510
"VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),MOON STONE,TRIM1#
sub71910-24390¥33,600
main71910-24370-C0i201409-201510
"VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK,TRIM2#
sub71910-24390¥33,600
main71910-24370-C0i201409-201510
TAIWAN SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK,TRIM2#
sub71910-24390¥33,600
main71910-24370-C0i201409-201510
"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK,TRIM2#
sub71910-24390¥33,600
main71910-24370-C0i201409-201510
BLACK,TRIM2#
sub71910-24390¥33,600
main71910-24370-C7i202111-202501
BLACK/MUSTARD YELLOW,TRIM5#
sub71910-24390¥33,600
main71910-24370-C8i201810-202501
BLACK/LT.GRAY,TRIM2#
sub71910-24390¥33,600
main71910-24370-C8i201810-202501
"VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK/LT.GRAY,TRIM2#
sub71910-24390¥33,600
main71910-24370-C8i201810-202501
"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK/LT.GRAY,TRIM2#
sub71910-24390¥33,600
main71910-24370-D6i201810-202209
DK.ROSE/RED,TRIM3#
sub71910-24390¥33,600
main71910-24370-D7i202111-202301
RED/RED,TRIM3#
sub71910-24390¥33,600
main71910-24370-D8i202301-202501
DK.ROSE/RED,TRIM30,31
sub71910-24390¥33,600
main71910-24370-D8i202301-202501
"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),DK.ROSE/RED,TRIM30,31
sub71910-24390¥33,600
main71910-24370-D8i202301-202501
"VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),DK.ROSE/RED,TRIM30,31
sub71910-24390¥33,600
main71910-24370-D9i202301-202501
"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK/RED,TRIM37,39
sub71910-24390¥33,600
main71910-24370-D9i202301-202501
"VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK/RED,TRIM37,39
sub71910-24390¥33,600
main71910-24370-D9i202301-202501
BLACK/RED,TRIM37,39
sub71910-24390¥33,600
main71910-24370-E1i201810-202209
OCHER/ROYAL BROWN,TRIM4#
sub71910-24390¥33,600
main71910-24370-F2i201409-201510
TAIWAN SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),TOPAZ BROWN,TRIM4#
sub71910-24390¥33,600
main71910-24370-F2i201409-201510
"VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),TOPAZ BROWN,TRIM4#
sub71910-24390¥33,600
main71910-24370-F2i201409-201510
"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),TOPAZ BROWN,TRIM4#
sub71910-24390¥33,600
main71910-24370-F2i201409-201510
TOPAZ BROWN,TRIM4#
sub71910-24390¥33,600
main71910-24370-F3i201409-201510
"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),CLOVE,TRIM5#
sub71910-24390¥33,600
main71910-24370-F3i201409-201510
TAIWAN SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),CLOVE,TRIM5#
sub71910-24390¥33,600
main71910-24370-F3i201409-201510
CLOVE,TRIM5#
sub71910-24390¥33,600
main71910-24370-F3i201409-201510
"VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),CLOVE,TRIM5#
sub71910-24390¥33,600
main71910-24371-A3i202501
"VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),WHITE/LT.GRAY,TRIM0#
main71910-24371-A3i202501
"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),WHITE/LT.GRAY,TRIM0#
main71910-24371-A3i202501
WHITE/LT.GRAY,TRIM0#
main71910-24371-C7i202501
"VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK/MUSTARD YELLOW,TRIM5#
main71910-24371-C7i202501
BLACK/MUSTARD YELLOW,TRIM5#
main71910-24371-C7i202501
"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK/MUSTARD YELLOW,TRIM5#
main71910-24371-C8i202501
BLACK/LT.GRAY,TRIM2#
main71910-24371-C8i202501
"VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK/LT.GRAY,TRIM2#
main71910-24371-C8i202501
"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK/LT.GRAY,TRIM2#
main71910-24371-D9i202501
"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),RED,TRIM37,39
main71910-24371-D9i202501
"VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),RED,TRIM37,39
main71910-24371-D9i202501
RED,TRIM3#
main71910-24390-B0i201609-201802
VIETNAM SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),MOON STONE,TRIM1#
sub71910-24390¥33,600
main71910-24390-B0i201510-201802
MOON STONE,TRIM1#
sub71910-24390¥33,600
main71910-24390-B0i201510-201802
TAIWAN SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),MOON STONE,TRIM1#
sub71910-24390¥33,600
main71910-24390-B0i201510-201802
PHILIPPINE SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),MOON STONE,TRIM1#
sub71910-24390¥33,600
main71910-24390-B0i201510-201802
BRAZIL SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),MOON STONE,TRIM1#
sub71910-24390¥33,600
main71910-24390-B0i201510-201802
CHILE SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),MOON STONE,TRIM1#
sub71910-24390¥33,600
main71910-24390-B0i201510-201802
MIDDLE & SOUTH AMERICA SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),MOON STONE,TRIM1#
sub71910-24390¥33,600
main71910-24390-B0i201510-201802
"F SPORT",MOON STONE,TRIM1#,W(CCC MARK)
sub71910-24390¥33,600
main71910-24390-B0i201510-201802
"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),MOON STONE,TRIM1#
sub71910-24390¥33,600
main71910-24390-B0i201510-201802
"VERSION L",MOON STONE,TRIM1#,W(CCC MARK)
sub71910-24390¥33,600
main71910-24390-B0i201510-201802
"VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),MOON STONE,TRIM1#
sub71910-24390¥33,600
main71910-24390-B1i201802-201810
MIDDLE & SOUTH AMERICA SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),MOON STONE,TRIM1#
sub71910-24390¥33,600
main71910-24390-B1i201802-201810
"F SPORT",MOON STONE,TRIM1#,W(CCC MARK)
sub71910-24390¥33,600
main71910-24390-B1i201802-201810
"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),MOON STONE,TRIM1#
sub71910-24390¥33,600
main71910-24390-B1i201802-201810
"VERSION L",MOON STONE,TRIM1#,W(CCC MARK)
sub71910-24390¥33,600
main71910-24390-B1i201802-201810
"VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),MOON STONE,TRIM1#
sub71910-24390¥33,600
main71910-24390-B1i201802-201810
VIETNAM SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),MOON STONE,TRIM1#
sub71910-24390¥33,600
main71910-24390-B1i201802-201810
MOON STONE,TRIM1#
sub71910-24390¥33,600
main71910-24390-B1i201802-201810
TAIWAN SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),MOON STONE,TRIM1#
sub71910-24390¥33,600
main71910-24390-B1i201802-201810
PHILIPPINE SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),MOON STONE,TRIM1#
sub71910-24390¥33,600
main71910-24390-B1i201802-201810
BRAZIL SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),MOON STONE,TRIM1#
sub71910-24390¥33,600
main71910-24390-B1i201802-201810
CHILE SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),MOON STONE,TRIM1#
sub71910-24390¥33,600
main71910-24390-C0i201609-201802
VIETNAM SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK,TRIM2#
sub71910-24390¥33,600
main71910-24390-C0i201510-201802
"VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK,TRIM2#
sub71910-24390¥33,600
main71910-24390-C0i201510-201802
"VERSION L",BLACK,TRIM2#,W(CCC MARK)
sub71910-24390¥33,600
main71910-24390-C0i201510-201802
"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK,TRIM2#
sub71910-24390¥33,600
main71910-24390-C0i201510-201802
"F SPORT",BLACK,TRIM2#,W(CCC MARK)
sub71910-24390¥33,600
main71910-24390-C0i201510-201802
MIDDLE & SOUTH AMERICA SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK,TRIM2#
sub71910-24390¥33,600
main71910-24390-C0i201510-201802
CHILE SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK,TRIM2#
sub71910-24390¥33,600
main71910-24390-C0i201510-201802
BRAZIL SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK,TRIM2#
sub71910-24390¥33,600
main71910-24390-C0i201510-201802
PHILIPPINE SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK,TRIM2#
sub71910-24390¥33,600
main71910-24390-C0i201510-201802
TAIWAN SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK,TRIM2#
sub71910-24390¥33,600
main71910-24390-C0i201510-201802
BLACK,TRIM2#
sub71910-24390¥33,600
main71910-24390-C1i201802-201810
TAIWAN SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK,TRIM2#
sub71910-24390¥33,600
main71910-24390-C1i201802-201810
VIETNAM SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK,TRIM2#
sub71910-24390¥33,600
main71910-24390-C1i201802-201810
"VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK,TRIM2#
sub71910-24390¥33,600
main71910-24390-C1i201802-201810
"VERSION L",BLACK,TRIM2#,W(CCC MARK)
sub71910-24390¥33,600
main71910-24390-C1i201802-201810
"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK,TRIM2#
sub71910-24390¥33,600
main71910-24390-C1i201802-201810
"F SPORT",BLACK,TRIM2#,W(CCC MARK)
sub71910-24390¥33,600
main71910-24390-C1i201802-201810
MIDDLE & SOUTH AMERICA SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK,TRIM2#
sub71910-24390¥33,600
main71910-24390-C1i201802-201810
CHILE SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK,TRIM2#
sub71910-24390¥33,600
main71910-24390-C1i201802-201810
BRAZIL SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK,TRIM2#
sub71910-24390¥33,600
main71910-24390-C1i201802-201810
PHILIPPINE SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK,TRIM2#
sub71910-24390¥33,600
main71910-24390-C1i201802-201810
BLACK,TRIM2#
sub71910-24390¥33,600
main71910-24390-D0i201510-201802
"F SPORT",DK.ROSE,TRIM3#,W(CCC MARK)
sub71910-24390¥33,600
main71910-24390-D0i201510-201802
DK.ROSE,TRIM3#
sub71910-24390¥33,600
main71910-24390-D0i201510-201802
TAIWAN SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),DK.ROSE,TRIM3#
sub71910-24390¥33,600
main71910-24390-D0i201510-201802
PHILIPPINE SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),DK.ROSE,TRIM3#
sub71910-24390¥33,600
main71910-24390-D0i201510-201802
BRAZIL SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),DK.ROSE,TRIM3#
sub71910-24390¥33,600
main71910-24390-D0i201510-201802
CHILE SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),DK.ROSE,TRIM3#
sub71910-24390¥33,600
main71910-24390-D0i201510-201802
MIDDLE & SOUTH AMERICA SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),DK.ROSE,TRIM3#
sub71910-24390¥33,600
main71910-24390-D0i201510-201802
"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),DK.ROSE,TRIM3#
sub71910-24390¥33,600
main71910-24390-D0i201510-201802
"VERSION L",DK.ROSE,TRIM3#,W(CCC MARK)
sub71910-24390¥33,600
main71910-24390-D0i201510-201802
"VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),DK.ROSE,TRIM3#
sub71910-24390¥33,600
main71910-24390-D0i201609-201802
VIETNAM SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),DK.ROSE,TRIM3#
sub71910-24390¥33,600
main71910-24390-D1i201802-201810
TAIWAN SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),DK.ROSE,TRIM3#
sub71910-24390¥33,600
main71910-24390-D1i201802-201810
DK.ROSE,TRIM3#
sub71910-24390¥33,600
main71910-24390-D1i201802-201810
PHILIPPINE SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),DK.ROSE,TRIM3#
sub71910-24390¥33,600
main71910-24390-D1i201802-201810
BRAZIL SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),DK.ROSE,TRIM3#
sub71910-24390¥33,600
main71910-24390-D1i201802-201810
CHILE SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),DK.ROSE,TRIM3#
sub71910-24390¥33,600
main71910-24390-D1i201802-201810
MIDDLE & SOUTH AMERICA SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),DK.ROSE,TRIM3#
sub71910-24390¥33,600
main71910-24390-D1i201802-201810
"F SPORT",DK.ROSE,TRIM3#,W(CCC MARK)
sub71910-24390¥33,600
main71910-24390-D1i201802-201810
"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),DK.ROSE,TRIM3#
sub71910-24390¥33,600
main71910-24390-D1i201802-201810
"VERSION L",DK.ROSE,TRIM3#,W(CCC MARK)
sub71910-24390¥33,600
main71910-24390-D1i201802-201810
VIETNAM SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),DK.ROSE,TRIM3#
sub71910-24390¥33,600
main71910-24390-D1i201802-201810
BRUNEI SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),DK.ROSE,TRIM3#
sub71910-24390¥33,600
main71910-24390-D1i201802-201810
INDONESIA SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),DK.ROSE,TRIM3#
sub71910-24390¥33,600
main71910-24390-D1i201802-201810
SINGAPORE SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),DK.ROSE,TRIM3#
sub71910-24390¥33,600
main71910-24390-D1i201802-201810
THAILAND SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),DK.ROSE,TRIM3#
sub71910-24390¥33,600
main71910-24390-D1i201802-201810
MALAYSIA SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),DK.ROSE,TRIM3#
sub71910-24390¥33,600
main71910-24390-F0i201510-201802
TOPAZ BROWN,TRIM4#
sub71910-24390¥33,600
main71910-24390-F0i201510-201802
TAIWAN SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),TOPAZ BROWN,TRIM4#
sub71910-24390¥33,600
main71910-24390-F0i201510-201802
PHILIPPINE SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),TOPAZ BROWN,TRIM4#
sub71910-24390¥33,600
main71910-24390-F0i201510-201802
BRAZIL SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),TOPAZ BROWN,TRIM4#
sub71910-24390¥33,600
main71910-24390-F0i201510-201802
CHILE SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),TOPAZ BROWN,TRIM4#
sub71910-24390¥33,600
main71910-24390-F0i201510-201802
MIDDLE & SOUTH AMERICA SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),TOPAZ BROWN,TRIM4#
sub71910-24390¥33,600
main71910-24390-F0i201510-201802
"F SPORT",TOPAZ BROWN,TRIM4#,W(CCC MARK)
sub71910-24390¥33,600
main71910-24390-F0i201510-201802
"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),TOPAZ BROWN,TRIM4#
sub71910-24390¥33,600
main71910-24390-F0i201510-201802
"VERSION L",TOPAZ BROWN,TRIM4#,W(CCC MARK)
sub71910-24390¥33,600
main71910-24390-F0i201510-201802
"VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),TOPAZ BROWN,TRIM4#
sub71910-24390¥33,600
main71910-24390-F0i201609-201802
VIETNAM SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),TOPAZ BROWN,TRIM4#
sub71910-24390¥33,600
main71910-24390-F1i201510-201802
"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),CLOVE,TRIM5#
sub71910-24390¥33,600
main71910-24390-F1i201510-201802
"VERSION L",CLOVE,TRIM5#,W(CCC MARK)
sub71910-24390¥33,600
main71910-24390-F1i201510-201802
CLOVE,TRIM5#
sub71910-24390¥33,600
main71910-24390-F1i201510-201802
"VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),CLOVE,TRIM5#
sub71910-24390¥33,600
main71910-24390-F1i201510-201802
"F SPORT",CLOVE,TRIM5#,W(CCC MARK)
sub71910-24390¥33,600
main71910-24390-F1i201510-201802
MIDDLE & SOUTH AMERICA SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),CLOVE,TRIM5#
sub71910-24390¥33,600
main71910-24390-F1i201510-201802
CHILE SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),CLOVE,TRIM5#
sub71910-24390¥33,600
main71910-24390-F1i201510-201802
BRAZIL SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),CLOVE,TRIM5#
sub71910-24390¥33,600
main71910-24390-F1i201510-201802
PHILIPPINE SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),CLOVE,TRIM5#
sub71910-24390¥33,600
main71910-24390-F1i201510-201802
TAIWAN SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),CLOVE,TRIM5#
sub71910-24390¥33,600
main71910-24390-F1i201609-201802
VIETNAM SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),CLOVE,TRIM5#
sub71910-24390¥33,600
main71910-24390-F2i201802-201810
TOPAZ BROWN,TRIM4#
sub71910-24390¥33,600
main71910-24390-F2i201802-201810
"VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),TOPAZ BROWN,TRIM4#
sub71910-24390¥33,600
main71910-24390-F2i201802-201810
"VERSION L",TOPAZ BROWN,TRIM4#,W(CCC MARK)
sub71910-24390¥33,600
main71910-24390-F2i201802-201810
"F SPORT",TOPAZ BROWN,TRIM4#,W(CCC MARK)
sub71910-24390¥33,600
main71910-24390-F3i201802-201810
"F SPORT",CLOVE,TRIM5#,W(CCC MARK)
sub71910-24390¥33,600
main71910-24390-F3i201802-201810
CLOVE,TRIM5#
sub71910-24390¥33,600
main71910-24390-F3i201802-201810
VIETNAM SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),CLOVE,TRIM5#
sub71910-24390¥33,600
main71910-24390-F3i201802-201810
"VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),CLOVE,TRIM5#
sub71910-24390¥33,600
main71910-24390-F3i201802-201810
"VERSION L",CLOVE,TRIM5#,W(CCC MARK)
sub71910-24390¥33,600
main71910-24390-F3i201802-201810
"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),CLOVE,TRIM5#
sub71910-24390¥33,600
main71910-24390-F3i201802-201810
MIDDLE & SOUTH AMERICA SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),CLOVE,TRIM5#
sub71910-24390¥33,600
main71910-24390-F3i201802-201810
CHILE SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),CLOVE,TRIM5#
sub71910-24390¥33,600
main71910-24390-F3i201802-201810
BRAZIL SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),CLOVE,TRIM5#
sub71910-24390¥33,600
main71910-24390-F3i201802-201810
PHILIPPINE SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),CLOVE,TRIM5#
sub71910-24390¥33,600
main71910-24390-F3i201802-201810
TAIWAN SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),CLOVE,TRIM5#
sub71910-24390¥33,600
main71910-24400-B0i201510-201802
BRUNEI SPEC,MOON STONE,TRIM1#
sub71910-24400¥25,500
main71910-24400-B0i201510-201802
INDONESIA SPEC,MOON STONE,TRIM1#
sub71910-24400¥25,500
main71910-24400-B0i201510-201802
SINGAPORE SPEC,MOON STONE,TRIM1#
sub71910-24400¥25,500
main71910-24400-B0i201510-201802
THAILAND SPEC,MOON STONE,TRIM1#
sub71910-24400¥25,500
main71910-24400-B0i201510-201802
MALAYSIA SPEC,MOON STONE,TRIM1#
sub71910-24400¥25,500
main71910-24400-B0i201510-201802
MOON STONE,TRIM1#,W(CCC MARK)
sub71910-24400¥25,500
main71910-24400-B0i201510-201802
MOON STONE,TRIM1#
sub71910-24400¥25,500
main71910-24400-B1i201802-201810
THAILAND SPEC,MOON STONE,TRIM1#
sub71910-24400¥25,500
main71910-24400-B1i201802-201810
MOON STONE,TRIM1#,W(CCC MARK)
sub71910-24400¥25,500
main71910-24400-B1i201802-201810
MOON STONE,TRIM1#
sub71910-24400¥25,500
main71910-24400-B1i201802-201810
BRUNEI SPEC,MOON STONE,TRIM1#
sub71910-24400¥25,500
main71910-24400-B1i201802-201810
INDONESIA SPEC,MOON STONE,TRIM1#
sub71910-24400¥25,500
main71910-24400-B1i201802-201810
SINGAPORE SPEC,MOON STONE,TRIM1#
sub71910-24400¥25,500
main71910-24400-B1i201802-201810
MALAYSIA SPEC,MOON STONE,TRIM1#
sub71910-24400¥25,500
main71910-24400-C0i201510-201802
BLACK,TRIM2#,W(CCC MARK)
sub71910-24400¥25,500
main71910-24400-C0i201510-201802
THAILAND SPEC,BLACK,TRIM2#
sub71910-24400¥25,500
main71910-24400-C0i201510-201802
MALAYSIA SPEC,BLACK,TRIM2#
sub71910-24400¥25,500
main71910-24400-C0i201510-201802
BLACK,TRIM2#
sub71910-24400¥25,500
main71910-24400-C0i201510-201802
BRUNEI SPEC,BLACK,TRIM2#
sub71910-24400¥25,500
main71910-24400-C0i201510-201802
INDONESIA SPEC,BLACK,TRIM2#
sub71910-24400¥25,500
main71910-24400-C0i201510-201802
SINGAPORE SPEC,BLACK,TRIM2#
sub71910-24400¥25,500
main71910-24400-C1i201802-201810
THAILAND SPEC,BLACK,TRIM2#
sub71910-24400¥25,500
main71910-24400-C1i201802-201810
INDONESIA SPEC,BLACK,TRIM2#
sub71910-24400¥25,500
main71910-24400-C1i201802-201810
SINGAPORE SPEC,BLACK,TRIM2#
sub71910-24400¥25,500
main71910-24400-C1i201802-201810
BLACK,TRIM2#
sub71910-24400¥25,500
main71910-24400-C1i201802-201810
BRUNEI SPEC,BLACK,TRIM2#
sub71910-24400¥25,500
main71910-24400-C1i201802-201810
MALAYSIA SPEC,BLACK,TRIM2#
sub71910-24400¥25,500
main71910-24400-C1i201802-201810
BLACK,TRIM2#,W(CCC MARK)
sub71910-24400¥25,500
main71910-24400-C2i201812-202003
BLACK/LT.GRAY,TRIM2#,W(CCC MARK)
sub71910-24400¥25,500
main71910-24400-D0i201812-202003
DK.ROSE/RED,TRIM3#,W(CCC MARK)
sub71910-24400¥25,500
main71910-24400-E0i201812-202003
OCHER/ROYAL BROWN,TRIM4#,W(CCC MARK)
sub71910-24400¥25,500
main71910-24400-F0i201510-201802
BRUNEI SPEC,TOPAZ BROWN,TRIM4#
sub71910-24400¥25,500
main71910-24400-F0i201510-201802
SINGAPORE SPEC,TOPAZ BROWN,TRIM4#
sub71910-24400¥25,500
main71910-24400-F0i201510-201802
THAILAND SPEC,TOPAZ BROWN,TRIM4#
sub71910-24400¥25,500
main71910-24400-F0i201510-201802
MALAYSIA SPEC,TOPAZ BROWN,TRIM4#
sub71910-24400¥25,500
main71910-24400-F0i201510-201802
TOPAZ BROWN,TRIM4#,W(CCC MARK)
sub71910-24400¥25,500
main71910-24400-F0i201510-201802
TOPAZ BROWN,TRIM4#
sub71910-24400¥25,500
main71910-24400-F0i201510-201802
INDONESIA SPEC,TOPAZ BROWN,TRIM4#
sub71910-24400¥25,500
main71910-24400-F1i201510-201802
SINGAPORE SPEC,CLOVE,TRIM5#
sub71910-24400¥25,500
main71910-24400-F1i201510-201802
INDONESIA SPEC,CLOVE,TRIM5#
sub71910-24400¥25,500
main71910-24400-F1i201510-201802
BRUNEI SPEC,CLOVE,TRIM5#
sub71910-24400¥25,500
main71910-24400-F1i201510-201802
CLOVE,TRIM5#
sub71910-24400¥25,500
main71910-24400-F1i201510-201802
CLOVE,TRIM5#,W(CCC MARK)
sub71910-24400¥25,500
main71910-24400-F1i201510-201802
MALAYSIA SPEC,CLOVE,TRIM5#
sub71910-24400¥25,500
main71910-24400-F1i201510-201802
THAILAND SPEC,CLOVE,TRIM5#
sub71910-24400¥25,500
main71910-24400-F2i201802-201810
THAILAND SPEC,TOPAZ BROWN,TRIM4#
sub71910-24400¥25,500
main71910-24400-F2i201802-201810
TOPAZ BROWN,TRIM4#,W(CCC MARK)
sub71910-24400¥25,500
main71910-24400-F2i201802-201810
TOPAZ BROWN,TRIM4#
sub71910-24400¥25,500
main71910-24400-F2i201802-201810
BRUNEI SPEC,TOPAZ BROWN,TRIM4#
sub71910-24400¥25,500
main71910-24400-F2i201802-201810
INDONESIA SPEC,TOPAZ BROWN,TRIM4#
sub71910-24400¥25,500
main71910-24400-F2i201802-201810
SINGAPORE SPEC,TOPAZ BROWN,TRIM4#
sub71910-24400¥25,500
main71910-24400-F2i201802-201810
MALAYSIA SPEC,TOPAZ BROWN,TRIM4#
sub71910-24400¥25,500
main71910-24400-F3i201802-201810
CLOVE,TRIM5#
sub71910-24400¥25,500
main71910-24400-F3i201802-201810
SINGAPORE SPEC,CLOVE,TRIM5#
sub71910-24400¥25,500
main71910-24400-F3i201802-201810
INDONESIA SPEC,CLOVE,TRIM5#
sub71910-24400¥25,500
main71910-24400-F3i201802-201810
BRUNEI SPEC,CLOVE,TRIM5#
sub71910-24400¥25,500
main71910-24400-F3i201802-201810
CLOVE,TRIM5#,W(CCC MARK)
sub71910-24400¥25,500
main71910-24400-F3i201802-201810
MALAYSIA SPEC,CLOVE,TRIM5#
sub71910-24400¥25,500
main71910-24400-F3i201802-201810
THAILAND SPEC,CLOVE,TRIM5#
sub71910-24400¥25,500
main71910-24400-F4i201812-202003
CLOVE/SADDLE TAN,TRIM5#,W(CCC MARK)
sub71910-24400¥25,500
71931SUPPORT, FRONT SEAT HEADREST
main71930-47020-C0i201510-201710
W(LOCK),BLACK,TRIM2#,4#
sub71930-47020¥1,040
main71930-47020-C0i201409-201710
W(LOCK),BLACK,TRIM2#,3#,4#
sub71930-47020¥1,040
main71930-47020-C4i201810
W(LOCK),"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK,TRIM0#,2#,3#,4#,5#
sub71930-47020¥1,040
main71930-47020-C4i201710-201810
W(LOCK),BLACK,TRIM2#,3#,4#
sub71930-47020¥1,040
main71930-47020-C4i201710-201810
W(LOCK),BLACK,TRIM2#,4#
sub71930-47020¥1,040
main71930-47020-C4i201711-201810
W(LOCK),BLACK,TRIM2#,3#
sub71930-47020¥1,040
main71930-47020-C4i201810-202111
W(LOCK),BLACK,TRIM2#,3#,4#,5#
sub71930-47020¥1,040
main71930-47020-C4i201810-202209
W(LOCK),BLACK,TRIM0#,2#,3#,4#,5#
sub71930-47020¥1,040
main71930-47020-C4i201810
W(LOCK),"VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK,TRIM0#,2#,3#,4#,5#
sub71930-47020¥1,040
main71930-47020-F1i201409-201810
W(LOCK),CLOVE,TRIM5#
sub71930-47020¥1,040
main71930-47020-P0i201409-201810
W(LOCK),MOON STONE,TRIM1#
sub71930-47020¥1,040
main71931-47020-C0i201409-201710
W/O(LOCK),BLACK,TRIM2#,3#,4#
sub71931-47020¥630
main71931-47020-C0i201510-201710
W/O(LOCK),BLACK,TRIM2#,4#
sub71931-47020¥630
main71931-47020-C4i201810-202111
W/O(LOCK),BLACK,TRIM2#,3#,4#,5#
sub71931-47020¥630
main71931-47020-C4i201810
W/O(LOCK),"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK,TRIM0#,2#,3#,4#,5#
sub71931-47020¥630
main71931-47020-C4i201810
W/O(LOCK),"VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE),BLACK,TRIM0#,2#,3#,4#,5#
sub71931-47020¥630
main71931-47020-C4i201810-202209
W/O(LOCK),BLACK,TRIM0#,2#,3#,4#,5#
sub71931-47020¥630
main71931-47020-C4i201711-201810
W/O(LOCK),BLACK,TRIM2#,3#
sub71931-47020¥630
main71931-47020-C4i201710-201810
W/O(LOCK),BLACK,TRIM2#,4#
sub71931-47020¥630
main71931-47020-C4i201710-201810
W/O(LOCK),BLACK,TRIM2#,3#,4#
sub71931-47020¥630
main71931-47020-F1i201409-201810
W/O(LOCK),CLOVE,TRIM5#
sub71931-47020¥630
main71931-47020-P0i201409-201810
W/O(LOCK),MOON STONE,TRIM1#
sub71931-47020¥630
72054ALEVER SUB-ASSY, RECLINING REMOTE CONTROL, LH
main72054-24020-C0i201409-201810
BLACK,TRIM1#,2#,3#,4#,5#
main72054-24020-C0i201810-202501
BLACK,TRIM0#,2#,3#,4#,5#
main72054-24020-C0i201409-201510
BLACK,TRIM0#,1#,2#,3#,4#,5#
main72054-24020-D0i202501
RED,TRIM38
72360CABLE ASSY, RECLINING ADJUSTER EQUALIZING
main72360-24010i¥1,710201409-202209
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72750-76010i¥18,400201409-201810
73920AAIRBAG ASSY, FRONT SEAT, LH
main73920-53030i¥20,000201409-202209
82711FCLAMP, WIRING HARNESS
main82711-12120i¥190201409-202209
82711GCLAMP, WIRING HARNESS
main82711-34310i¥220201409-202209
85867BLOWER, SEATBACK CLIMATE CONTROL, RH
main85867-24010i¥0201711-201810
MIDDLE & SOUTH AMERICA SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)
main85867-24010i¥0201711-201810
TAIWAN SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)
main85867-24010i¥0201711-201810
PHILIPPINE SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)
main85867-24010i¥0201711-201810
BRAZIL SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)
main85867-24010i¥0201711-201810
CHILE SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)
main85867-24010i¥0201711-201810
"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)
main85867-24010i¥0201711-201810
"VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)
main85867-24010i¥0201711-201810
VIETNAM SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)
main85867-24010i¥0201810-202209
main85867-78010i201510-201710
BRAZIL SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)
main85867-78010i201409-201710
TAIWAN SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)
main85867-78010i201409-201710
"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)
main85867-78010i201409-201710
"VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)
main85867-78010i201510-201608
main85867-78010i201510-201710
PHILIPPINE SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)
main85867-78010i201510-201710
CHILE SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)
main85867-78010i201510-201710
MIDDLE & SOUTH AMERICA SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)
85867ABLOWER, SEATBACK CLIMATE CONTROL, LH
main85867-24020i¥0201711-201810
"VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)
main85867-24020i¥0201711-201810
"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)
main85867-24020i¥0201810-202209
main85867-24020i¥0201711-201810
MIDDLE & SOUTH AMERICA SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)
main85867-24020i¥0201711-201810
VIETNAM SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)
main85867-24020i¥0201711-201810
CHILE SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)
main85867-24020i¥0201711-201810
BRAZIL SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)
main85867-24020i¥0201711-201810
PHILIPPINE SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)
main85867-24020i¥0201711-201810
TAIWAN SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)
main85867-78020i201510-201710
MIDDLE & SOUTH AMERICA SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)
main85867-78020i201409-201710
TAIWAN SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)
main85867-78020i201409-201710
"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)
main85867-78020i201409-201710
"VERSION L"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)
main85867-78020i201510-201608
main85867-78020i201510-201710
PHILIPPINE SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)
main85867-78020i201510-201710
BRAZIL SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)
main85867-78020i201510-201710
CHILE SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)
9010510301
main90105-10301¥110
9016740044
main90167-40044¥70
9324915006
main93249-15006¥120
9356054014
main93560-54014¥60
9417060600
main94170-60600¥60
9418560600
main94185-60600¥70

33 parts on this diagram · 5 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
