EPC Data

LOCK CYLINDER SET

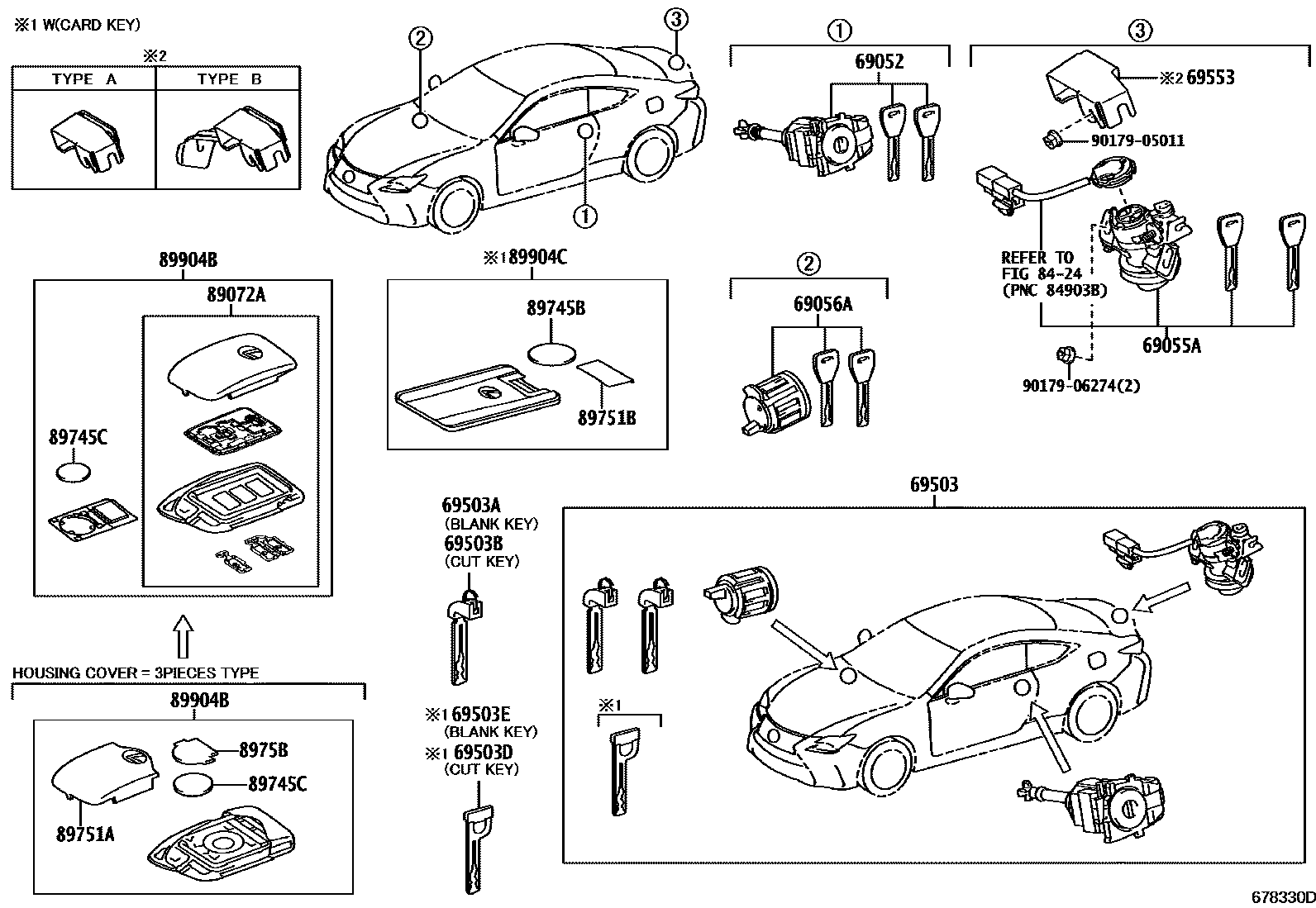

Parts diagram
69052CYLINDER & KEY SET, DOOR LOCK, LH
main69052-24080i201409-201412
sub69052-24081
main69052-24081i201501-202009
main69052-24091i201510-202003
69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
main69055-30480i201409-201711
main69055-33540i201711-202209
69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
main69056-50160i201409-202209
69503CYLINDER SET, LOCK
main69005-24360i201409-201412
sub69005-24361
main69005-24361i201501-201710
sub69005-24461
main69005-24371i201510-201710
sub69005-24471
main69005-24440i201409-201412
sub69005-24441
main69005-24441i201501-201710
sub69005-24481
main69005-24460i201409-201412
SMART KEY(CARD TYPE)-WITH
sub69005-24461
main69005-24461i201501-201710
SMART KEY(CARD TYPE)-WITH
main69005-24471i201510-201710
SMART KEY(CARD TYPE)-WITH
main69005-24480i201409-201412
SMART KEY(CARD TYPE)-WITH
sub69005-24481
main69005-24481i201501-201710
SMART KEY(CARD TYPE)-WITH
main69005-24520i201711-202209
main69005-24530i201711-202003
main69005-24540i201711-201810
main69005-24560i201711-202209
SMART KEY(CARD TYPE)-WITH
main69005-24570i201711-202003
SMART KEY(CARD TYPE)-WITH
main69005-24580i201711-201810
SMART KEY(CARD TYPE)-WITH
69503AKEY, BLANK
main69515-30380i201409-202209
MASTER KEY,W(*68)
69503BKEY, CUT
main69515-30370i201409-202209
MASTER KEY,W(*68)
69503DKEY, CUT(CARD KEY)
main69515-30330i201409-202209
MASTER KEY,SMART KEY(CARD TYPE)-WITH
69503EKEY, BLANK(CARD KEY)
main69515-30350i201409-202209
MASTER KEY
69553PROTECTOR, LUGGAGE COMPARTMENT KEY CYLINDER
main69553-30010i201810-201911
THAILAND SPEC,TYPE A:REFER ILLUST.
main69553-30010i201810-201911
SINGAPORE SPEC,TYPE A:REFER ILLUST.
main69553-30010i201810-201911
BRUNEI SPEC,TYPE A:REFER ILLUST.
main69553-30010i201810-201911
HONG KONG SPEC,TYPE A:REFER ILLUST.
main69553-30010i201810-201911
MALAYSIA SPEC,TYPE A:REFER ILLUST.
main69553-30010i201409-201810
main69553-30010i201810-202009
MACAU SPEC,TYPE A:REFER ILLUST.
main69553-30010i201810-202111
TYPE A:REFER ILLUST.
main69553-30021i201810-202111
CHILE SPEC,TYPE B:REFER ILLUST.
main69553-30021i201810-202111
ARGENTINA SPEC,TYPE B:REFER ILLUST.
main69553-30021i201810-202111
MIDDLE & SOUTH AMERICA SPEC,TYPE B:REFER ILLUST.
main69553-30021i201810-202009
TAIWAN SPEC,TYPE B:REFER ILLUST.
main69553-30021i201911-202009
VIETNAM SPEC,TYPE B:REFER ILLUST.
main69553-30021i201810-202209
TYPE B:REFER ILLUST.
main69553-30021i201911-202111
PHILIPPINE SPEC,TYPE B:REFER ILLUST.
8424
89072AHOUSING SET, DOOR CONTROL TRANSMITTER
main89072-30302i201409-201510
HONG KONG SPEC&SMART KEY(CARD TYPE)-WITH
main89072-30302i201409-201510
HONG KONG SPEC
main89072-30530i201810-202009
MIDDLE & SOUTH AMERICA SPEC&SMART KEY(CARD TYPE)-WITH&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ, WITH(AUTO LOCATION))
main89072-30530i201810-202009
MIDDLE & SOUTH AMERICA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ, WITH(AUTOLOCATION))
main89072-30660i201510-201911
HONG KONG SPEC&SMART KEY(CARD TYPE)-WITH
main89072-30660i201510-201911
HONG KONG SPEC
main89072-30660i202009-202111
CHILE SPEC
main89072-30660i202009-202111
CHILE SPEC&SMART KEY(CARD TYPE)-WITH
main89072-30720i201510-201608
main89072-53470i201409-201510
CHILE SPEC
main89072-53470i201409-201510
TAIWAN SPEC&SMART KEY(CARD TYPE)-WITH
main89072-53470i201409-201510
TAIWAN SPEC
main89072-53470i201409-201510
CHILE SPEC&SMART KEY(CARD TYPE)-WITH
main89072-53510i201510-201608
MACAU SPEC&SMART KEY(CARD TYPE)-WITH
sub89072-53511
main89072-53510i201510-201608
MACAU SPEC
sub89072-53511
main89072-53550i201409-201510
sub89072-53551
main89072-53560i201510-202003
main89072-53570i201510-202009
TAIWAN SPEC
main89072-53570i201510-202009
THAILAND SPEC&SMART KEY(CARD TYPE)-WITH
main89072-53570i201510-202009
THAILAND SPEC
main89072-53570i201810-202009
MACAU SPEC&SMART KEY(CARD TYPE)-WITH
main89072-53570i201810-202009
MACAU SPEC
main89072-53570i201810-202009
CHILE SPEC&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ)
main89072-53570i201810-202009
CHILE SPEC&SMART KEY(CARD TYPE)-WITH&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ)
main89072-53570i201810-202009
TAIWAN SPEC&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ, WITH(AUTO LOCATION))
main89072-53570i201810-202009
TAIWAN SPEC&SMART KEY(CARD TYPE)-WITH&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ,WITH(AUTO LOCATION))
main89072-53570i201510-202009
TAIWAN SPEC&SMART KEY(CARD TYPE)-WITH
main89072-53570i201510-201810
CHILE SPEC&SMART KEY(CARD TYPE)-WITH
main89072-53570i201510-201810
CHILE SPEC
main89072-53580i201510-201810
main89072-53590i201510-201612
BRAZIL SPEC
sub89072-53591
main89072-53590i201510-201612
BRAZIL SPEC&SMART KEY(CARD TYPE)-WITH
sub89072-53591
main89072-53591i201810-202009
main89072-53591i201701-201810
BRAZIL SPEC
main89072-53591i201701-201810
BRAZIL SPEC&SMART KEY(CARD TYPE)-WITH
89745BBATTERY, TRANSMITTER(CARD KEY)
main89745-50030i201409-201911
CR2412,HONG KONG SPEC&SMART KEY(CARD TYPE)-WITH
main89745-50030i201409-202111
CR2412,SOUTH AFRICA SPEC&SMART KEY(CARD TYPE)-WITH
main89745-50030i201409-202111
CR2412,BRUNEI SPEC&SMART KEY(CARD TYPE)-WITH
main89745-50030i201510-201810
CR2412,INDONESIA SPEC&SMART KEY(CARD TYPE)-WITH
main89745-50030i201409-202111
CR2412,SINGAPORE SPEC&SMART KEY(CARD TYPE)-WITH
main89745-50030i201510-202111
CR2412,THAILAND SPEC&SMART KEY(CARD TYPE)-WITH
main89745-50030i201409-202111
CR2412,MALAYSIA SPEC&SMART KEY(CARD TYPE)-WITH
main89745-50030i201409-202310
CR2412,JORDAN SPEC&SMART KEY(CARD TYPE)-WITH
main89745-50030i201409-202009
CR2412,TAIWAN SPEC&SMART KEY(CARD TYPE)-WITH
main89745-50030i201510-201810
CR2412,BRAZIL SPEC&SMART KEY(CARD TYPE)-WITH
main89745-50030i201409-202111
CR2412,CHILE SPEC&SMART KEY(CARD TYPE)-WITH
main89745-50030i201409-202009
CR2412,LEBANON SPEC&SMART KEY(CARD TYPE)-WITH
main89745-50030i201409-202209
CR2412,SMART KEY(CARD TYPE)-WITH
main89745-50030i201810-202009
CR2412,TAIWAN SPEC&SMART KEY(CARD TYPE)-WITH&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ, WITH(AUTO LOCATION))
main89745-50030i201810-202009
CR2412,CHILE SPEC&SMART KEY(CARD TYPE)-WITH&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ)
main89745-50030i201810-202009
CR2412,MIDDLE & SOUTH AMERICA SPEC&SMART KEY(CARD TYPE)-WITH&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ, WITH(AUTO LOCATION))
main89745-50030i201510-202009
CR2412,MACAU SPEC&SMART KEY(CARD TYPE)-WITH
89745CBATTERY, TRANSMITTER
main89745-45010i201409-202009
CR2032
sub89745-50020
main89745-45010i201409-202009
CR2032,TAIWAN SPEC
sub89745-50020
main89745-45010i201409-202009
CR2032,TAIWAN SPEC&SMART KEY(CARD TYPE)-WITH
sub89745-50020
main89745-45010i201409-201810
CR2032,CHILE SPEC
sub89745-50020
main89745-45010i201409-201810
CR2032,CHILE SPEC&SMART KEY(CARD TYPE)-WITH
sub89745-50020
main89745-45010i201810-202009
CR2032,MIDDLE & SOUTH AMERICA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ, WITH(AUTO LOCATION))
sub89745-50020
main89745-45010i201810-202009
CR2032,MIDDLE & SOUTH AMERICA SPEC&SMART KEY(CARD TYPE)-WITH&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ, WITH(AUTO LOCATION))
sub89745-50020
main89745-45010i201810-202009
CR2032,CHILE SPEC&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ)
sub89745-50020
main89745-45010i201810-202009
CR2032,CHILE SPEC&SMART KEY(CARD TYPE)-WITH&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ)
sub89745-50020
main89745-45010i201810-202009
CR2032,TAIWAN SPEC&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ, WITH(AUTO LOCATION))
sub89745-50020
main89745-45010i201810-202009
CR2032,TAIWAN SPEC&SMART KEY(CARD TYPE)-WITH&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ, WITH(AUTO LOCATION))
sub89745-50020
main89745-45010i201510-201810
CR2032,BRAZIL SPEC&SMART KEY(CARD TYPE)-WITH
sub89745-50020
main89745-45010i201510-201810
CR2032,BRAZIL SPEC
sub89745-50020
main89745-50020i201409-202009
CR2032,SINGAPORE SPEC
main89745-50020i201409-202209
CR2032
main89745-50020i201409-202009
CR2032,SOUTH AFRICA SPEC
main89745-50020i201409-202009
CR2032,SOUTH AFRICA SPEC&SMART KEY(CARD TYPE)-WITH
main89745-50020i201409-202009
CR2032,BRUNEI SPEC
main89745-50020i201409-202009
CR2032,BRUNEI SPEC&SMART KEY(CARD TYPE)-WITH
main89745-50020i201409-202009
CR2032,SINGAPORE SPEC&SMART KEY(CARD TYPE)-WITH
main89745-50020i201409-202009
CR2032,MALAYSIA SPEC
main89745-50020i201409-202009
CR2032,MALAYSIA SPEC&SMART KEY(CARD TYPE)-WITH
main89745-50020i201510-201810
CR2032,INDONESIA SPEC
main89745-50020i201510-201810
CR2032,INDONESIA SPEC&SMART KEY(CARD TYPE)-WITH
89751ACOVER, TRANSMITTER HOUSING
main89751-48290i201810-202209
main89751-48290i201510-202111
BRUNEI SPEC
main89751-48290i201510-202111
BRUNEI SPEC&SMART KEY(CARD TYPE)-WITH
main89751-48290i201510-202111
SINGAPORE SPEC
main89751-48290i201510-202111
SINGAPORE SPEC&SMART KEY(CARD TYPE)-WITH
main89751-48290i201510-202111
MALAYSIA SPEC
main89751-48290i201510-202111
MALAYSIA SPEC&SMART KEY(CARD TYPE)-WITH
main89751-48290i201510-202111
SOUTH AFRICA SPEC
main89751-48290i201510-202111
SOUTH AFRICA SPEC&SMART KEY(CARD TYPE)-WITH
main89751-48290i202009-202111
THAILAND SPEC
main89751-48290i202009-202111
THAILAND SPEC&SMART KEY(CARD TYPE)-WITH
main89751-48290i201510-201810
INDONESIA SPEC
main89751-48290i201510-201810
INDONESIA SPEC&SMART KEY(CARD TYPE)-WITH
main89751-53080i201409-201510
MALAYSIA SPEC&SMART KEY(CARD TYPE)-WITH
main89751-53080i201409-201510
MALAYSIA SPEC
main89751-53101i201409-201510
BRUNEI SPEC&SMART KEY(CARD TYPE)-WITH
sub89751-53102
main89751-53101i201409-201510
SINGAPORE SPEC
sub89751-53102
main89751-53101i201409-201510
SINGAPORE SPEC&SMART KEY(CARD TYPE)-WITH
sub89751-53102
main89751-53101i201409-201510
LEBANON SPEC
sub89751-53102
main89751-53101i201409-201510
LEBANON SPEC&SMART KEY(CARD TYPE)-WITH
sub89751-53102
main89751-53101i201409-201510
BRUNEI SPEC
sub89751-53102
main89751-53120i201409-201510
SOUTH AFRICA SPEC
main89751-53120i201409-201510
SOUTH AFRICA SPEC&SMART KEY(CARD TYPE)-WITH
main89751-53150i201409-201510
89751BCOVER, TRANSMITTER HOUSING
main8975B-50020i201409-202009
SMART KEY(CARD TYPE)-WITH
main8975B-50020i201409-201911
HONG KONG SPEC&SMART KEY(CARD TYPE)-WITH
main8975B-50020i201409-202009
SOUTH AFRICA SPEC&SMART KEY(CARD TYPE)-WITH
main8975B-50020i201409-202009
BRUNEI SPEC&SMART KEY(CARD TYPE)-WITH
main8975B-50020i201409-202009
SINGAPORE SPEC&SMART KEY(CARD TYPE)-WITH
main8975B-50020i201409-202009
MALAYSIA SPEC&SMART KEY(CARD TYPE)-WITH
main8975B-50020i201409-202009
JORDAN SPEC&SMART KEY(CARD TYPE)-WITH
main8975B-50020i201409-202009
TAIWAN SPEC&SMART KEY(CARD TYPE)-WITH
main8975B-50020i201409-201810
CHILE SPEC&SMART KEY(CARD TYPE)-WITH
main8975B-50020i201409-202009
LEBANON SPEC&SMART KEY(CARD TYPE)-WITH
main8975B-50020i201510-202009
MACAU SPEC&SMART KEY(CARD TYPE)-WITH
main8975B-50020i201510-201810
INDONESIA SPEC&SMART KEY(CARD TYPE)-WITH
main8975B-50020i201510-202009
THAILAND SPEC&SMART KEY(CARD TYPE)-WITH
main8975B-50020i201510-201810
BRAZIL SPEC&SMART KEY(CARD TYPE)-WITH
main8975B-50020i201810-202009
TAIWAN SPEC&SMART KEY(CARD TYPE)-WITH&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ,WITH(AUTO LOCATION))
main8975B-50020i201810-202009
CHILE SPEC&SMART KEY(CARD TYPE)-WITH&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ)
main8975B-50020i201810-202009
MIDDLE & SOUTH AMERICA SPEC&SMART KEY(CARD TYPE)-WITH&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ, WITH(AUTO LOCATION))
main8975B-50030i202009-202111
SINGAPORE SPEC&SMART KEY(CARD TYPE)-WITH
main8975B-50030i202009-202111
BRUNEI SPEC&SMART KEY(CARD TYPE)-WITH
main8975B-50030i202009-202111
SOUTH AFRICA SPEC&SMART KEY(CARD TYPE)-WITH
main8975B-50030i202009-202111
CHILE SPEC&SMART KEY(CARD TYPE)-WITH
main8975B-50030i202009-202111
MALAYSIA SPEC&SMART KEY(CARD TYPE)-WITH
main8975B-50030i202009-202111
THAILAND SPEC&SMART KEY(CARD TYPE)-WITH
main8975B-50030i202009-202209
SMART KEY(CARD TYPE)-WITH
main8975B-50030i202009-202310
JORDAN SPEC&SMART KEY(CARD TYPE)-WITH
8975BCOVER, TRANSMITTER BATTERY HOUSING
main8975B-33010i201409-202111
SINGAPORE SPEC
main8975B-33010i201409-202111
SINGAPORE SPEC&SMART KEY(CARD TYPE)-WITH
main8975B-33010i201409-202111
MALAYSIA SPEC
main8975B-33010i201409-202111
MALAYSIA SPEC&SMART KEY(CARD TYPE)-WITH
main8975B-33010i201409-202111
SOUTH AFRICA SPEC
main8975B-33010i201409-202111
SOUTH AFRICA SPEC&SMART KEY(CARD TYPE)-WITH
main8975B-33010i201409-202111
BRUNEI SPEC
main8975B-33010i201409-202111
BRUNEI SPEC&SMART KEY(CARD TYPE)-WITH
main8975B-33010i201510-201810
INDONESIA SPEC
main8975B-33010i201510-201810
INDONESIA SPEC&SMART KEY(CARD TYPE)-WITH
main8975B-33010i202009-202111
THAILAND SPEC
main8975B-33010i202009-202111
THAILAND SPEC&SMART KEY(CARD TYPE)-WITH
main8975B-33010i201810-202209
89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY
main89904-53610i201810-202009
MIDDLE & SOUTH AMERICA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ, WITH(AUTOLOCATION))
main89904-53610i201810-202009
MIDDLE & SOUTH AMERICA SPEC&SMART KEY(CARD TYPE)-WITH&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ, WITH(AUTO LOCATION))
main89904-53701i201409-201510
TAIWAN SPEC
main89904-53701i201409-201510
TAIWAN SPEC&SMART KEY(CARD TYPE)-WITH
main89904-53701i201409-201510
CHILE SPEC
main89904-53701i201409-201510
CHILE SPEC&SMART KEY(CARD TYPE)-WITH
main89904-53721i201409-201510
HONG KONG SPEC
main89904-53721i201409-201510
HONG KONG SPEC&SMART KEY(CARD TYPE)-WITH
main89904-53740i201510-201608
MACAU SPEC&SMART KEY(CARD TYPE)-WITH
sub89904-53741
main89904-53740i201510-201608
MACAU SPEC
sub89904-53741
main89904-53751i201409-201510
MALAYSIA SPEC&SMART KEY(CARD TYPE)-WITH
main89904-53751i201409-201510
MALAYSIA SPEC
main89904-53772i201409-201510
SINGAPORE SPEC
sub89904-53773
main89904-53772i201409-201510
SINGAPORE SPEC&SMART KEY(CARD TYPE)-WITH
sub89904-53773
main89904-53772i201409-201510
LEBANON SPEC
sub89904-53773
main89904-53772i201409-201510
LEBANON SPEC&SMART KEY(CARD TYPE)-WITH
sub89904-53773
main89904-53772i201409-201510
BRUNEI SPEC
sub89904-53773
main89904-53772i201409-201510
BRUNEI SPEC&SMART KEY(CARD TYPE)-WITH
sub89904-53773
main89904-53791i201409-201510
SOUTH AFRICA SPEC
main89904-53791i201409-201510
SOUTH AFRICA SPEC&SMART KEY(CARD TYPE)-WITH
main89904-53811i201409-201510
JORDAN SPEC&SMART KEY(CARD TYPE)-WITH
main89904-53811i201409-201510
JORDAN SPEC
main89904-53831i201409-201510
main89904-53891i201409-201510
sub89904-53892
main89904-53A20i201510-202003
main89904-53A30i201510-202009
TAIWAN SPEC&SMART KEY(CARD TYPE)-WITH
main89904-53A30i201810-202009
TAIWAN SPEC&SMART KEY(CARD TYPE)-WITH&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ,WITH(AUTO LOCATION))
main89904-53A30i201810-202009
TAIWAN SPEC&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ, WITH(AUTO LOCATION))
main89904-53A30i201810-202009
CHILE SPEC&SMART KEY(CARD TYPE)-WITH&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ)
main89904-53A30i201810-202009
CHILE SPEC&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ)
main89904-53A30i201810-202009
MACAU SPEC
main89904-53A30i201810-202009
MACAU SPEC&SMART KEY(CARD TYPE)-WITH
main89904-53A30i201510-202009
THAILAND SPEC
main89904-53A30i201510-202009
THAILAND SPEC&SMART KEY(CARD TYPE)-WITH
main89904-53A30i201510-202009
TAIWAN SPEC
main89904-53A30i201510-201810
CHILE SPEC
main89904-53A30i201510-201810
CHILE SPEC&SMART KEY(CARD TYPE)-WITH
main89904-53A40i201510-201810
main89904-53A50i201510-201911
HONG KONG SPEC
main89904-53A50i201510-201911
HONG KONG SPEC&SMART KEY(CARD TYPE)-WITH
main89904-53A60i201510-201608
main89904-53A70i201510-202009
MALAYSIA SPEC
main89904-53A70i201510-202009
MALAYSIA SPEC&SMART KEY(CARD TYPE)-WITH
main89904-53A90i201510-201901
SINGAPORE SPEC
sub89904-53A91
main89904-53A90i201510-201901
BRUNEI SPEC
sub89904-53A91
main89904-53A90i201510-201901
BRUNEI SPEC&SMART KEY(CARD TYPE)-WITH
sub89904-53A91
main89904-53A90i201510-201901
SINGAPORE SPEC&SMART KEY(CARD TYPE)-WITH
sub89904-53A91
main89904-53A90i201510-201901
SOUTH AFRICA SPEC
sub89904-53A91
main89904-53A90i201510-201901
SOUTH AFRICA SPEC&SMART KEY(CARD TYPE)-WITH
sub89904-53A91
main89904-53A90i201510-201810
INDONESIA SPEC
sub89904-53A91
main89904-53A90i201510-201810
INDONESIA SPEC&SMART KEY(CARD TYPE)-WITH
sub89904-53A91
main89904-53A90i201510-201901
LEBANON SPEC
sub89904-53A91
main89904-53A90i201510-201901
LEBANON SPEC&SMART KEY(CARD TYPE)-WITH
sub89904-53A91
main89904-53A91i201902-202009
LEBANON SPEC&SMART KEY(CARD TYPE)-WITH
main89904-53A91i201902-202009
SOUTH AFRICA SPEC
main89904-53A91i201902-202009
SOUTH AFRICA SPEC&SMART KEY(CARD TYPE)-WITH
main89904-53A91i201902-202009
BRUNEI SPEC
main89904-53A91i201902-202009
BRUNEI SPEC&SMART KEY(CARD TYPE)-WITH
main89904-53A91i201902-202009
SINGAPORE SPEC
main89904-53A91i201902-202009
SINGAPORE SPEC&SMART KEY(CARD TYPE)-WITH
main89904-53A91i201902-202009
LEBANON SPEC
main89904-53B30i201510-202009
JORDAN SPEC&SMART KEY(CARD TYPE)-WITH
main89904-53B30i201510-202009
JORDAN SPEC
main89904-53B50i201510-202009
main89904-53B60i201510-201612
BRAZIL SPEC&SMART KEY(CARD TYPE)-WITH
sub89904-53B61
main89904-53B60i201510-201612
BRAZIL SPEC
sub89904-53B61
main89904-53B61i201701-201810
BRAZIL SPEC
main89904-53B61i201701-201810
BRAZIL SPEC&SMART KEY(CARD TYPE)-WITH
main89904-53B61i201810-202009
main89904-53E80i202009-202111
CHILE SPEC
main89904-53E80i202009-202111
CHILE SPEC&SMART KEY(CARD TYPE)-WITH
main89904-53F40i202009-202111
THAILAND SPEC
main89904-53F40i202009-202111
SOUTH AFRICA SPEC&SMART KEY(CARD TYPE)-WITH
main89904-53F40i202009-202111
BRUNEI SPEC
main89904-53F40i202009-202111
BRUNEI SPEC&SMART KEY(CARD TYPE)-WITH
main89904-53F40i202009-202111
SINGAPORE SPEC
main89904-53F40i202009-202111
SINGAPORE SPEC&SMART KEY(CARD TYPE)-WITH
main89904-53F40i202009-202111
THAILAND SPEC&SMART KEY(CARD TYPE)-WITH
main89904-53F40i202009-202111
SOUTH AFRICA SPEC
main89904-53F40i202009-202209
main89904-53F80i202009-202310
JORDAN SPEC&SMART KEY(CARD TYPE)-WITH
main89904-53F80i202009-202310
JORDAN SPEC
main89904-53G80i202009-202111
MALAYSIA SPEC
main89904-53G80i202009-202111
MALAYSIA SPEC&SMART KEY(CARD TYPE)-WITH
89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)
main89904-48X70i202009-202111
SMART KEY(CARD TYPE)-WITH
sub89904-48X71
main89904-48X70i202009-202111
CHILE SPEC&SMART KEY(CARD TYPE)-WITH
sub89904-48X71
main89904-48Y30i202009-202111
BRUNEI SPEC&SMART KEY(CARD TYPE)-WITH
sub89904-48Y31
main89904-48Y30i202009-202111
SINGAPORE SPEC&SMART KEY(CARD TYPE)-WITH
sub89904-48Y31
main89904-48Y30i202009-202111
SOUTH AFRICA SPEC&SMART KEY(CARD TYPE)-WITH
sub89904-48Y31
main89904-48Y30i202009-202111
MALAYSIA SPEC&SMART KEY(CARD TYPE)-WITH
sub89904-48Y31
main89904-48Y30i202009-202111
THAILAND SPEC&SMART KEY(CARD TYPE)-WITH
sub89904-48Y31
main89904-48Y30i202009-202207
SMART KEY(CARD TYPE)-WITH
sub89904-48Y31
main89904-48Y31i202208-202302
SMART KEY(CARD TYPE)-WITH
sub89904-48Y32
main89904-48Y32i202303-202310
SMART KEY(CARD TYPE)-WITH
sub89904-48Y33
main89904-48Y33i202311
SMART KEY(CARD TYPE)-WITH
main89904-48Y50i202009-202310
JORDAN SPEC&SMART KEY(CARD TYPE)-WITH
main89904-53511i201510-201806
BRAZIL SPEC&SMART KEY(CARD TYPE)-WITH
sub89904-53512
main89904-53511i201409-201806
SMART KEY(CARD TYPE)-WITH
sub89904-53512
main89904-53512i201807-202009
SMART KEY(CARD TYPE)-WITH
main89904-53512i201810-202009
MIDDLE & SOUTH AMERICA SPEC&SMART KEY(CARD TYPE)-WITH&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ, WITH(AUTO LOCATION))
main89904-53512i201807-201810
BRAZIL SPEC&SMART KEY(CARD TYPE)-WITH
main89904-53521i201510-201608
MACAU SPEC&SMART KEY(CARD TYPE)-WITH
sub89904-53522
main89904-53551i201510-202003
SMART KEY(CARD TYPE)-WITH
main89904-53561i201810-202009
MACAU SPEC&SMART KEY(CARD TYPE)-WITH
main89904-53561i201409-202009
TAIWAN SPEC&SMART KEY(CARD TYPE)-WITH
main89904-53561i201409-201810
CHILE SPEC&SMART KEY(CARD TYPE)-WITH
main89904-53561i201510-202009
THAILAND SPEC&SMART KEY(CARD TYPE)-WITH
main89904-53561i201810-202009
TAIWAN SPEC&SMART KEY(CARD TYPE)-WITH&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ,WITH(AUTO LOCATION))
main89904-53561i201810-202009
CHILE SPEC&SMART KEY(CARD TYPE)-WITH&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ)
main89904-53571i201510-201810
SMART KEY(CARD TYPE)-WITH
main89904-53581i201510-201608
SMART KEY(CARD TYPE)-WITH
main89904-53591i201409-201706
SOUTH AFRICA SPEC&SMART KEY(CARD TYPE)-WITH
main89904-53591i201409-201706
BRUNEI SPEC&SMART KEY(CARD TYPE)-WITH
main89904-53591i201510-201706
INDONESIA SPEC&SMART KEY(CARD TYPE)-WITH
main89904-53591i201409-201706
SINGAPORE SPEC&SMART KEY(CARD TYPE)-WITH
main89904-53591i201409-201706
MALAYSIA SPEC&SMART KEY(CARD TYPE)-WITH
main89904-53591i201409-201706
LEBANON SPEC&SMART KEY(CARD TYPE)-WITH
main89904-53591i201409-201706
SMART KEY(CARD TYPE)-WITH
main89904-53592i201707-201811
SOUTH AFRICA SPEC&SMART KEY(CARD TYPE)-WITH
main89904-53592i201707-201811
SINGAPORE SPEC&SMART KEY(CARD TYPE)-WITH
main89904-53592i201707-201811
MALAYSIA SPEC&SMART KEY(CARD TYPE)-WITH
main89904-53592i201707-201811
LEBANON SPEC&SMART KEY(CARD TYPE)-WITH
main89904-53592i201707-201811
SMART KEY(CARD TYPE)-WITH
main89904-53592i201707-201811
BRUNEI SPEC&SMART KEY(CARD TYPE)-WITH
main89904-53592i201707-201810
INDONESIA SPEC&SMART KEY(CARD TYPE)-WITH
main89904-53593i201812-202007
SMART KEY(CARD TYPE)-WITH
sub89904-53594
main89904-53593i201812-202007
MALAYSIA SPEC&SMART KEY(CARD TYPE)-WITH
sub89904-53594
main89904-53593i201812-202007
SINGAPORE SPEC&SMART KEY(CARD TYPE)-WITH
sub89904-53594
main89904-53593i201812-202007
BRUNEI SPEC&SMART KEY(CARD TYPE)-WITH
sub89904-53594
main89904-53593i201812-202007
SOUTH AFRICA SPEC&SMART KEY(CARD TYPE)-WITH
sub89904-53594
main89904-53593i201812-202007
LEBANON SPEC&SMART KEY(CARD TYPE)-WITH
sub89904-53594
main89904-53594i202007-202009
SMART KEY(CARD TYPE)-WITH
sub89904-53595
main89904-53594i202007-202009
MALAYSIA SPEC&SMART KEY(CARD TYPE)-WITH
sub89904-53595
main89904-53594i202007-202009
LEBANON SPEC&SMART KEY(CARD TYPE)-WITH
sub89904-53595
main89904-53594i202007-202009
SOUTH AFRICA SPEC&SMART KEY(CARD TYPE)-WITH
sub89904-53595
main89904-53594i202007-202009
BRUNEI SPEC&SMART KEY(CARD TYPE)-WITH
sub89904-53595
main89904-53594i202007-202009
SINGAPORE SPEC&SMART KEY(CARD TYPE)-WITH
sub89904-53595
main89904-53621i201409-202009
JORDAN SPEC&SMART KEY(CARD TYPE)-WITH
main89904-53631i201409-202009
SMART KEY(CARD TYPE)-WITH
main89904-53641i201409-201911
HONG KONG SPEC&SMART KEY(CARD TYPE)-WITH
9017905011
main90179-05011
9017906274
main90179-06274

20 parts on this diagram · 2 diagrams in section

LOCK CYLINDER SET — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
