FRONT DOOR LOCK & HANDLE

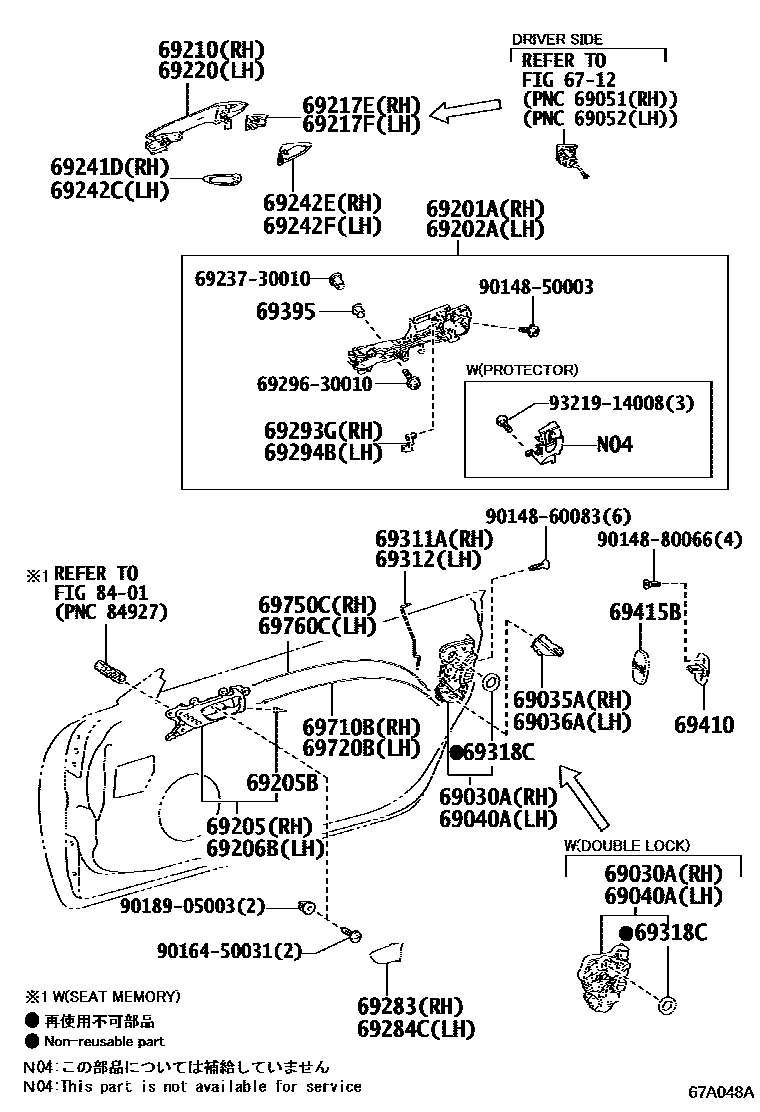

Parts diagram
6712
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
main69030-30A70i201810-202209
BRUNEI SPEC
main69030-30A70i201810-202209
THAILAND SPEC
main69030-30A70i201810-202111
SINGAPORE SPEC
main69030-30A70i201810-202111
MALAYSIA SPEC
main69030-30A70i201810-201911
HONG KONG SPEC
main69030-30A70i201810-202009
MACAU SPEC
main69030-30A70i201609-201810
main69030-53080i201810-202209
main69030-53130i201609-201810
main69030-60250i201810-202009
TAIWAN SPEC
main69030-78030i201409-201609
main69030-78040i201409-201609
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
main69035-30010i201810-202111
MALAYSIA SPEC
main69035-30010i201409-201810
main69035-30010i201810-201911
HONG KONG SPEC
main69035-30010i201810-202009
MACAU SPEC
main69035-30010i201810-202111
SINGAPORE SPEC
main69035-30010i201810-202209
BRUNEI SPEC
main69035-30010i201810-202209
THAILAND SPEC
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
main69036-30010i201810-201911
HONG KONG SPEC
main69036-30010i201810-202009
MACAU SPEC
main69036-30010i201810-202111
SINGAPORE SPEC
main69036-30010i201810-202111
MALAYSIA SPEC
main69036-30010i201409-201810
main69036-30010i201810-202209
THAILAND SPEC
main69036-30010i201810-202209
BRUNEI SPEC
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
main69040-30A80i201810-202209
BRUNEI SPEC
main69040-30A80i201609-201810
main69040-30A80i201810-201911
HONG KONG SPEC
main69040-30A80i201810-202009
MACAU SPEC
main69040-30A80i201810-202111
SINGAPORE SPEC
main69040-30A80i201810-202111
MALAYSIA SPEC
main69040-30A80i201810-202209
THAILAND SPEC
main69040-53100i201810-202009
TAIWAN SPEC
main69040-53130i201409-201609
main69040-53140i201609-201810
main69040-60220i201810-202209
main69040-78030i201409-201609
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
main69201-24010i201810-202209
main69201-78010i201810-201911
SINGAPORE SPEC
main69201-78010i201810-201911
THAILAND SPEC
main69201-78010i201810-201911
MALAYSIA SPEC
main69201-78010i201810-201911
HONG KONG SPEC
main69201-78010i201810-201911
BRUNEI SPEC
main69201-78010i201810-202009
MACAU SPEC
main69201-78010i201409-201810
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
main69202-24010i201810-202111
ARGENTINA SPEC
main69202-24010i201810-202111
MIDDLE & SOUTH AMERICA SPEC
main69202-24010i201810-202111
CHILE SPEC
main69202-24010i201911-202111
PHILIPPINE SPEC
main69202-24010i201810
main69202-24010i201810-202009
TAIWAN SPEC
main69202-24010i201911-202009
VIETNAM SPEC
main69202-78010i201409-202209
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69270-24010-C0i201810-202009
BLACK,TRIM2#,3#,4#,5#
main69270-24010-C0i201711-201810
BLACK,TRIM1#,2#,3#,5#
main69270-24010-C0i201409-201810
BLACK,TRIM1#,2#,4#,5#
main69270-24020-C0i201810-202009
"VERSION L",BLACK,TRIM0#,2#,3#,4#,5#
main69270-24020-C0i201409-201510
"F SPORT",BLACK,TRIM0#,1#,2#,3#,4#,5#
main69270-24020-C0i201409-201510
"VERSION L",BLACK,TRIM0#,1#,2#,3#,4#,5#
main69270-24020-C0i201510-201810
"F SPORT",BLACK,TRIM1#,2#,3#,4#,5#
main69270-24020-C0i201510-201810
"VERSION L",BLACK,TRIM1#,2#,3#,4#,5#
main69270-24020-C0i201711-201810
"F SPORT"&BLIND SPOT MONITOR-WITH,BLACK,TRIM1#,2#,3#,4#,5#
main69270-24020-C0i201711-201810
"VERSION L"&BLIND SPOT MONITOR-WITH,BLACK,TRIM1#,2#,3#,4#,5#
main69270-24020-C0i201711-201810
BLIND SPOT MONITOR-WITH,BLACK,TRIM1#,2#,3#,4#,5#
main69270-24020-C0i201810-202009
"F SPORT",BLACK,TRIM0#,2#,3#,4#,5#
main69270-24020-C0i201810-202009
"F SPORT"&BLIND SPOT MONITOR-WITH,BLACK,TRIM0#,2#,3#,4#,5#
main69270-24020-C0i201810-202009
"VERSION L"&BLIND SPOT MONITOR-WITH,BLACK,TRIM0#,2#,3#,4#,5#
main69270-24020-C0i201810-202009
BLIND SPOT MONITOR-WITH,BLACK,TRIM0#,2#,3#,4#,5#
main69270-24030-C0i202009-202111
"F SPORT"&BLIND SPOT MONITOR-WITH,BLACK,TRIM0#,2#,3#,4#,5#
main69270-24030-C0i202009-202111
"VERSION L",BLACK,TRIM0#,2#,3#,4#,5#
main69270-24030-C0i202009-202111
"VERSION L"&BLIND SPOT MONITOR-WITH,BLACK,TRIM0#,2#,3#,4#,5#
main69270-24030-C0i202009-202111
BLIND SPOT MONITOR-WITH,BLACK,TRIM0#,2#,3#,4#,5#
main69270-24030-C0i202009-202111
"F SPORT",BLACK,TRIM0#,2#,3#,4#,5#
main69270-24030-C0i202111-202209
BLACK,TRIM0#,2#,3#,4#,5#
main69270-24040-C0i202009-202111
BLACK,TRIM2#,3#,4#,5#
main69270-24040-C0i202111
BLACK,TRIM0#,2#,3#,4#,5#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
main90541-04014i201409-202209
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69280-24010-C0i201711-201810
"VERSION L"&BLIND SPOT MONITOR-WITH,BLACK,TRIM1#,2#,3#,4#,5#
main69280-24010-C0i201711-201810
"F SPORT"&BLIND SPOT MONITOR-WITH,BLACK,TRIM1#,2#,3#,4#,5#
main69280-24010-C0i201409-201810
BLACK,TRIM1#,2#,4#,5#
main69280-24010-C0i201711-201810
BLIND SPOT MONITOR-WITH,BLACK,TRIM1#,2#,3#,4#,5#
main69280-24010-C0i201510-201810
"F SPORT",BLACK,TRIM1#,2#,3#,4#,5#
main69280-24010-C0i201510-201810
"VERSION L",BLACK,TRIM1#,2#,3#,4#,5#
main69280-24010-C0i201810-202009
BLACK,TRIM2#,3#,4#,5#
main69280-24020-C0i201409-201810
"F SPORT",BLACK,TRIM1#,2#,3#,4#,5#
main69280-24020-C0i201409-201810
"VERSION L",BLACK,TRIM1#,2#,3#,4#,5#
main69280-24020-C0i201510-201711
"F SPORT",BLACK,TRIM1#,2#,3#,5#
main69280-24020-C0i201711-201810
BLACK,TRIM1#,2#,3#,5#
main69280-24020-C0i201810-202009
"F SPORT",BLACK,TRIM0#,2#,3#,4#,5#
main69280-24020-C0i201810-202009
"VERSION L",BLACK,TRIM0#,2#,3#,4#,5#
main69280-24030-C0i202111-202209
BLACK,TRIM0#,2#,3#,4#,5#
main69280-24030-C0i202009-202111
BLACK,TRIM2#,3#,4#,5#
main69280-24040-C0i202009-202111
"VERSION L",BLACK,TRIM0#,2#,3#,4#,5#
main69280-24040-C0i202009-202111
"F SPORT",BLACK,TRIM0#,2#,3#,4#,5#
main69280-24040-C0i202111
BLACK,TRIM0#,2#,3#,4#,5#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-48110-A0i201505-202209
WHITE NOVA GF.,083
sub69210-48110
main69210-48110-A1i201510-202209
SONIC QUARTZ,085
sub69210-48110
main69210-48110-A2i201505-201510
WHITE PEARL CS.,077
sub69210-48110
main69210-48110-B0i201505-202009
MERCURY GRAY MC.,1H9
sub69210-48110
main69210-48110-B1i201505-201810
PLATINUM SILVER ME.,1J4
sub69210-48110
main69210-48110-B2i201505-202209
SONIC TITANIUM,1J7
sub69210-48110
main69210-48110-B5i202009-202209
SONIC CHROME,1L1
sub69210-48110
main69210-48110-B6i202501
SONIC IRIDIUM,1L2
sub69210-48110
main69210-48110-B7i202111
TITANIUM CARBIDE GRAY,1L8 ,2YX
sub69210-48110
main69210-48110-B7i202111-202209
TITANIUM CARBIDE GRAY,1L8
sub69210-48110
main69210-48110-C0i201505-202209
BLACK,212
sub69210-48110
main69210-48110-C1i201609-202209
GRAPHITE BLACK GF.,223
sub69210-48110
main69210-48110-C2i201505-201609
STARLIGHT BLACK GF.,217
sub69210-48110
main69210-48110-D1i201505-202209
RADIANT RED CONTRAST LAYE,3T5
sub69210-48110
main69210-48110-E2i201505-201911
LAVA ORANGE CS.,4W7
sub69210-48110
main69210-48110-F0i201711-202501
NAPLES YELLOW,5C1
sub69210-48110
main69210-48110-J1i201505-202209
HEAT BLUE CONTRAST LAYERI,8X1
sub69210-48110
main69210-48110-J3i201810-202009
SPARKLING METEOR ME.,8X9
sub69210-48110
main69210-48110-J5i202009-202111
CELESTIAL BLUE GF.,8Y6
sub69210-48110
main69210-78010-A1i201409-201505
WHITE PEARL CS.,077
sub69210-48110
main69210-78010-A2i201409-201505
WHITE NOVA GF.,083
sub69210-48110
main69210-78010-B0i201409-201505
MERCURY GRAY MC.,1H9
sub69210-48110
main69210-78010-B1i201409-201505
PLATINUM SILVER ME.,1J4
sub69210-48110
main69210-78010-B2i201409-201505
SONIC TITANIUM,1J7
sub69210-48110
main69210-78010-C0i201409-201505
BLACK,212
sub69210-48110
main69210-78010-C1i201409-201505
STARLIGHT BLACK GF.,217
sub69210-48110
main69210-78010-D1i201409-201505
RED,3T5
sub69210-48110
main69210-78010-E1i201409-201505
ORANGE,4W7
sub69210-48110
main69210-78010-J2i201409-201505
BLUE,8X1
sub69210-48110
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
main69217-78010i201409-201810
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
main69218-78010i201409-202209
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69220-48070-A0i201505-202209
WHITE NOVA GF.,083
sub69220-48070
main69220-48070-A1i201510-202209
SONIC QUARTZ,085
sub69220-48070
main69220-48070-A2i201505-201510
WHITE PEARL CS.,077
sub69220-48070
main69220-48070-B0i201505-202009
MERCURY GRAY MC.,1H9
sub69220-48070
main69220-48070-B1i201505-201810
PLATINUM SILVER ME.,1J4
sub69220-48070
main69220-48070-B2i201505-202209
SONIC TITANIUM,1J7
sub69220-48070
main69220-48070-B5i202009-202209
SONIC CHROME,1L1
sub69220-48070
main69220-48070-B6i202501
SONIC IRIDIUM,1L2
sub69220-48070
main69220-48070-B7i202111-202209
TITANIUM CARBIDE GRAY,1L8
sub69220-48070
main69220-48070-B7i202111
TITANIUM CARBIDE GRAY,1L8 ,2YX
sub69220-48070
main69220-48070-C0i201505-202209
BLACK,212
sub69220-48070
main69220-48070-C1i201609-202209
GRAPHITE BLACK GF.,223
sub69220-48070
main69220-48070-C2i201505-201609
STARLIGHT BLACK GF.,217
sub69220-48070
main69220-48070-D1i201505-202209
RADIANT RED CONTRAST LAYE,3T5
sub69220-48070
main69220-48070-E2i201505-201911
LAVA ORANGE CS.,4W7
sub69220-48070
main69220-48070-F0i201711-202501
NAPLES YELLOW,5C1
sub69220-48070
main69220-48070-J1i201505-202209
HEAT BLUE CONTRAST LAYERI,8X1
sub69220-48070
main69220-48070-J3i201810-202009
SPARKLING METEOR ME.,8X9
sub69220-48070
main69220-48070-J5i202009-202111
CELESTIAL BLUE GF.,8Y6
sub69220-48070
main69220-78010-A1i201409-201505
WHITE PEARL CS.,077
sub69220-48070
main69220-78010-A2i201409-201505
WHITE NOVA GF.,083
sub69220-48070
main69220-78010-B0i201409-201505
MERCURY GRAY MC.,1H9
sub69220-48070
main69220-78010-B1i201409-201505
PLATINUM SILVER ME.,1J4
sub69220-48070
main69220-78010-B2i201409-201505
SONIC TITANIUM,1J7
sub69220-48070
main69220-78010-C0i201409-201505
BLACK,212
sub69220-48070
main69220-78010-C1i201409-201505
STARLIGHT BLACK GF.,217
sub69220-48070
main69220-78010-D1i201409-201505
RED,3T5
sub69220-48070
main69220-78010-E1i201409-201505
ORANGE,4W7
sub69220-48070
main69220-78010-J2i201409-201505
BLUE,8X1
sub69220-48070
69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH
main69241-78010i201409-202209
69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH
main69242-78010i201409-202209
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
main69241-78020i201409-202209
69242FPAD, FRONT DOOR OUTSIDE HANDLE, REAR
main69242-78020i201409-202209
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
main69283-30050-C0i201510-201810
"F SPORT",BLACK,TRIM1#,2#,3#,4#,5#
sub69283-30050
main69283-30050-C0i201409-201810
BLACK,TRIM1#,2#,4#,5#
sub69283-30050
main69283-30050-C0i201510-201810
"VERSION L",BLACK,TRIM1#,2#,3#,4#,5#
sub69283-30050
main69283-30050-C0i201711-201810
BLACK,TRIM1#,2#,3#,5#
sub69283-30050
main69283-30050-C0i201711-201810
"F SPORT"&BLIND SPOT MONITOR-WITH,BLACK,TRIM1#,2#,3#,4#,5#
sub69283-30050
main69283-30050-C0i201711-201810
"VERSION L"&BLIND SPOT MONITOR-WITH,BLACK,TRIM1#,2#,3#,4#,5#
sub69283-30050
main69283-30050-C0i201711-201810
BLIND SPOT MONITOR-WITH,BLACK,TRIM1#,2#,3#,4#,5#
sub69283-30050
main69283-30050-C0i201810-202111
BLACK,TRIM2#,3#,4#,5#
sub69283-30050
main69283-30050-C0i202111-202209
BLACK,TRIM0#,2#,3#,4#,5#
sub69283-30050
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
main69284-30050-C0i201409-201810
BLACK,TRIM1#,2#,4#,5#
sub69284-30050
main69284-30050-C0i201510-201810
"F SPORT",BLACK,TRIM1#,2#,3#,4#,5#
sub69284-30050
main69284-30050-C0i201510-201810
"VERSION L",BLACK,TRIM1#,2#,3#,4#,5#
sub69284-30050
main69284-30050-C0i201711-201810
BLACK,TRIM1#,2#,3#,5#
sub69284-30050
main69284-30050-C0i201711-201810
"F SPORT"&BLIND SPOT MONITOR-WITH,BLACK,TRIM1#,2#,3#,4#,5#
sub69284-30050
main69284-30050-C0i201711-201810
"VERSION L"&BLIND SPOT MONITOR-WITH,BLACK,TRIM1#,2#,3#,4#,5#
sub69284-30050
main69284-30050-C0i201711-201810
BLIND SPOT MONITOR-WITH,BLACK,TRIM1#,2#,3#,4#,5#
sub69284-30050
main69284-30050-C0i201810-202111
BLACK,TRIM2#,3#,4#,5#
sub69284-30050
main69284-30050-C0i202111-202209
BLACK,TRIM0#,2#,3#,4#,5#
sub69284-30050
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
main69293-12030i201409-202209
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
main69293-12040i201409-202209
69311AROD, FRONT DOOR LOCK OPEN, RH
main69311-24060i201409-202209
69312ROD, FRONT DOOR LOCK OPEN, LH
main69312-24060i201409-202209
69318CSEAL, DOOR LOCK WIRING HARNESS
main69318-51010i201409-202209
69395BUSH(FOR DOOR OUTSIDE HANDLE)
main69239-30010i201409-202209
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-33030i201409-202209
69415BCOVER, DOOR LOCK STRIKER, FRONT
main69415-60020i201409-202209
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
main69710-24080i201810-202209
THAILAND SPEC
main69710-24080i201810-202209
BRUNEI SPEC
main69710-24080i201409-201810
main69710-24080i201810-201911
HONG KONG SPEC
main69710-24080i201810-202009
MACAU SPEC
main69710-24080i201810-202111
SINGAPORE SPEC
main69710-24080i201810-202111
MALAYSIA SPEC
main69710-24090i201810-202209
main69710-24090i201810-202009
TAIWAN SPEC
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
main69710-24080i201810-201911
HONG KONG SPEC
main69710-24080i201409-201810
main69710-24080i201810-202009
MACAU SPEC
main69710-24080i201810-202111
SINGAPORE SPEC
main69710-24080i201810-202111
MALAYSIA SPEC
main69710-24080i201810-202209
BRUNEI SPEC
main69710-24080i201810-202209
THAILAND SPEC
main69710-24090i201810-202209
main69710-24090i201810-202009
TAIWAN SPEC
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
main69750-24110i201409-201512
sub69750-24111
main69750-24111i201810-202009
MACAU SPEC
main69750-24111i201810-202111
SINGAPORE SPEC
main69750-24111i201810-202111
MALAYSIA SPEC
main69750-24111i201601-201810
main69750-24111i201810-201911
HONG KONG SPEC
main69750-24111i201810-202209
BRUNEI SPEC
main69750-24111i201810-202209
THAILAND SPEC
main69750-24120i201810-202209
main69750-24120i201810-202009
TAIWAN SPEC
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
main69750-24110i201409-201512
sub69750-24111
main69750-24111i201810-202009
MACAU SPEC
main69750-24111i201810-202111
SINGAPORE SPEC
main69750-24111i201601-201810
main69750-24111i201810-202111
MALAYSIA SPEC
main69750-24111i201810-202209
THAILAND SPEC
main69750-24111i201810-201911
HONG KONG SPEC
main69750-24111i201810-202209
BRUNEI SPEC
main69750-24120i201810-202009
TAIWAN SPEC
main69750-24120i201810-202209
8401
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
9016450031
main90164-50031
9018905003
main90189-05003
9321914008
main93219-14008

41 parts on this diagram · 1 diagram in section

FRONT DOOR LOCK & HANDLE — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
