ROOF PANEL & BACK WINDOW GLASS

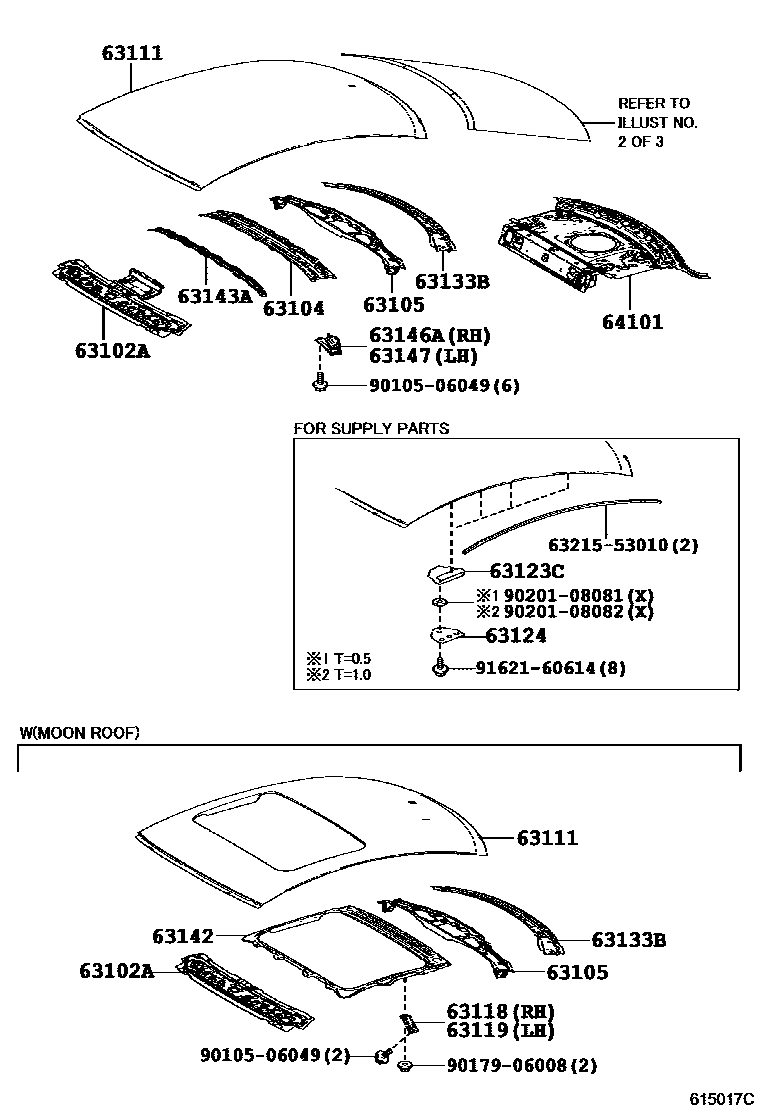

Parts diagram
63102APANEL SUB-ASSY, WINDSHIELD HEADER
main63102-24900i201409-202209
main63102-24901i201409-201609
SINGAPORE SPEC&MOON ROOF-WITH&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main63102-24901i201409-201609
SINGAPORE SPEC&MOON ROOF-WITH&ELECTRO MULTI VISION-WITH(DISPLAY AUDIO & GPS)
main63102-24901i201409-201711
MALAYSIA SPEC&MOON ROOF-WITH&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main63102-24901i201409-201711
MALAYSIA SPEC&MOON ROOF-WITH&ELECTRO MULTI VISION-WITH(DISPLAY AUDIO & GPS)
main63102-24901i201409-201711
TAIWAN SPEC&MOON ROOF-WITH
main63102-24901i201409-202209
MOON ROOF-WITH
main63102-24901i201409-202111
SOUTH AFRICA SPEC&MOON ROOF-WITH
main63102-24901i201409-201609
BRUNEI SPEC&MOON ROOF-WITH&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main63102-24901i201409-201609
BRUNEI SPEC&MOON ROOF-WITH&ELECTRO MULTI VISION-WITH(DISPLAY AUDIO & GPS)
main63102-24901i201510-201711
INDONESIA SPEC&MOON ROOF-WITH&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main63102-24901i201510-201711
INDONESIA SPEC&MOON ROOF-WITH&ELECTRO MULTI VISION-WITH(DISPLAY AUDIO & GPS)
main63102-24901i201510-201711
MOON ROOF-WITH&MAYDAY SYSTEM-WITH
main63102-24901i201510-202111
MOON ROOF-WITH&ANTENNA-GLASS
main63102-24901i201510-202111
MOON ROOF-WITH&ANTENNA-GLASS & DAB
main63102-24901i201510-201810
MOON ROOF-WITH&ANTENNA-GLASS & DIGITAL TV(FOR BRAZIL)
main63102-24901i201711-201810
INDONESIA SPEC&MOON ROOF-WITH
main63102-24901i201711-202111
MALAYSIA SPEC&MOON ROOF-WITH
main63102-24901i201711-202009
TAIWAN SPEC&MOON ROOF-WITH&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main63102-24901i202111-202209
MOON ROOF-WITH&ANTENNA-GLASS & DAB & SHARK ANTENNA
63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
main63141-24040i201409-202209
63105REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR
main63108-24010i201409-202209
63111PANEL, ROOF
main63111-24070i201409-201609
SINGAPORE SPEC&ELECTRO MULTI VISION-WITH(DISPLAY AUDIO & GPS)
main63111-24070i201409-201609
BRUNEI SPEC&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main63111-24070i201409-201609
BRUNEI SPEC&ELECTRO MULTI VISION-WITH(DISPLAY AUDIO & GPS)
main63111-24070i201409-201609
SINGAPORE SPEC&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main63111-24070i201409-201711
MALAYSIA SPEC&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main63111-24070i201409-201711
MALAYSIA SPEC&ELECTRO MULTI VISION-WITH(DISPLAY AUDIO & GPS)
main63111-24070i201409-202111
SOUTH AFRICA SPEC
main63111-24070i201510-201711
INDONESIA SPEC&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main63111-24070i201510-201711
INDONESIA SPEC&ELECTRO MULTI VISION-WITH(DISPLAY AUDIO & GPS)
main63111-24070i201510-202111
ANTENNA-GLASS
main63111-24070i201510-202111
ANTENNA-GLASS & DAB
main63111-24070i201510-201810
ANTENNA-GLASS & DIGITAL TV(FOR BRAZIL)
main63111-24070i201711-201810
INDONESIA SPEC
main63111-24070i201711-202111
MALAYSIA SPEC
main63111-24070i201810-202209
main63111-24080i201409-201711
TAIWAN SPEC&MOON ROOF-WITH
main63111-24080i201409-202111
MOON ROOF-WITH
main63111-24080i201711-202009
TAIWAN SPEC&MOON ROOF-WITH&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main63111-24080i201510-201711
MOON ROOF-WITH&MAYDAY SYSTEM-WITH
main63111-24080i202111-202209
MOON ROOF-WITH&ANTENNA-GLASS & DAB & SHARK ANTENNA
main63111-24090i201510-201711
MAYDAY SYSTEM-WITH
main63111-24090i201409-201711
TAIWAN SPEC
main63111-24090i201510-202111
main63111-24090i201711-202009
TAIWAN SPEC&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main63111-24090i202111-202209
ANTENNA-GLASS & DAB & SHARK ANTENNA
main63111-24100i201409-201609
BRUNEI SPEC&MOON ROOF-WITH&ELECTRO MULTI VISION-WITH(DISPLAY AUDIO & GPS)
main63111-24100i201409-202111
SOUTH AFRICA SPEC&MOON ROOF-WITH
main63111-24100i201409-201609
BRUNEI SPEC&MOON ROOF-WITH&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main63111-24100i201409-201609
SINGAPORE SPEC&MOON ROOF-WITH&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main63111-24100i201409-201609
SINGAPORE SPEC&MOON ROOF-WITH&ELECTRO MULTI VISION-WITH(DISPLAY AUDIO & GPS)
main63111-24100i201409-201711
MALAYSIA SPEC&MOON ROOF-WITH&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main63111-24100i201409-201711
MALAYSIA SPEC&MOON ROOF-WITH&ELECTRO MULTI VISION-WITH(DISPLAY AUDIO & GPS)
main63111-24100i201409-202209
MOON ROOF-WITH
main63111-24100i201510-201711
INDONESIA SPEC&MOON ROOF-WITH&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main63111-24100i201510-201711
INDONESIA SPEC&MOON ROOF-WITH&ELECTRO MULTI VISION-WITH(DISPLAY AUDIO & GPS)
main63111-24100i201510-202111
MOON ROOF-WITH&ANTENNA-GLASS
main63111-24100i201510-202111
MOON ROOF-WITH&ANTENNA-GLASS & DAB
main63111-24100i201510-201810
MOON ROOF-WITH&ANTENNA-GLASS & DIGITAL TV(FOR BRAZIL)
main63111-24100i201711-201810
INDONESIA SPEC&MOON ROOF-WITH
main63111-24100i201711-202111
MALAYSIA SPEC&MOON ROOF-WITH
63118SUPPORT, ROOF PANEL, RH
main63118-24060i201409-202111
SOUTH AFRICA SPEC&MOON ROOF-WITH
main63118-24060i201409-201609
BRUNEI SPEC&MOON ROOF-WITH&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main63118-24060i201409-201609
BRUNEI SPEC&MOON ROOF-WITH&ELECTRO MULTI VISION-WITH(DISPLAY AUDIO & GPS)
main63118-24060i201409-201609
SINGAPORE SPEC&MOON ROOF-WITH&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main63118-24060i201409-201609
SINGAPORE SPEC&MOON ROOF-WITH&ELECTRO MULTI VISION-WITH(DISPLAY AUDIO & GPS)
main63118-24060i201409-201711
MALAYSIA SPEC&MOON ROOF-WITH&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main63118-24060i201409-201711
MALAYSIA SPEC&MOON ROOF-WITH&ELECTRO MULTI VISION-WITH(DISPLAY AUDIO & GPS)
main63118-24060i201409-201711
TAIWAN SPEC&MOON ROOF-WITH
main63118-24060i201409-202209
MOON ROOF-WITH
main63118-24060i201510-201711
INDONESIA SPEC&MOON ROOF-WITH&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main63118-24060i201510-201711
INDONESIA SPEC&MOON ROOF-WITH&ELECTRO MULTI VISION-WITH(DISPLAY AUDIO & GPS)
main63118-24060i201510-201711
MOON ROOF-WITH&MAYDAY SYSTEM-WITH
main63118-24060i201510-202111
MOON ROOF-WITH&ANTENNA-GLASS
main63118-24060i201510-202111
MOON ROOF-WITH&ANTENNA-GLASS & DAB
main63118-24060i201510-201810
MOON ROOF-WITH&ANTENNA-GLASS & DIGITAL TV(FOR BRAZIL)
main63118-24060i201711-201810
INDONESIA SPEC&MOON ROOF-WITH
main63118-24060i201711-202111
MALAYSIA SPEC&MOON ROOF-WITH
main63118-24060i201711-202009
TAIWAN SPEC&MOON ROOF-WITH&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main63118-24060i202111-202209
MOON ROOF-WITH&ANTENNA-GLASS & DAB & SHARK ANTENNA
63119SUPPORT, ROOF PANEL, LH
main63118-24060i201409-202111
SOUTH AFRICA SPEC&MOON ROOF-WITH
main63118-24060i201409-201609
BRUNEI SPEC&MOON ROOF-WITH&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main63118-24060i201409-201609
BRUNEI SPEC&MOON ROOF-WITH&ELECTRO MULTI VISION-WITH(DISPLAY AUDIO & GPS)
main63118-24060i201409-201609
SINGAPORE SPEC&MOON ROOF-WITH&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main63118-24060i201409-201609
SINGAPORE SPEC&MOON ROOF-WITH&ELECTRO MULTI VISION-WITH(DISPLAY AUDIO & GPS)
main63118-24060i201409-201711
MALAYSIA SPEC&MOON ROOF-WITH&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main63118-24060i201409-201711
MALAYSIA SPEC&MOON ROOF-WITH&ELECTRO MULTI VISION-WITH(DISPLAY AUDIO & GPS)
main63118-24060i201409-201711
TAIWAN SPEC&MOON ROOF-WITH
main63118-24060i201409-202209
MOON ROOF-WITH
main63118-24060i201510-201711
INDONESIA SPEC&MOON ROOF-WITH&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main63118-24060i201510-201711
INDONESIA SPEC&MOON ROOF-WITH&ELECTRO MULTI VISION-WITH(DISPLAY AUDIO & GPS)
main63118-24060i201510-201711
MOON ROOF-WITH&MAYDAY SYSTEM-WITH
main63118-24060i201510-202111
MOON ROOF-WITH&ANTENNA-GLASS
main63118-24060i201510-202111
MOON ROOF-WITH&ANTENNA-GLASS & DAB
main63118-24060i201510-201810
MOON ROOF-WITH&ANTENNA-GLASS & DIGITAL TV(FOR BRAZIL)
main63118-24060i201711-201810
INDONESIA SPEC&MOON ROOF-WITH
main63118-24060i201711-202111
MALAYSIA SPEC&MOON ROOF-WITH
main63118-24060i201711-202009
TAIWAN SPEC&MOON ROOF-WITH&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main63118-24060i202111-202209
MOON ROOF-WITH&ANTENNA-GLASS & DAB & SHARK ANTENNA
63123CREINFORCEMENT, ROOF PANEL
main63123-24010i201409-202209
63124REINFORCEMENT, ROOF PANEL, NO.1
main63124-24010i201409-202209
63133BFRAME, BACK WINDOW
main63133-24050i201409-202209
63142REINFORCEMENT, ROOF PANEL, NO.2
main63142-24050i201409-201711
TAIWAN SPEC&MOON ROOF-WITH
main63142-24050i201409-202111
SOUTH AFRICA SPEC&MOON ROOF-WITH
main63142-24050i201409-201609
BRUNEI SPEC&MOON ROOF-WITH&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main63142-24050i201409-201609
BRUNEI SPEC&MOON ROOF-WITH&ELECTRO MULTI VISION-WITH(DISPLAY AUDIO & GPS)
main63142-24050i201409-201609
SINGAPORE SPEC&MOON ROOF-WITH&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main63142-24050i201409-201609
SINGAPORE SPEC&MOON ROOF-WITH&ELECTRO MULTI VISION-WITH(DISPLAY AUDIO & GPS)
main63142-24050i201409-201711
MALAYSIA SPEC&MOON ROOF-WITH&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main63142-24050i201409-201711
MALAYSIA SPEC&MOON ROOF-WITH&ELECTRO MULTI VISION-WITH(DISPLAY AUDIO & GPS)
main63142-24050i201409-202209
MOON ROOF-WITH
main63142-24050i201510-201711
INDONESIA SPEC&MOON ROOF-WITH&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main63142-24050i201510-201711
INDONESIA SPEC&MOON ROOF-WITH&ELECTRO MULTI VISION-WITH(DISPLAY AUDIO & GPS)
main63142-24050i201510-201711
MOON ROOF-WITH&MAYDAY SYSTEM-WITH
main63142-24050i201510-202111
MOON ROOF-WITH&ANTENNA-GLASS
main63142-24050i201510-202111
MOON ROOF-WITH&ANTENNA-GLASS & DAB
main63142-24050i201510-201810
MOON ROOF-WITH&ANTENNA-GLASS & DIGITAL TV(FOR BRAZIL)
main63142-24050i201711-201810
INDONESIA SPEC&MOON ROOF-WITH
main63142-24050i201711-202111
MALAYSIA SPEC&MOON ROOF-WITH
main63142-24050i201711-202009
TAIWAN SPEC&MOON ROOF-WITH&ELECTRO MULTI VISION-WITH(MEMORY CARD NAVIGATION)
main63142-24050i202111-202209
MOON ROOF-WITH&ANTENNA-GLASS & DAB & SHARK ANTENNA
63143AREINFORCEMENT, ROOF PANEL
main63143-24010i201409-202209
63146ABRACKET, ROOF PANEL REINFORCEMENT, NO.1
main63146-24010i201409-202209
63147BRACKET, ROOF PANEL REINFORCEMENT
main63147-24020i201409-202209
64101PANEL SUB-ASSY, UPPER BACK
main64101-24050i201409-202209
6321553010GARNISH, SLIDE ROOF RAIN CHANNEL, LH
main63215-53010
9010506049
main90105-06049
9017906008
main90179-06008
9020108081
main90201-08081
9020108082
main90201-08082
9162160614
main91621-60614

20 parts on this diagram · 3 diagrams in section
