SIDE MEMBER
5701
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61063CTROUGH SUB-ASSY, LUGGAGE DOOR OPENING, FRONT RH
61071BPANEL SUB-ASSY, ROOF SIDE, INNER REAR RH
61131CPILLAR, FRONT BODY, OUTER RH
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
61203RAIL SUB-ASSY, ROOF SIDE, INNER RH
61307PILLAR SUB-ASSY, CENTER BODY, INNER RH
61411PANEL, ROCKER, OUTER RH
61427REINFORCEMENT, ROCKER PANEL, NO.5 RH
61611PANEL, QUARTER, RH
61625GEXTENSION, QUARTER PANEL, REAR RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH
61711PANEL, ROOF SIDE, OUTER RH
61731BPANEL, ROOF SIDE, INNER RH
61824DPLATE, NOISE CONTROL, NO.1
62554DPAD, FRONT PILLER
62589EPAD, QUARTER PILLAR
62613ECLIP (FOR QUARTER WHEEL HOUSE COVER)
62613JINSURATOR, QUARTER WHEEL HOUSE, NO.2 RH
64201BSTRAINER SUB-ASSY, PACKAGE TRAY TO FLOOR, RH
65637LINER, REAR WHEEL HOUSE, RH
67841CCOVER, QUARTER SERVICE HOLE, RH
6548753020CLIP, CORNER PROTECTOR
main65487-53020
9011906939
main90119-06939
9017806011
main90178-06011
9018906157
main90189-06157

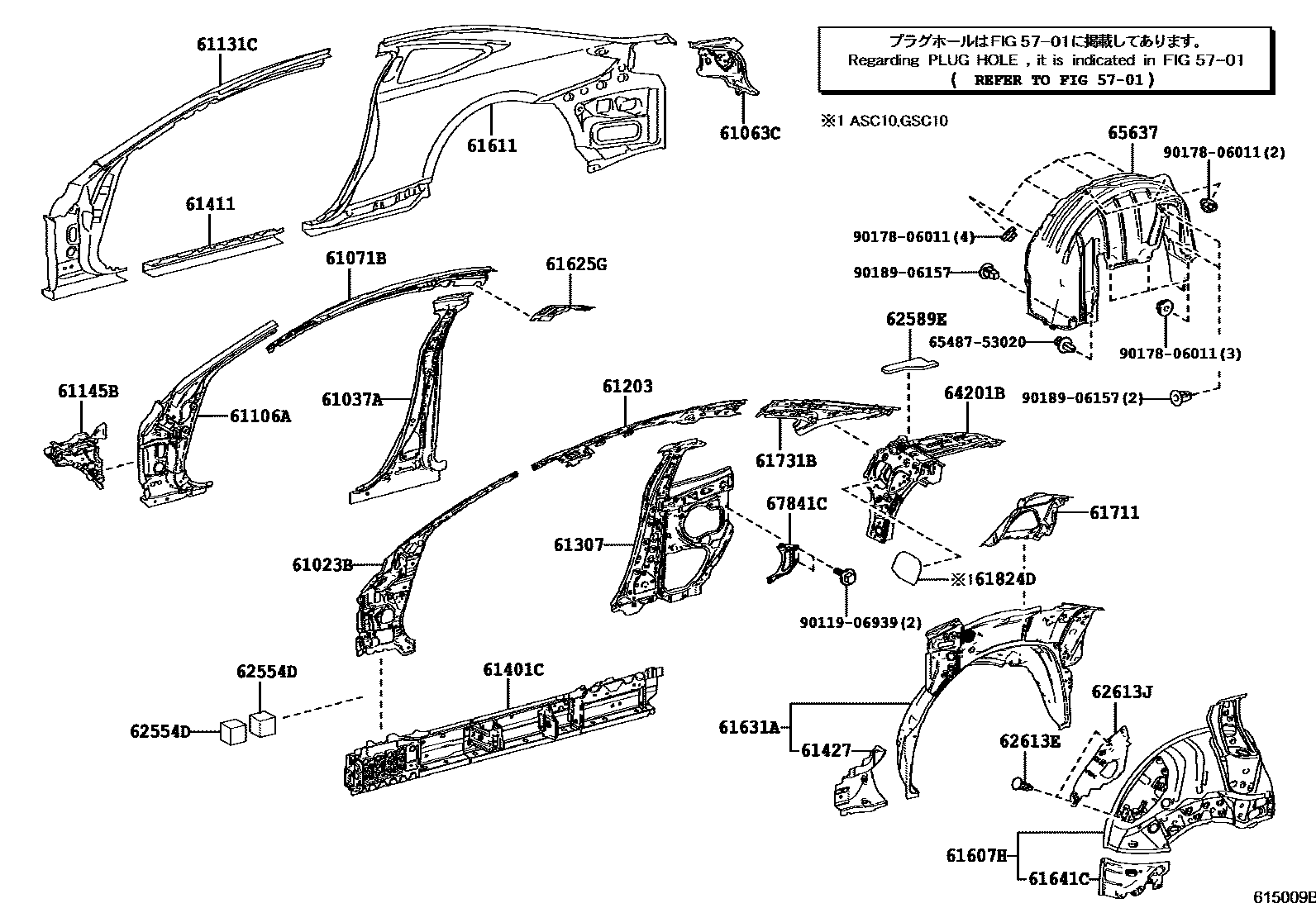

32 parts on this diagram · 2 diagrams in section
