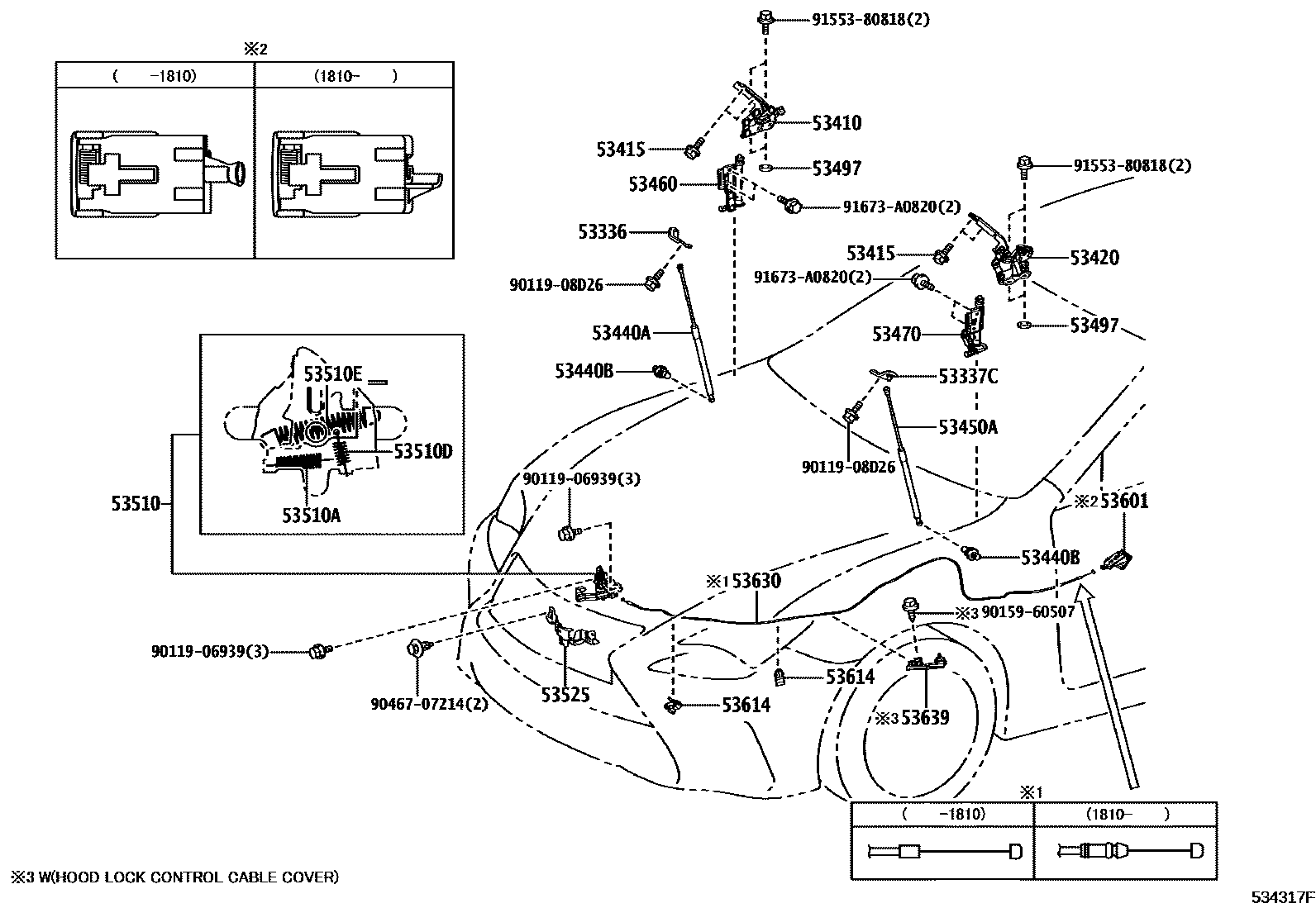

HOOD LOCK & HINGE

0001 1 0002 1

53336BRACKET, HOOD STAY, RH

main53336-24021iGSC10201409-201510

53337CBRACKET, HOOD STAY, LH

main53337-24021iGSC10201409-201510

53410HINGE ASSY, HOOD, RH

main53410-24080iGSC10201409-201510

53415BOLT, HOOD HINGE

main91551-A0814×4iASC10,AVC10,GSC10201510-201810

main64599-77040×4iGSC10..GCC202301-202310

TWO-TONE PACKAGE

53420HINGE ASSY, HOOD, LH

main53420-24080iGSC10201409-201510

53440ASUPPORT ASSY, HOOD, RH

main53440-0W290iGSC10201409-201503

main53440-0W291iGSC10201504-201510

53440BBOLT, HOOD SUPPORT, NO.1

main68961-20051×2iGSC10201409-201510

53450ASUPPORT ASSY, HOOD, LH

main53450-0W250iGSC10201409-201503

main53450-0W251iASC10,GSC10..ARL201810-202209

53460LIFTER ASSY, POP UP HOOD, RH

main53460-24030iGSC10..ARL201409-201510

main53460-24031iASC10,GSC10..ARL201604-201810

main53460-24032iASC10,GSC10..ARL202208-202209

main53460-24040iASC10,AVC10,GSC10..LHD201510-201603

main53460-24041iASC10,AVC10,GSC10..LHD201604-201810

main53460-24042iASC10,GSC10..LHD202208

53470LIFTER ASSY, POP UP HOOD, LH

main53470-24030iGSC10..ARL201409-201510

main53470-24031iASC10,GSC10..ARL201810-202207

main53470-24032iASC10,GSC10..ARL202208-202209

main53470-24040iASC10,AVC10,GSC10..LHD201510-201603

main53470-24041iASC10,GSC10..LHD201810-202207

main53470-24042iASC10,GSC10..LHD202208

53497PAD, HOOD HINGE, NO.1

main53497-20070×4iGSC10201409-201411

T=2.0

main53497-42010×4iGSC10201409-201411

T=0.5

main53497-50020×4iGSC10201412-201510

T=1.0

53510LOCK ASSY, HOOD

main53510-24090iGSC10..ARL201409-201510

main53510-24091iASC10,GSC10..ARL201907-202209

main53510-24100iASC10,AVC10,GSC10..LHD201510-201810

main53510-24101iASC10,GSC10..LHD201907

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iAVC10..ARL201510-201608

WD=0.9,CW=21

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iGSC10201409-201510

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-16077iGSC10201409-201510

WD=1.6,CW=12

53525PROTECTOR, HOOD LOCK RELEASE LEVER

main53525-30080iGSC10201409-201510

main53525-30130iAVC10..ARL201510-201608

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-30090-C0iGSC10..ARL201409-201510

BLACK,TRIM0#,1#,2#,3#,4#,5#

main53601-30090-C1iASC10,AVC10,GSC10201701-201810

BLACK,TRIM1#,2#,3#,4#,5#

main53601-30110-C0iASC10..ARL201810-202209

BLACK,TRIM0#,2#,3#,4#,5#

53614CLAMP, HOOD LOCK CONTROL CABLE

main90959-01369×2iGSC10..ARL201409-201510

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-24130iGSC10..ARL201409-201510

main53630-24131iASC10,GSC10..ARL201810-202209

main53630-24140iGSC10..LHD201409-201510

main53630-24141iASC10,GSC10..LHD201810

53639COVER, HOOD LOCK CONTROL CABLE, NO.2

main53639-24040iGSC10..GEN202111

main53639-24050iASC10,GSC10..ARL201810-202209

9011906939

main90119-06939

9011908D26

main90119-08D26

9015960507

main90159-60507

9046707214

main90467-07214

9155380818

main91553-80818

91673A0820

main91673-A0820

26 parts on this diagram · 2 diagrams in section
