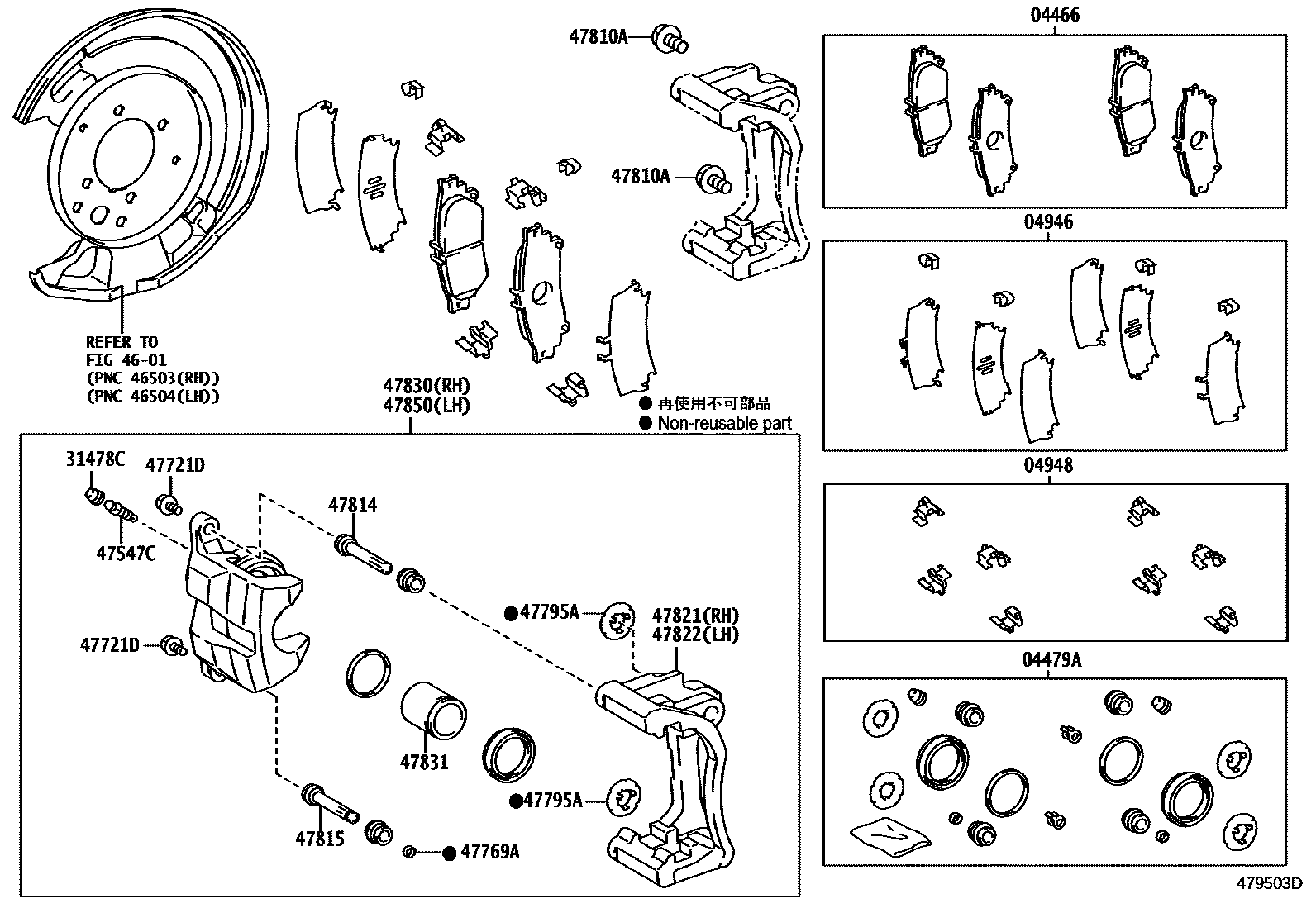

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04466PAD KIT, DISC BRAKE, REAR

main04466-24030iASC10,GSC10..GCC202303

MARK NBK D6360

main04466-30311iGSC10201409-201710

MARK AK NS542

sub04466-30312

main04466-30312iASC10,AVC10,GSC10201710-202009

MARK AK NS542

main04466-30360iASC10,GSC10..ARL,GEN202009-202206

MARK NBK D6361

sub04466-30400

main04466-30400iASC10..ARL202206-202209

MARK NBK D6360

main04466-F4020iASC10,GSC10..GCC202009-202303

MARK NBK D6361

sub04466-30410

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-30580iGSC10201409-202009

main04479-30610iGSC10;ASC10..GCC202009-202209

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-30230iGSC10201409-202009

main04946-30250iASC10,GSC10..ARL,GEN202009-202206

sub04946-42060

main04946-30270iASC10,GSC10..GCC202009

main04946-42060iGSC10..ARL,GEN202206-202209

04948FITTING KIT, DISC BRAKE, REAR

main04948-12070iASC10,GSC10..ARL,GEN202009-202205

main04948-12071iASC10,GSC10..GCC202009

main04948-30240iGSC10201409-202009

main04948-52060iGSC10..ARL,GEN202206-202209

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iASC10..ARL202009-202209

main31478-50020iAVC10..GEN;ASC10,GSC10201409-202009

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iGSC10201409-202209

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA603iASC10..ARL202009-202209

*8-1.00PX23-12.5

sub90016-AA614

main90105-08164iAVC10..GEN;ASC10,GSC10201409-202009

*8-1.00PX23-15

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-50010iASC10,GSC10..ARL,GEN202009-202206

main47879-33240iGSC10201409-202009

47795APLATE, REAR DISC BRAKE CALIPER, NO.1

main47895-30350iGSC10201409-202206

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12401iASC10,AVC10,GSC10201709-202209

main90119-12416iASC10,AVC10,GSC10201409-201708

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-33240iAVC10..GEN;ASC10,GSC10201409-202009

main47814-78010iGSC10;ASC10..GCC202009-202209

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-33240iGSC10201409-202009

main47815-78010iASC10..ARL202009-202209

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-30350iGSC10201409-202009

main47821-30460iASC10..ARL202009-202209

main47821-30470iASC10,GSC10..GCC202009

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-30350iAVC10..ARL201409-202009

main47822-30460iGSC10..ARL,GEN202009-202209

main47822-30470iASC10,GSC10..GCC202009

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-30350iASC10,GSC10201409-202009

main47830-30460iASC10..ARL202009-202209

main47830-30470iASC10,GSC10..GCC202009

47831PISTON, REAR DISC BRAKE

main47831-30310iASC10,GSC10201409-202009

main47831-30460iGSC10..ARL,GEN202009-202209

main47831-58030iASC10,GSC10..GCC202009-202210

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-30350iAVC10..GEN;ASC10,GSC10201409-202009

main47850-30460iASC10..ARL202009-202209

main47850-30470iASC10,GSC10..GCC202009

18 parts on this diagram · 2 diagrams in section
