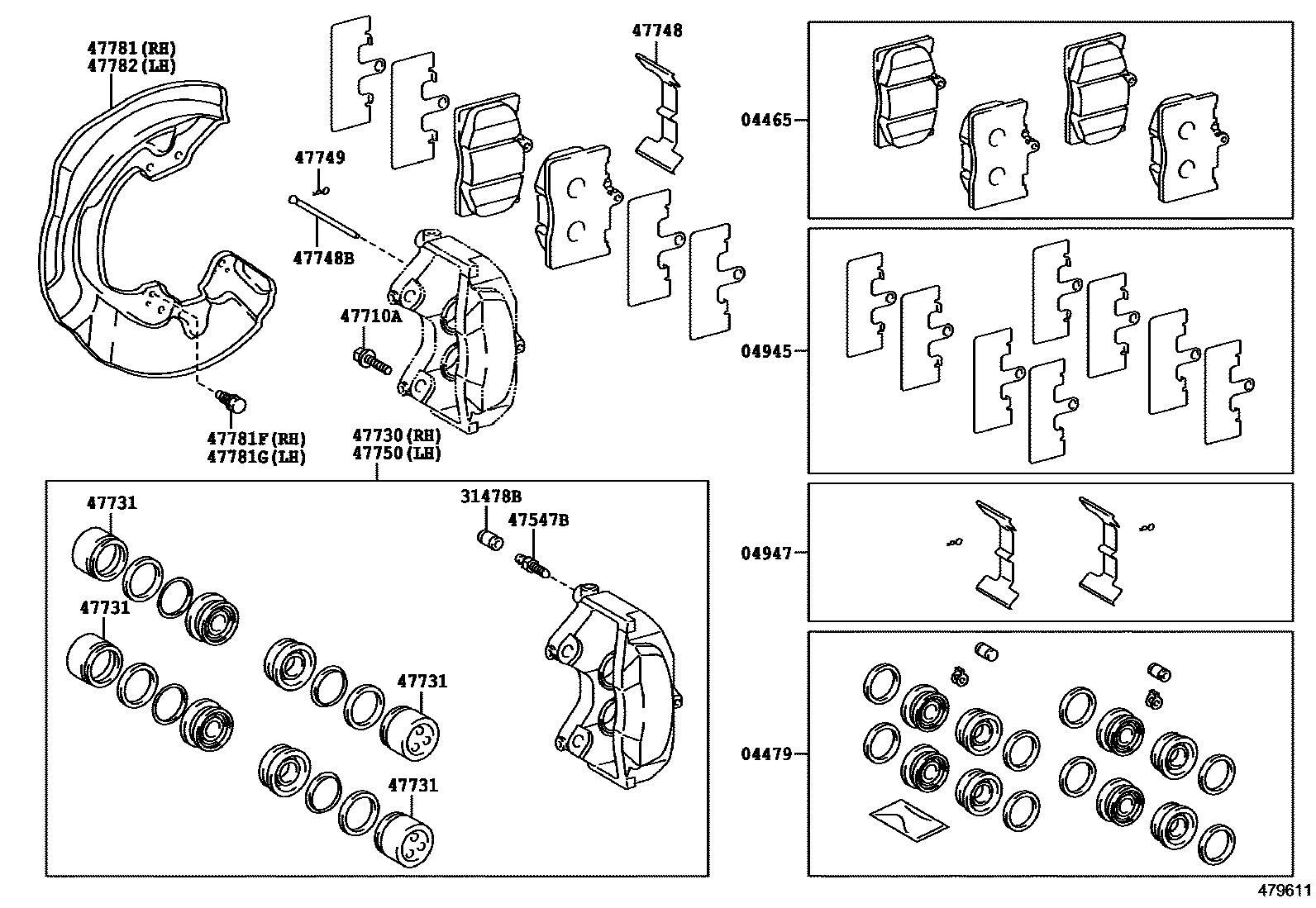

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 118INCHES DISC

04465PAD KIT, DISC BRAKE, FRONT

main04465-24050iGSC10..ARL,GEN202009

MARK ADVICS VC115

main04465-30500supersedes 04465-30510iAVC10201711-201810

MARK TEXTAR T4146

main04465-30510iAVC10..ARL;ASC10,GSC10..ARL,CHI,GEN201510-201810

MARK ADVICS PV565H

main04465-24060iASC10,GSC10..ARL202009-202209

MARK ADVICS VC115,FRONT WHEEL BRAKE-18INCHES DISC(ORANGE PAINTED)

main04465-30491supersedes 04465-30500iASC10,GSC10201510-201810

MARK TEXTAR T4146,FRONT WHEEL BRAKE-18INCHES DISC(ORANGE PAINTED)

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-22040supersedes 04479-50130iGSC10..GCC201409-201510

TIRE & DISC WHEEL-235/40R19+265/35R19(F-SPORT)

main04479-50130iASC10..CHI,GEN;GSC10..ARL,GEN201810

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-24020iASC10..ARL202009-202209

main04945-30350supersedes 04945-30370iAVC10201711-201810

main04945-30370iGSC10..ARL,GEN201409-201510

main04945-30340supersedes 04945-30350iGSC10..ARL201409-201510

TIRE & DISC WHEEL-235/40R19+265/35R19(F-SPORT)

04947FITTING KIT, DISC BRAKE, FRONT

main04947-22070iGSC10201409-201510

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-14010×2iAVC10..ARL201510-201608

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-50010×2iGSC10;ASC10..LHD201810

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12415×4iGSC10;ASC10..LHD201810

*12-1.25PX45-30

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-22460iGSC10;ASC10..LHD201810

main47730-24120iASC10,GSC10..GCC202009-202301

TIRE & DISC WHEEL-235/40R19, 8.0J, SUMMER(F-SPORT), BLACK

main47730-30560iGSC10..ARL201409-201510

TIRE & DISC WHEEL-235/40R19+265/35R19(F-SPORT)

main47730-30600iASC10,GSC10201510-201810

FRONT WHEEL BRAKE-18INCHES DISC(ORANGE PAINTED)

47731PISTON, FRONT DISC BRAKE

main47731-50070×8iAVC10..GEN;ASC10,GSC10201510-201810

main47731-30560×8iASC10,GSC10201510-201810

FRONT WHEEL BRAKE-18INCHES DISC

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-22460×2iAVC10..GEN;ASC10,GSC10201510-201810

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main47735-50020×2iGSC10201409-201510

47749CLIP, PIN HOLD

main47749-50030×2iASC10..ARL201810-202209

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-22460iASC10..ARL201810-202209

main47750-24120iASC10,GSC10..GCC202009-202301

TIRE & DISC WHEEL-235/40R19, 8.0J, SUMMER(F-SPORT), BLACK

main47750-30560iGSC10..ARL201409-201510

TIRE & DISC WHEEL-235/40R19+265/35R19(F-SPORT)

main47750-30600iASC10,GSC10201810-202009

FRONT WHEEL BRAKE-18INCHES DISC(ORANGE & HIGH FRICTION)

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-30260iASC10..ARL201810-202209

main47781-30270iGSC10..ARL201409-201510

TIRE & DISC WHEEL-235/40R19+265/35R19(F-SPORT)

47781FBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)

main90119-06508×4iGSC10;ASC10..LHD201810

47781GBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)

main90119-06508×4iASC10..ARL201810-202209

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-30260iGSC10201409-201510

main47782-30270iGSC10..ARL201409-201510

TIRE & DISC WHEEL-235/40R19+265/35R19(F-SPORT)

17 parts on this diagram · 2 diagrams in section
