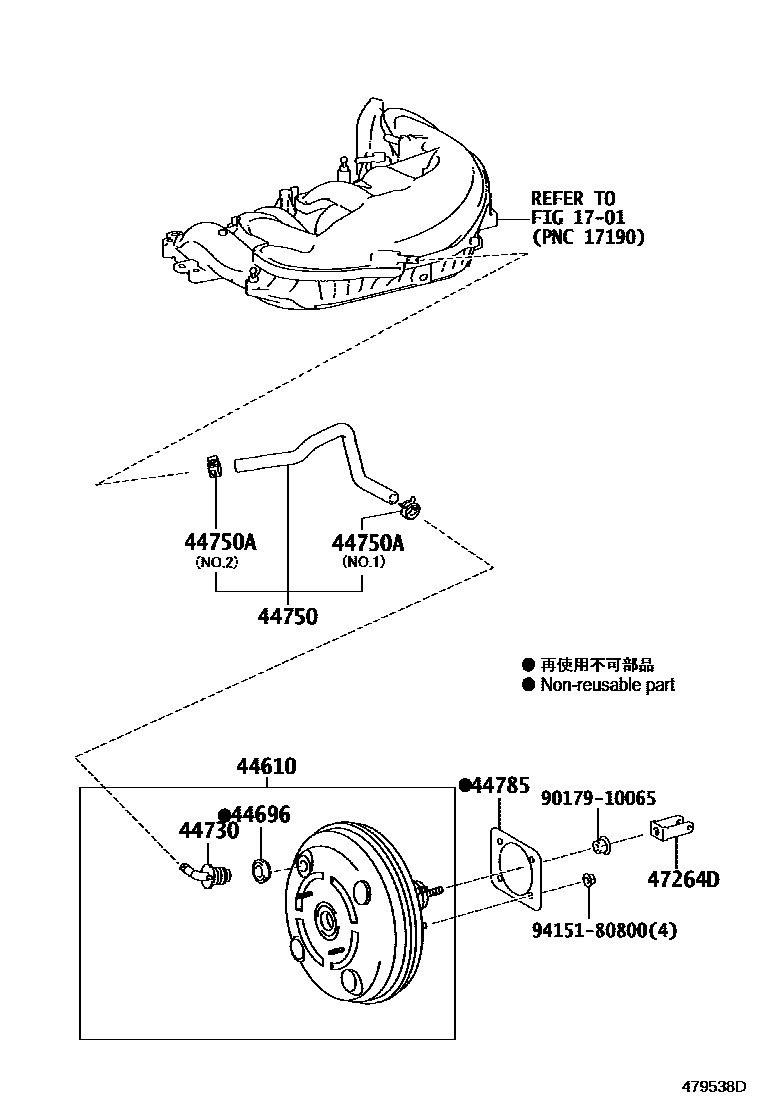

BRAKE BOOSTER & VACUUM TUBE
1701
44610BOOSTER ASSY, BRAKE
TAIWAN SPEC&WITH(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
BRUNEI SPEC&LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)
SOUTH AFRICA SPEC&LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)
MALAYSIA SPEC&LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)
MALAYSIA SPEC&LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)
BRUNEI SPEC&LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)
SOUTH AFRICA SPEC&LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)
44696GROMMET, CHECK VALVE
44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44750HOSE ASSY, VACUUM
44750ACLIP(FOR VACUUM HOSE ASSY)
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
44785GASKET, BRAKE BOOSTER
47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD
9017910065
9415180800
10 parts on this diagram · 6 diagrams in section
