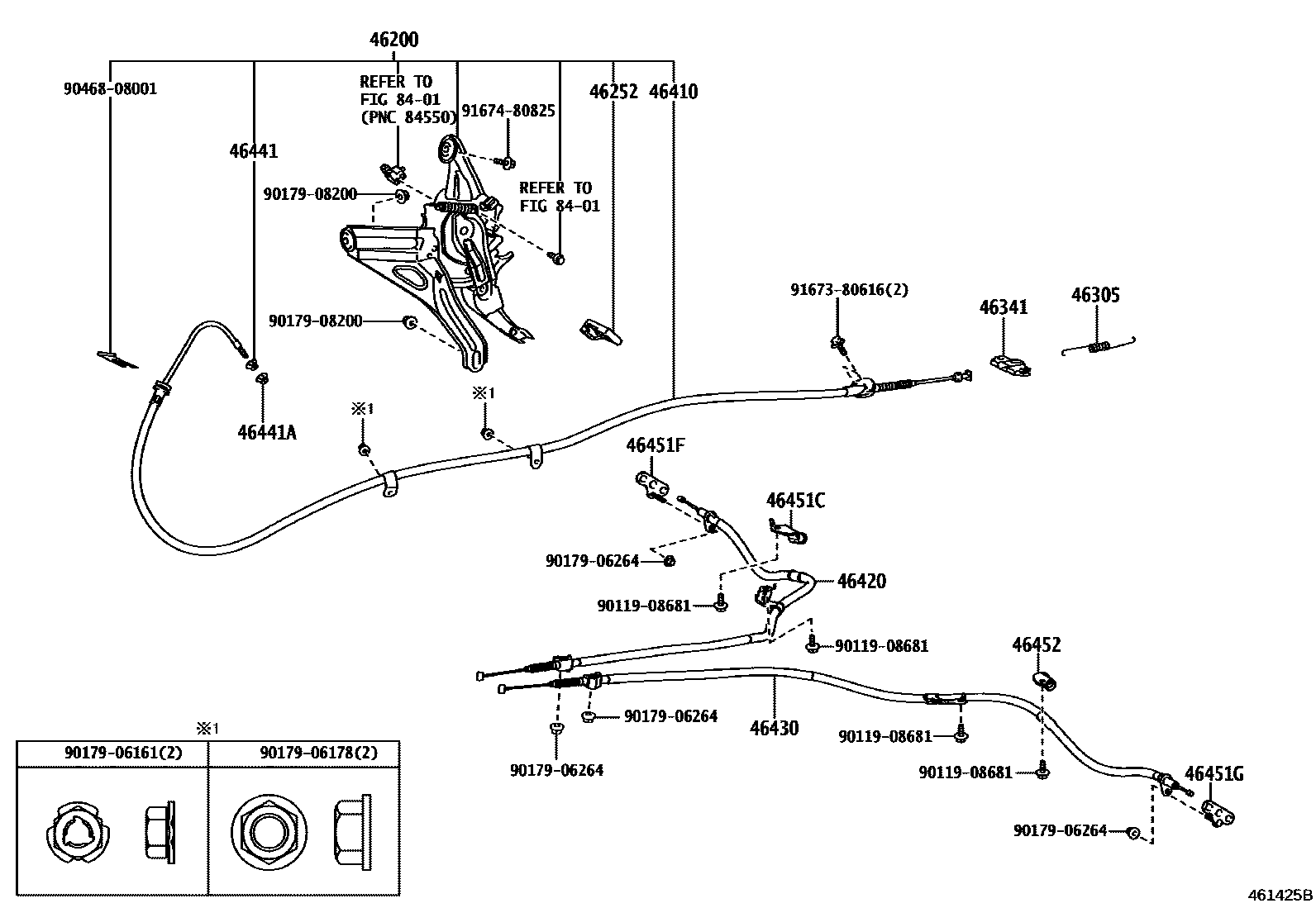

PARKING BRAKE & CABLE

0001 1CABLE 0002 1CABLE 0003 1BRAKE SHOE & LEVER 0004 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-53010iASC10,GSC10..ARL¥15,700201409-202009

main46200-53060iASC10,AVC10,GSC10..LHD201409-202009

46252PAD, PARKING PEDAL

main46252-47010iGSC10¥530201409-202009

46305SPRING, PARKING BRAKE RETURN W/DAMPER

main46305-53010iGSC10¥220201409-202009

46341EQUALIZER, PARKING BRAKE

main46341-22060iGSC10¥460201409-202009

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-53030iASC10,GSC10..ARL¥3,200201409-202009

main46410-53040iASC10,AVC10,GSC10..LHD201409-202009

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-24100iGSC10¥3,830201409-202009

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-24100iGSC10¥3,830201409-202009

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iGSC10¥160201409-202009

46441ANUT, WIRE ADJUSTING, NO.2

main90179-06299iGSC10¥70201409-202009

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-30220iGSC10¥400201409-202009

46451FBRACKET, CABLE SUPPORT

main46451-30270iGSC10¥280201409-202009

46451GBRACKET, CABLE SUPPORT

main46451-30280iGSC10¥280201409-202009

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46451-30230iGSC10¥400201409-202009

8401

9011908681

main90119-08681¥160

9017906161

main90179-06161¥70

9017906178

main90179-06178¥100

9017906264

main90179-06264¥100

9017908200

main90179-08200¥180

9046808001

main90468-08001¥210

9167380616

main91673-80616¥60

9167480825

main91674-80825¥110

22 parts on this diagram · 4 diagrams in section
