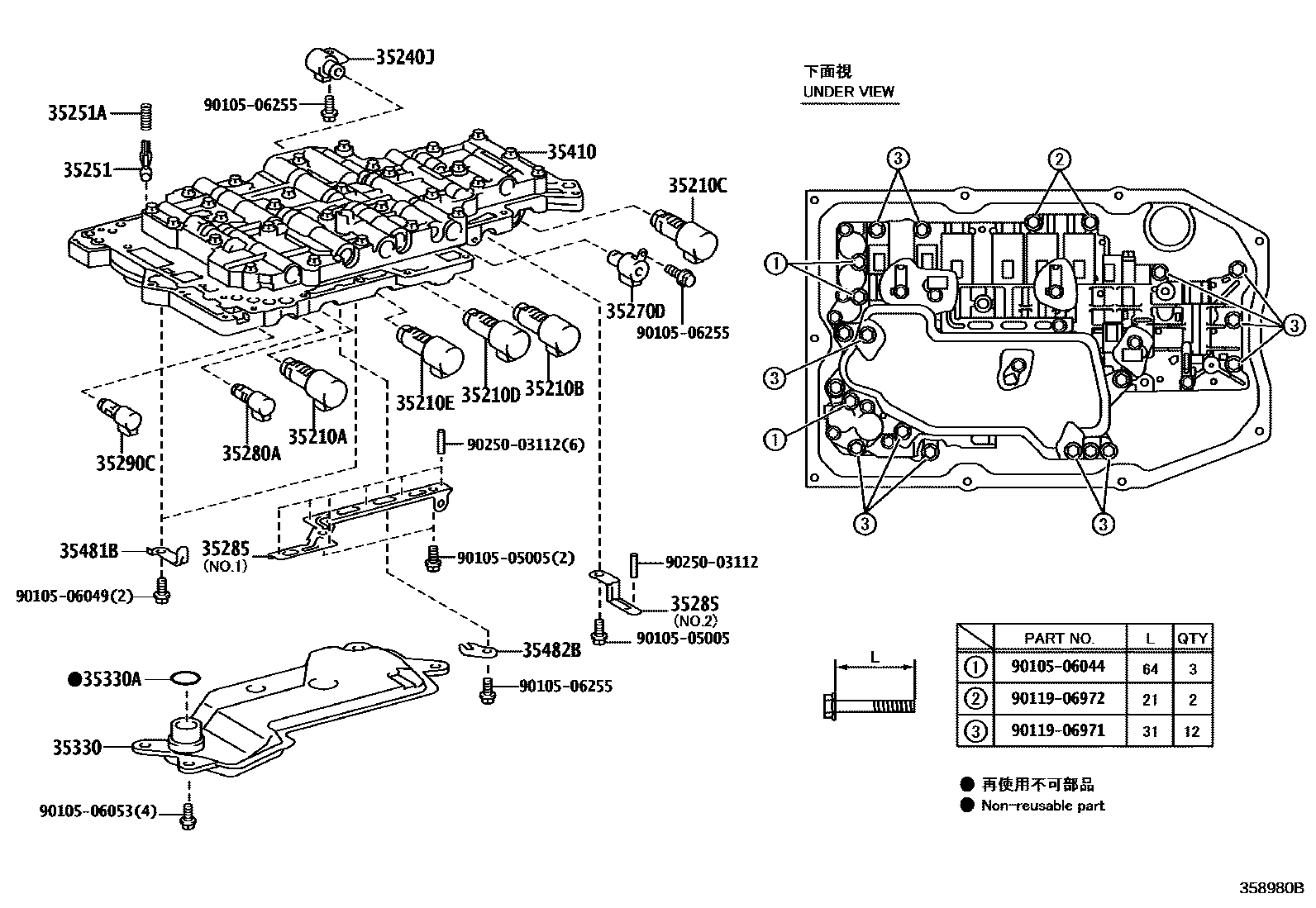

VALVE BODY & OIL STRAINER (ATM)
35210BVALVE, SOLENOID(SL3)
35210DVALVE, SOLENOID(SL4)
35240JVALVE, SOLENOID(SR)
35251BODY, CHECK BALL
35251ASPRING, COMPRESSION (FOR CHECK BALL BODY)
35270DVALVE, SOLENOID(SL)
35285PLATE, SOLENOID LOCK
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
35290CVALVE, SOLENOID(SLT)
35330STRAINER ASSY, VALVE BODY OIL
35330ARING, O (FOR OIL STRAINER)
35410BODY ASSY, TRANSMISSION VALVE
TAIWAN SPEC&LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
TAIWAN SPEC&WITH(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
THAILAND SPEC&LOW FUEL CONSUMPTION PACKAGE-WITH(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 6 WITH(ON BOARD DIAGNOSIS)
SOUTH AFRICA SPEC&LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)
BRUNEI SPEC&LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)
MALAYSIA SPEC&LOW FUEL CONSUMPTION PACKAGE-WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)
INDONESIA SPEC&WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)
SOUTH AFRICA SPEC&WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)
BRUNEI SPEC&WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)
MALAYSIA SPEC&WITHOUT(STOP & START SYSTEM)&EXHAUST EMISSION CONTROL-EURO 4 WITHOUT(ON BOARD DIAGNOSIS)
35481BCLAMP, VALVE BODY WIRE HARNESS
35482BCLAMP, TEMPERATURE SENSOR
9010505005
main90105-05005
9010506044
main90105-06044
9010506049
main90105-06049
9010506053
main90105-06053
9010506255
main90105-06255
9011906971
main90119-06971
9011906972
main90119-06972
9025003112
main90250-03112
25 parts on this diagram · 4 diagrams in section
