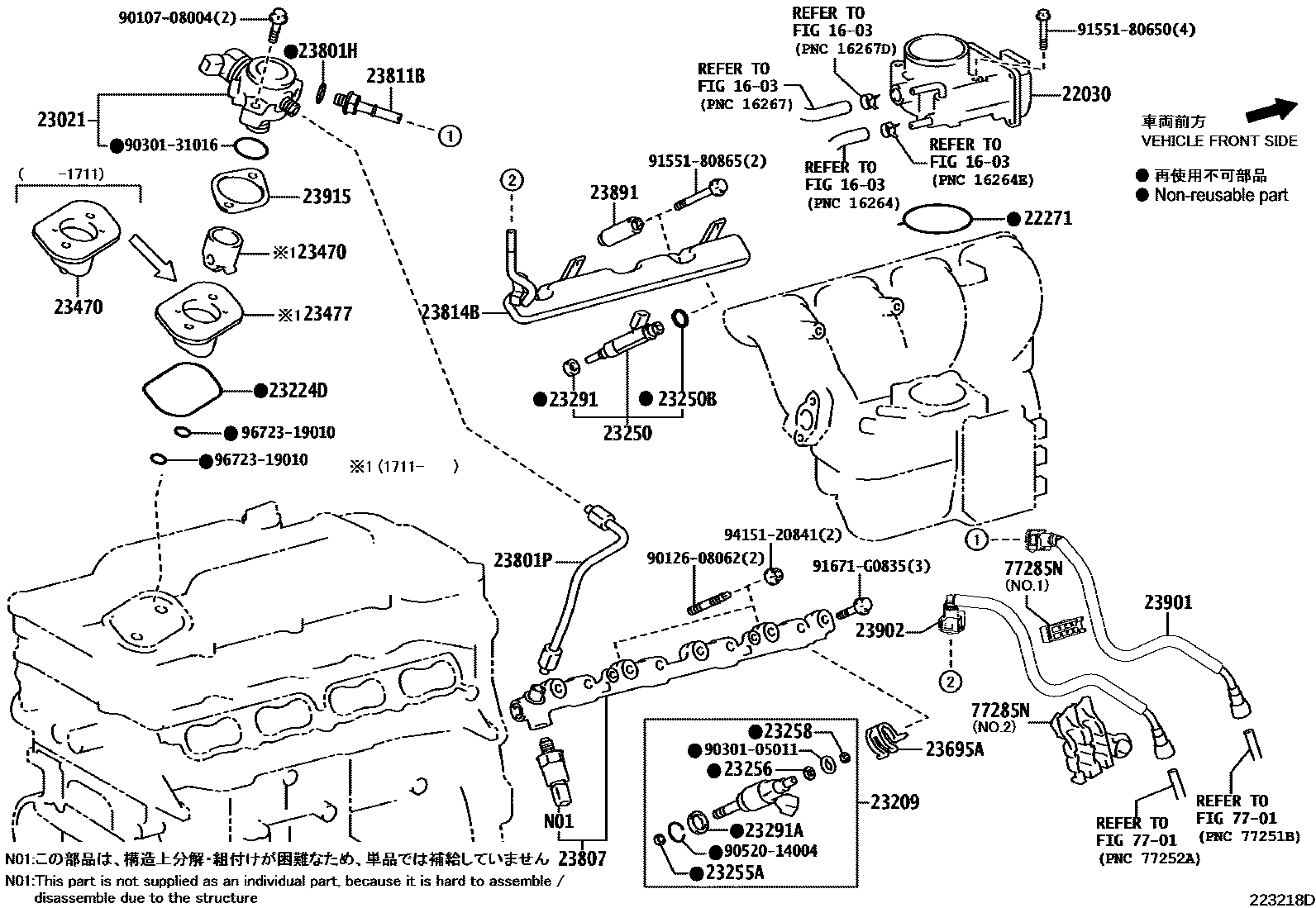

FUEL INJECTION SYSTEM
1603
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22271GASKET, THROTTLE BODY
23021PUMP SUB-ASSY, FUEL W/SEAL
23209INJECTOR SET, FUEL
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
23224DGASKET, FUEL PUMP SPACER
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
(J)
(L)
23255ASEAL, FUEL INJECTOR
23256RING, FUEL INJECTOR BACK-UP, NO.1
23258RING, FUEL INJECTOR BACK-UP, NO.3
23291INSULATOR, INJECTOR VIBRATION
23291AINSULATOR, INJECTOR VIBRATION
23470LIFTER ASSY, FUEL PUMP
23477GUIDE, FUEL PUMP LIFTER
23695ACLAMP, NOZZLE HOLDER
23801HGASKET(FOR FUEL PIPE)
23801PPIPE SUB-ASSY, FUEL, NO.1
PNC 23807=TYPE A
PNC 23807=TYPE B
23807PIPE SUB-ASSY, FUEL DELIVERY
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
23811BPIPE, FUEL, NO.1
23814BPIPE, FUEL DELIVERY
23891SPACER, FUEL DELIVERY
23901TUBE SUB-ASSY, FUEL
NO.1
NO.2
23902TUBE SUB-ASSY, FUEL
23915INSULATOR, FUEL PUMP
7701
77285NCLAMP, FUEL TUBE, NO.1
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
9010708004
9012608062
9030105011
9030131016
9052014004
9155180650
9155180865
91671G0835
9415120841
9672319010
37 parts on this diagram · 6 diagrams in section
