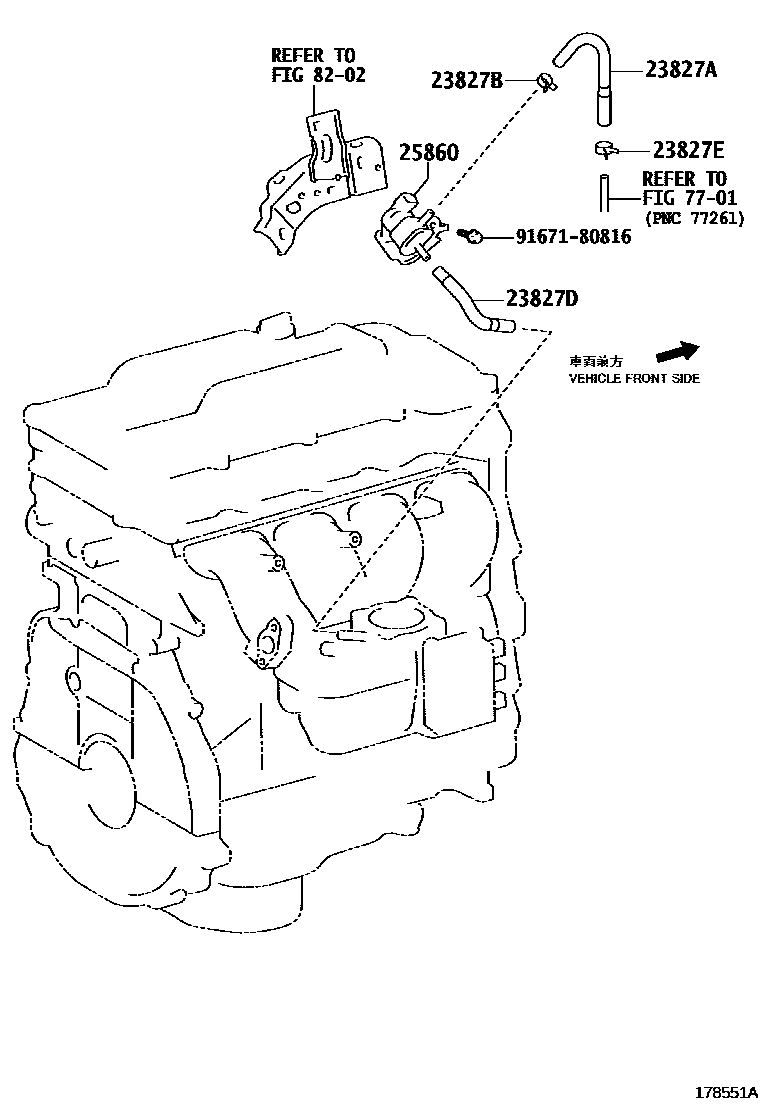

VACUUM PIPING

0001 1 0002 1 0003 1

23827AHOSE, FUEL VAPOR FEED, NO.2

main23826-31270i2GRF..GSC10..ARL201711-202209

main23827-31150i2GRF..GSC10201409-201711

main23827-36110i2ARFSE..AVC10201510-201810

main23827-36150i8ARFTS..ASC10..LHD201510-202209

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main96132-51300i2GRF..GSC10..ARL201409-202009

main96133-41301i2GRF..GSC10..LHD202009-202209

main96136-42201i8ARFTS..ASC10..LHD201510-202209

23827DHOSE, FUEL VAPOR FEED, NO.2

main23827-36120i2ARFSE..AVC10..ARL201510-201810

23827ECLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90467-15022i2ARFSE..AVC10201409-202209

main96137-41901i8ARFTS..ASC10..ARL201510-202209

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-31060i2GRF..GSC10201409-201711

main25860-31090i2GRF..GSC10..ARL201810-202209

TYPE A:REFER ILLUST.

main25860-31090i2GRF..GSC10201711-201810

main25860-36080i2ARFSE..AVC10..ARL201510-201810

7701

8202

9167180816

main91671-80816

8 parts on this diagram · 3 diagrams in section
