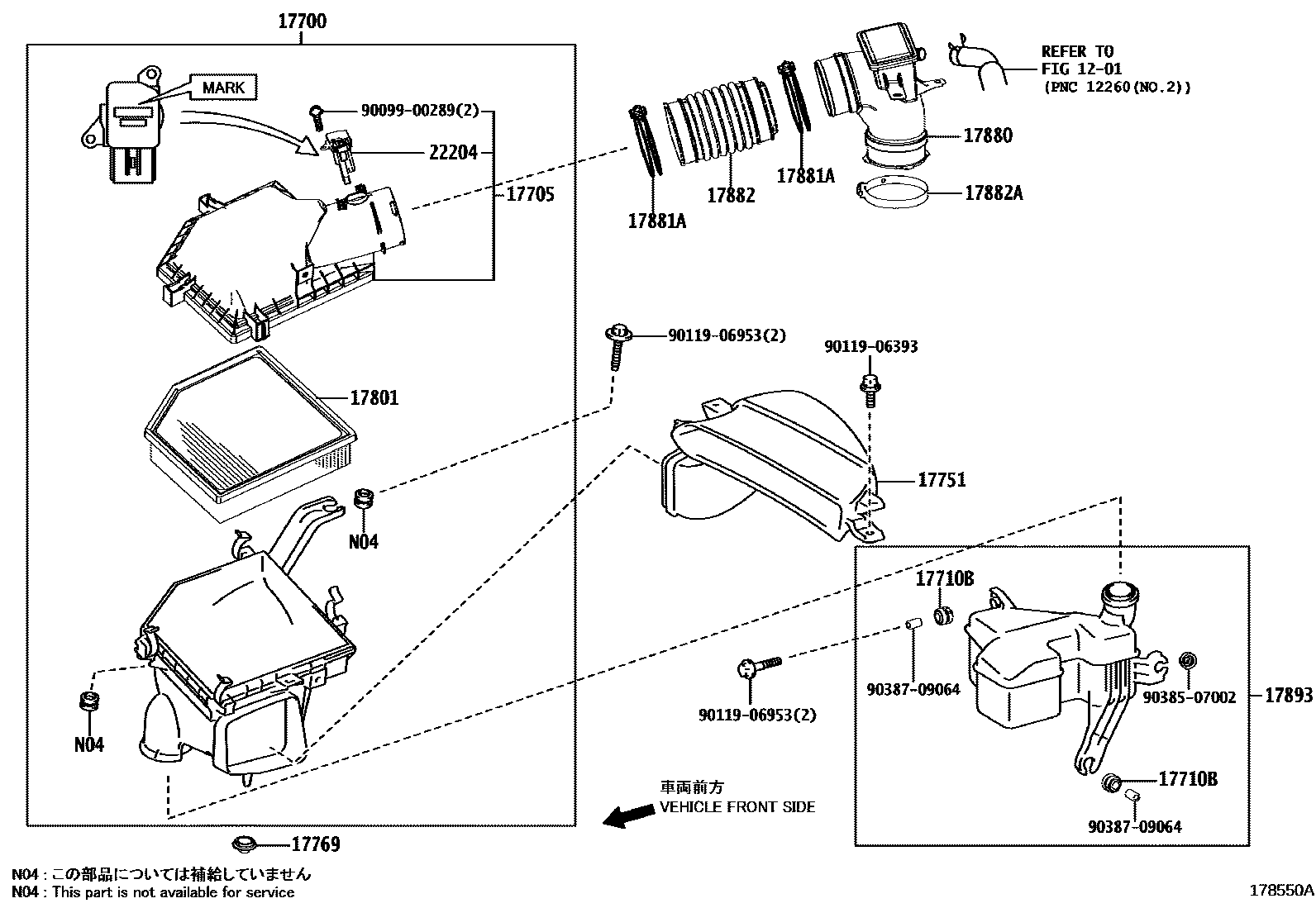

AIR CLEANER

0001 1 0002 1AIR CLEANER SIDE 0003 1INTERCOOLER SIDE 0004 1W(SOUND CREATOR) 0005 1W(RESONATOR)

1201

17700CLEANER ASSY, AIR

main17700-31A20i2GRF..GSC10201510-201810

main17700-36300i2ARFSE..AVC10..GEN201510-201810

main17700-36410i8ARFTS..ASC10..LHD201810

17705CAP SUB-ASSY, AIR CLEANER

main17705-31300i2GRF..GSC10201409-201510

main17705-36180i8ARFTS..ASC10..LHD201810

17710BGROMMET

main90480-11016×2i2ARFSE..AVC10..ARL201510-201608

17751INLET, AIR CLEANER, NO.1

main17751-31350i8ARFTS..ASC10201510-201810

main17751-36100i2ARFSE..AVC10..GEN201510-201810

17769SUPPORT, AIR CLEANER

main17769-31030i2GRF..GSC10201409-201510

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-31170i8ARFTS..ASC10..LHD201810

17880HOSE ASSY, AIR CLEANER

main17880-36100i2ARFSE..AVC10..GEN201510-201810

17881HOSE, AIR CLEANER, NO.1

main17880-36170i8ARFTS..ASC10..LHD201810

main17881-31280supersedes 17881-31350i2GRF..GSC10..ARL,GCC201409-201510

"F SPORT"

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10670i8ARFTS..ASC10201510-201810

NO.1:REFER ILLUST.

main96111-10850i8ARFTS..ASC10201510-201810

NO.2:REFER ILLUST.

main96111-10880×2i2ARFSE..AVC10..ARL201510-201608

17882HOSE, AIR CLEANER, NO.2

main17882-36030i2ARFSE..AVC10..GEN201510-201810

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main17891-31010i2ARFSE..AVC10..GEN201510-201810

main90460-90005i2GRF..GSC10201409-201510

17893RESONATOR, INTAKE AIR

main17893-36110i2ARFSE..AVC10..GEN201510-201810

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0T040i8ARFTS..ASC10..LHD201810

MARK 22204-0T040

main22204-0V010i8ARFTS..ASC10;2ARFSE..AVC10..GEN201510-201810

MARK 22204-0V010

main22204-0V020i8ARFTS..ASC10..LHD201810

MARK 22204-0V020

main22204-28010i8ARFTS..ASC10;2ARFSE..AVC10..GEN201510-201810

MARK 22204-28010

9009900289

main90099-00289

9011906393

main90119-06393

9011906953

main90119-06953

9038507002

main90385-07002

9038709064

main90387-09064

19 parts on this diagram · 5 diagrams in section
