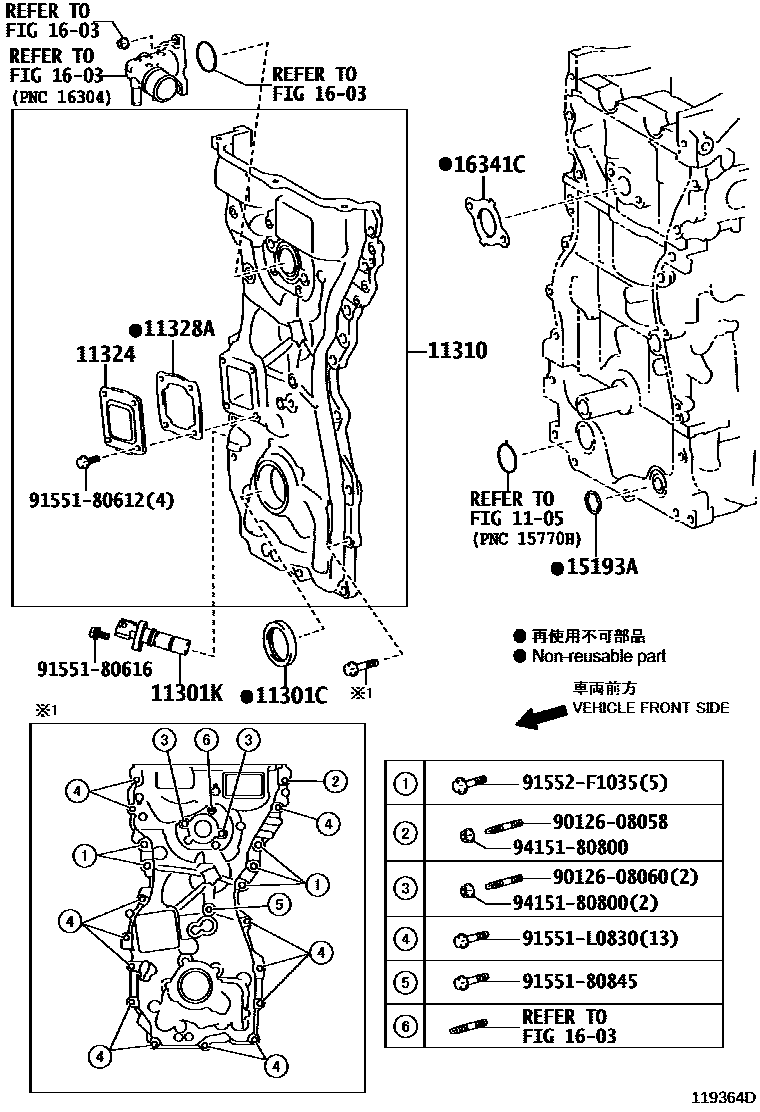

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1

1105

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-40042i2ARFSE..AVC10..ARL201510-201810

sub90311-42061

main90311-42045i2GRF..GSC10201409-201711

main90311-42051i8ARFTS..ASC10..ARL201510-202209

main90311-42052i2GRF..GSC10..ARL201711-202209

11301KSENSOR, CRANK POSITION

main90919-05070i2ARFSE..AVC10..GEN201510-201810

main90919-05088i8ARFTS..ASC10..ARL201510-202209

11310COVER ASSY, TIMING CHAIN

main11310-31080i2GRF..GSC10..ARL201711-202209

main11310-36050i2ARFSE..AVC10..ARL201510-201810

main11310-36080i8ARFTS..ASC10..LHD201510-202209

11324PLATE, TIMING CHAIN COVER

main11324-31020i2GRF..GSC10201409-202209

main11324-36010i2ARFSE..AVC10..ARL201510-201810

main11324-36020i8ARFTS..ASC10..LHD201510-202209

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-31030i2GRF..GSC10..ARL201409-202209

main11328-36030i8ARFTS..ASC10..ARL201510-202209

11328AGASKET, TIMING BELT COVER, NO.1

main11328-36020i2ARFSE..AVC10..GEN201510-201810

15193AGASKET, OIL PUMP

main15193-31020i2GRF..GSC10201711-202209

main15197-36010i8ARFTS..ASC10;2ARFSE..AVC10..GEN201510-202209

1603

16341CGASKET, WATER OUTLET

main16341-36010i2ARFSE..AVC10..ARL201510-202209

9012608058

main90126-08058

9012608060

main90126-08060

9155180612

main91551-80612

9155180616

main91551-80616

9155180845

main91551-80845

91551L0830

main91551-L0830

91552F1035

main91552-F1035

9415180800

main94151-80800
