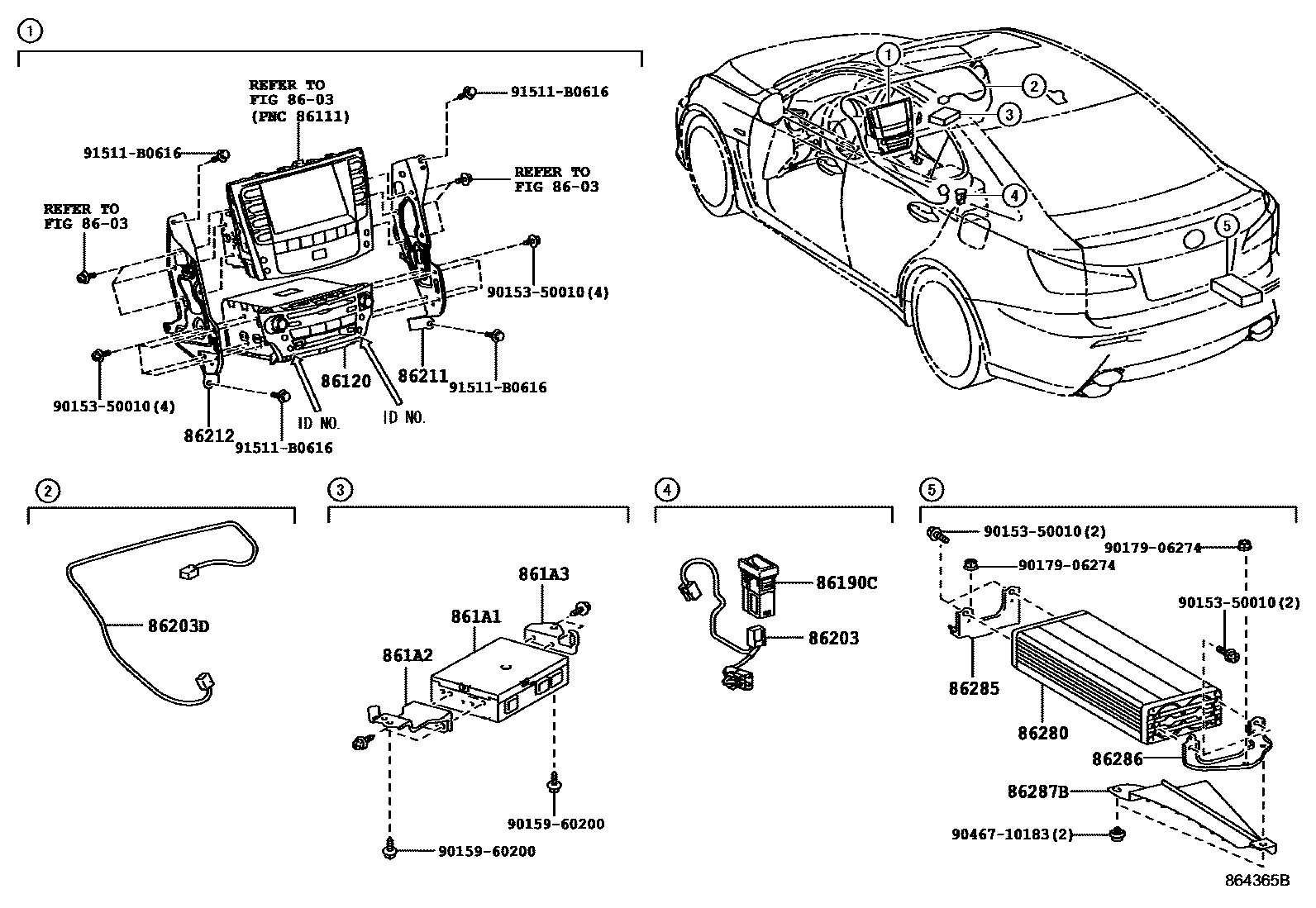

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1CONDENSER

8603

86120RECEIVER ASSY, RADIO

main86120-53E80iUSE20201008-201208

PIONEER, ID=P7596

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-53040iUSE20201008-201408

861A1COMPUTER, MULTI-MEDIA INTERFACE

main861A0-77010iUSE20201008-201208

sub861A0-77011

861A2BRACKET, MULTI-MEDIA INTERFACE, NO.1

main861A2-53010iUSE20201008-201208

861A3BRACKET, MULTI-MEDIA INTERFACE, NO.2

main861A3-53010iUSE20201008-201208

86203WIRE, RADIO

main86203-53010iUSE20201008-201408

86203DWIRE, STEREO COMPONENT, NO.1

main86203-53020iUSE20201008-201208

main86203-53210iUSE20201208-201408

86211BRACKET, RADIO, NO.1

main86211-53030iUSE20201008-201208

main86211-53070iUSE20201208-201408

86212BRACKET, RADIO, NO.2

main86212-53030iUSE20201008-201208

main86212-53070iUSE20201208-201408

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-0W750iUSE20201008-201208

sub86280-0W751

main86280-0WB00iUSE20201208

sub86280-0WB01

86285BRACKET, AMPLIFIER, NO.1

main86285-53070iUSE20201008

86286BRACKET, AMPLIFIER, NO.2

main86286-53080iUSE20201008

86287BCOVER, AMPLIFIER

main86287-53010iUSE20201008

9015350010

main90153-50010

9015960200

main90159-60200

9017906274

main90179-06274

9046710183

main90467-10183

91511B0616

main91511-B0616

19 parts on this diagram · 3 diagrams in section
