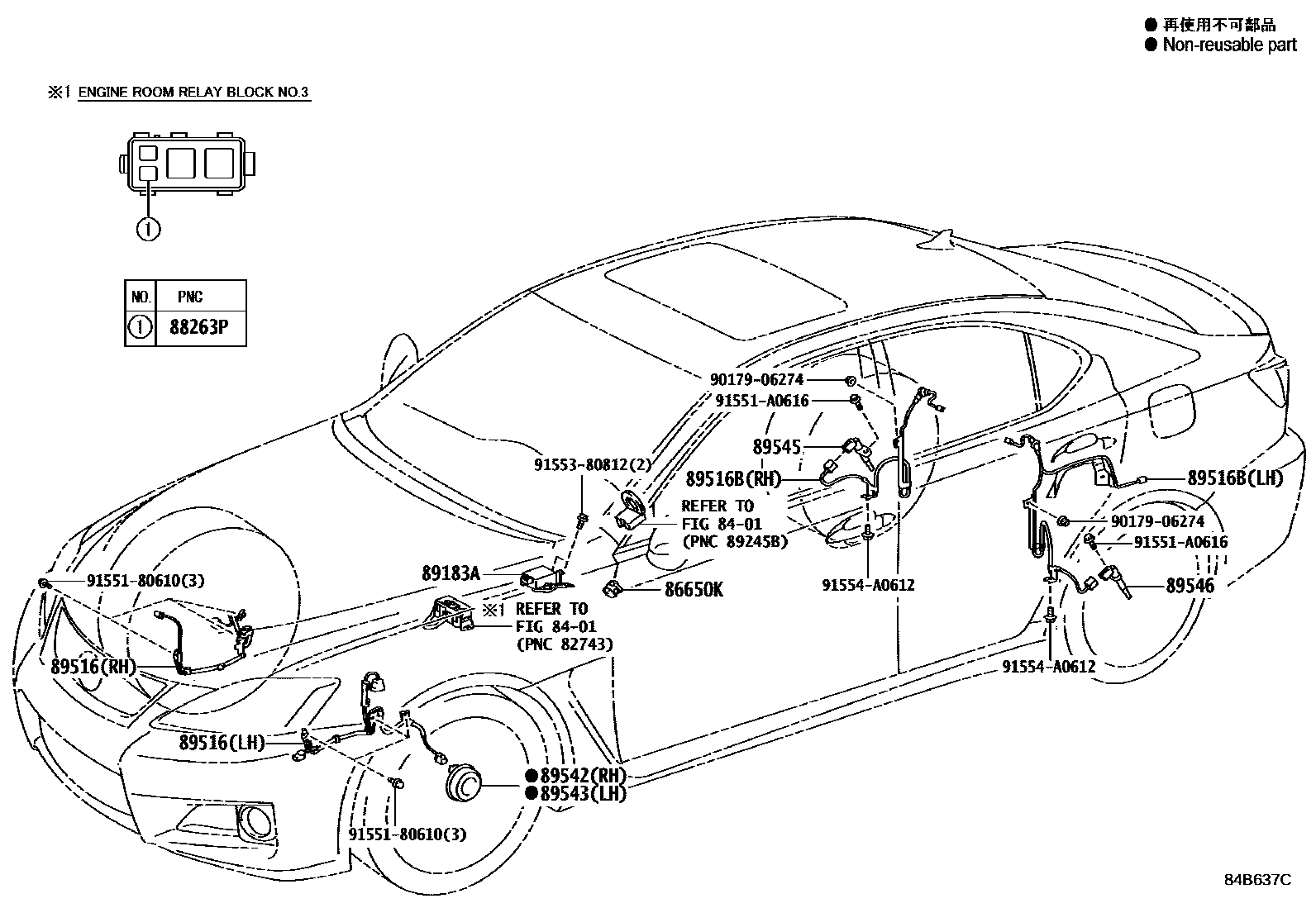

ABS & VSC
8401
86650KBUZZER ASSY, SKID CONTROL
PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)
88263PRELAY, STOP LAMP CONTROL
89183ASENSOR, YAWRATE
89516WIRE, SKID CONTROL SENSOR
RH
LH
RH
RH
89516BWIRE, SKID CONTROL SENSOR
RH
LH
89542SENSOR, SPEED, FRONT RH
89543SENSOR, SPEED, FRONT LH
89545SENSOR, SPEED, REAR RH
89546SENSOR, SPEED, REAR LH
9017906274
main90179-06274
9155180610
main91551-80610
91551A0616
main91551-A0616
9155380812
main91553-80812
91554A0612
main91554-A0612
15 parts on this diagram · 1 diagram in section
