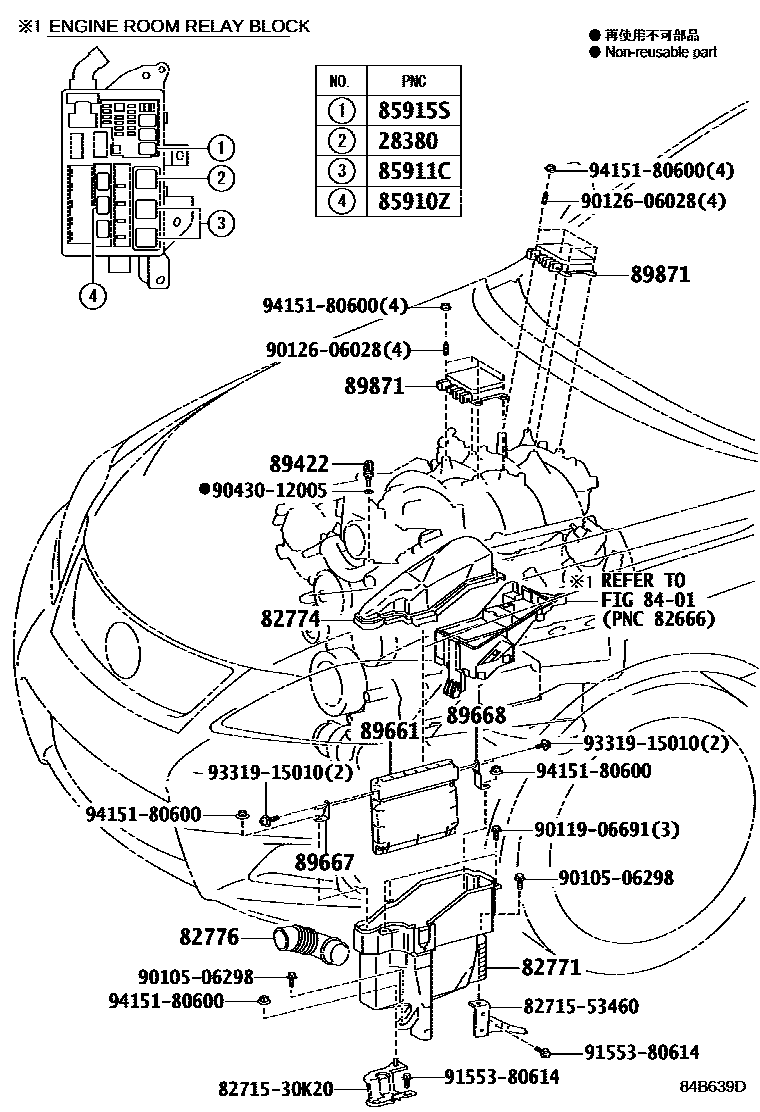

ELECTRONIC FUEL INJECTION SYSTEM
28380RELAY ASSY, FUEL PUMP
82771BOX, ENGINE ROOM ECU
82774COVER, ENGINE ROOM ECU
82776DUCT, ENGINE ROOM ECU OUTLET
8401
85910ZRELAY, INJECTION (FOR EFI)
85911CRELAY, EFI 2
85915SRELAY, HEATER (FOR AIR FUEL RATIO SENSOR)
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89661COMPUTER, ENGINE CONTROL
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
89871DRIVER, INJECTOR
8271530K20BRACKET,WIRING HARNESS CLAMP
main82715-30K20
8271553460BRACKET,WIRING HARNESS CLAMP
main82715-53460
9010506298
main90105-06298
9011906691
main90119-06691
9012606028
main90126-06028
9043012005
main90430-12005
9155380614
main91553-80614
9331915010
main93319-15010
9415180600
main94151-80600
22 parts on this diagram · 1 diagram in section
