SWITCH & RELAY & COMPUTER

0001 1ENGINE TRANSMISSION 0002 1ENGINE ROOM 0003 1ENGINE ROOM RELAY BLOCK 0004 1COWL 0005 1INSTRUMENT PANEL 0006 1INSTRUMENT PANEL 0007 1STEERING 0008 1SEAT 0009 1DOOR,ROOF,FLOOR & LUGGAGE

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iUSE20¥1,970201008-201104

main83530-28020iUSE20¥1,970201104

DENSO

main83530-60020iUSE20¥1,970201104

YAZAKI

83531ASWITCH, OIL PRESSURE

main83531-50010iUSE20¥810201008-201408

84540SWITCH ASSY, NEUTRAL START

main84540-71010iUSE20¥7,600201008-201408

89429SENSOR, OIL TEMPERATURE

main89429-53010iUSE20¥3,400201008

89465SENSOR, OXYGEN

main89465-30730iUSE20¥9,400201008

89467BSENSOR, AIR FUEL RATIO

main89467-53020iUSE20¥15,900201008-201208

main89467-53050iUSE20¥15,900201208

89491SENSOR, ENGINE OIL LEVEL

main89491-53020iUSE20¥11,500201008

sub89491-24020¥7,200

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iUSE20¥140201008

89615SENSOR, KNOCK CONTROL

main89615-20090iUSE20¥2,370201008

8271530L60BRACKET,WIRING HARNESS CLAMP

main82715-30L60¥450

8271553420BRACKET,WIRING HARNESS CLAMP

main82715-53420¥620

8271553430BRACKET,WIRING HARNESS CLAMP

main82715-53430¥390

9011908C62

main90119-08C62¥80

9043014011

main90430-14011¥50

91511B0830

main91511-B0830¥140

91553A0810

main91553-A0810¥80

91621B0616

main91621-B0616¥100

9167180816

main91671-80816¥80

9167380614

main91673-80614¥60

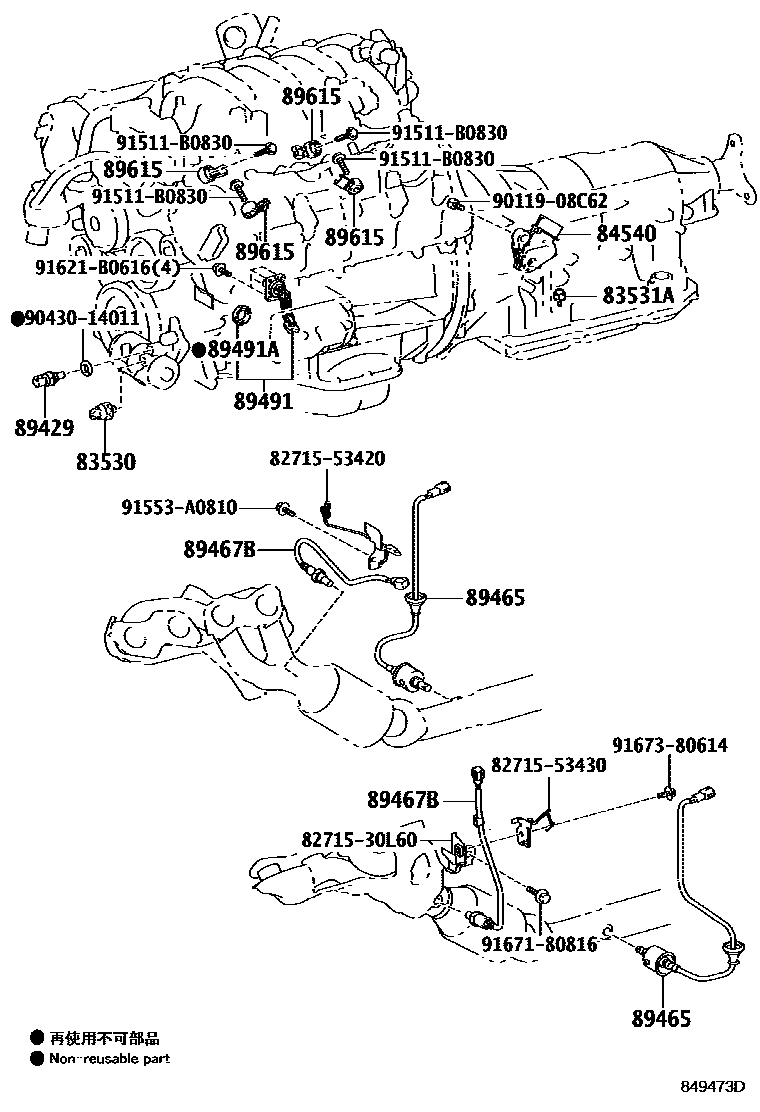

19 parts on this diagram · 9 diagrams in section
