WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1ENGINE 0004 1INSTRUMENT PANEL 0005 1DOOR 0006 1FLOOR & ROOF 0007 1SEAT 0008 1CLAMP & BRACKET 0009 1CONNECTOR 1/3 0010 1CONNECTOR 2/3 0011 1CONNECTOR 3/3

16364AWIRE, COOLING FAN

main16364-38020i2URGSE..USE20201008-201408

82111WIRE, ENGINE ROOM MAIN

main82111-53D42iUSE20201008-201108

main82111-53D43iUSE20201108-201109

sub82111-53D44

main82111-53D44iUSE20201110-201208

main82111-53D45iUSE20201208

82112WIRE, ENGINE ROOM, NO.2

main82112-53181iUSE20201008

main82112-53191iUSE20201008

PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)

82113WIRE, ENGINE ROOM, NO.3

main82113-53060iUSE20201008

82114WIRE, ENGINE ROOM, NO.4

main82114-53031iUSE20201008-201408

CLEARANCE & BACK SONAR-WITH

main82114-53040iUSE20201008-201408

82666SHOLDER, CONNECTOR NO.13

main82666-30A70iUSE20201008

82671BLOCK, JUNCTION

main82671-30340iUSE20201008

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-30B70iUSE20201008

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-53260iUSE20201008

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-53290iUSE20201008

82818DPROTECTOR, WIRING HARNESS, NO.5

main82817-53320iUSE20201008

82821ACOVER, CONNECTOR

main82821-22120iUSE20201008

82821ECOVER, CONNECTOR

main82821-30650iUSE20201008

82824CONNECTOR, WIRING HARNESS

main82824-28180iUSE20201008

82824DCONNECTOR, WIRING HARNESS

main82824-30130iUSE20201008

82824ECONNECTOR, WIRING HARNESS

main82824-48020iUSE20201008

8401

8417

86011GCONDENSER

main82930-30030iUSE20201111

main86516-30460iUSE20201008-201111

9011906995

main90119-06995

9167380610

main91673-80610

9415180600

main94151-80600

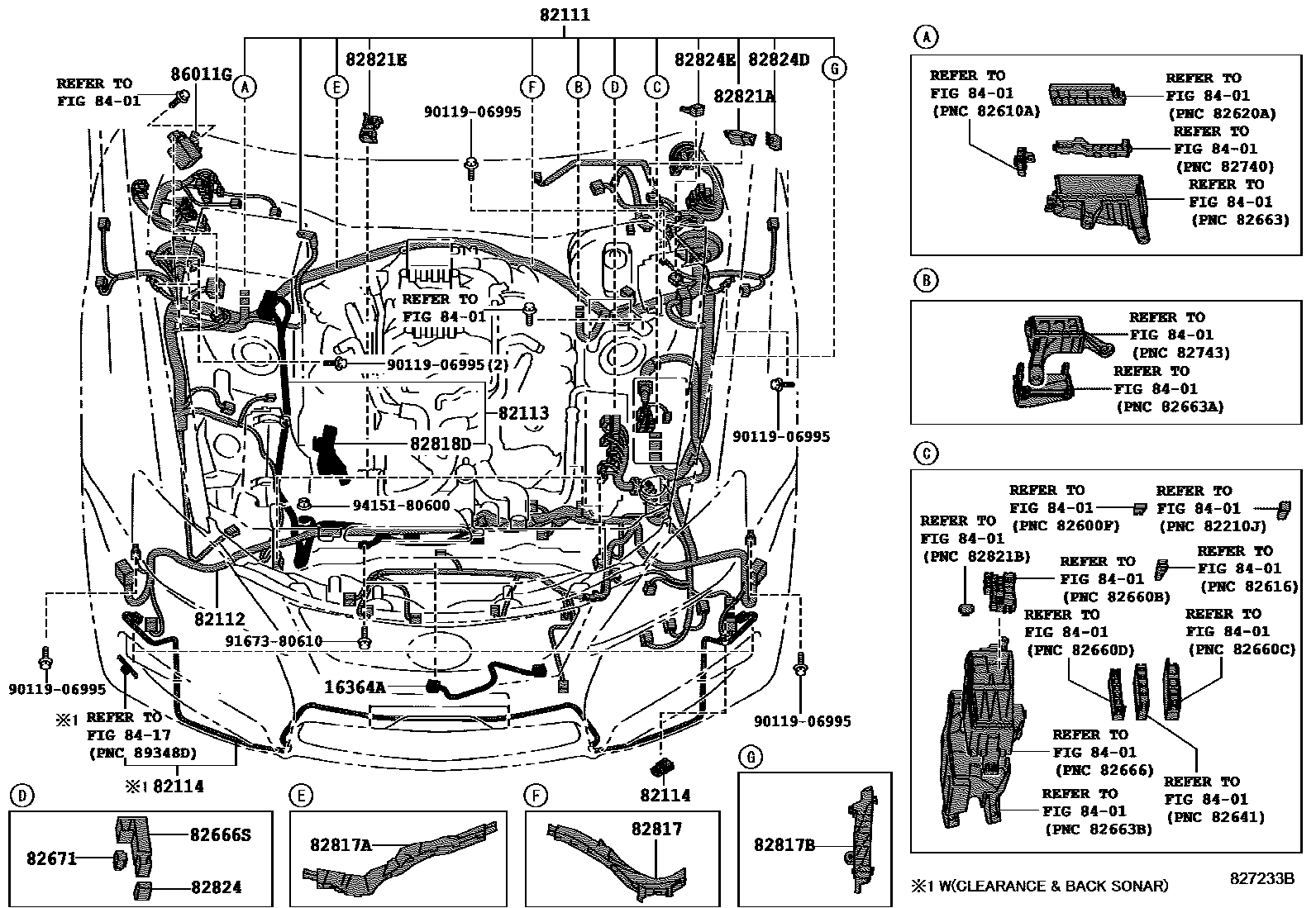

22 parts on this diagram · 11 diagrams in section
