INTERIOR LAMP
81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080KLAMP ASSY, CONSOLE BOX ILLUMINATION
81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81090LAMP ASSY, INTERIOR ILLUMINATION, NO.2
81230LAMP ASSY, COURTESY
81230BBULB(FOR COURTESY LAMP)
12V 5W
81240BBULB, ROOM LAMP, NO.1
12V 3W
81250LAMP ASSY, ROOM, NO.2
81250BBULB, ROOM LAMP, NO.2
12V 5W
81260LAMP ASSY, GLOVE BOX
81340LAMP ASSY, VANITY
BLACK,TRIM2#
81340BBULB (FOR VANITY LAMP)
12V 8W
81360TLAMP ASSY, SPOT
BLACK,TRIM2#
8202
9046710167

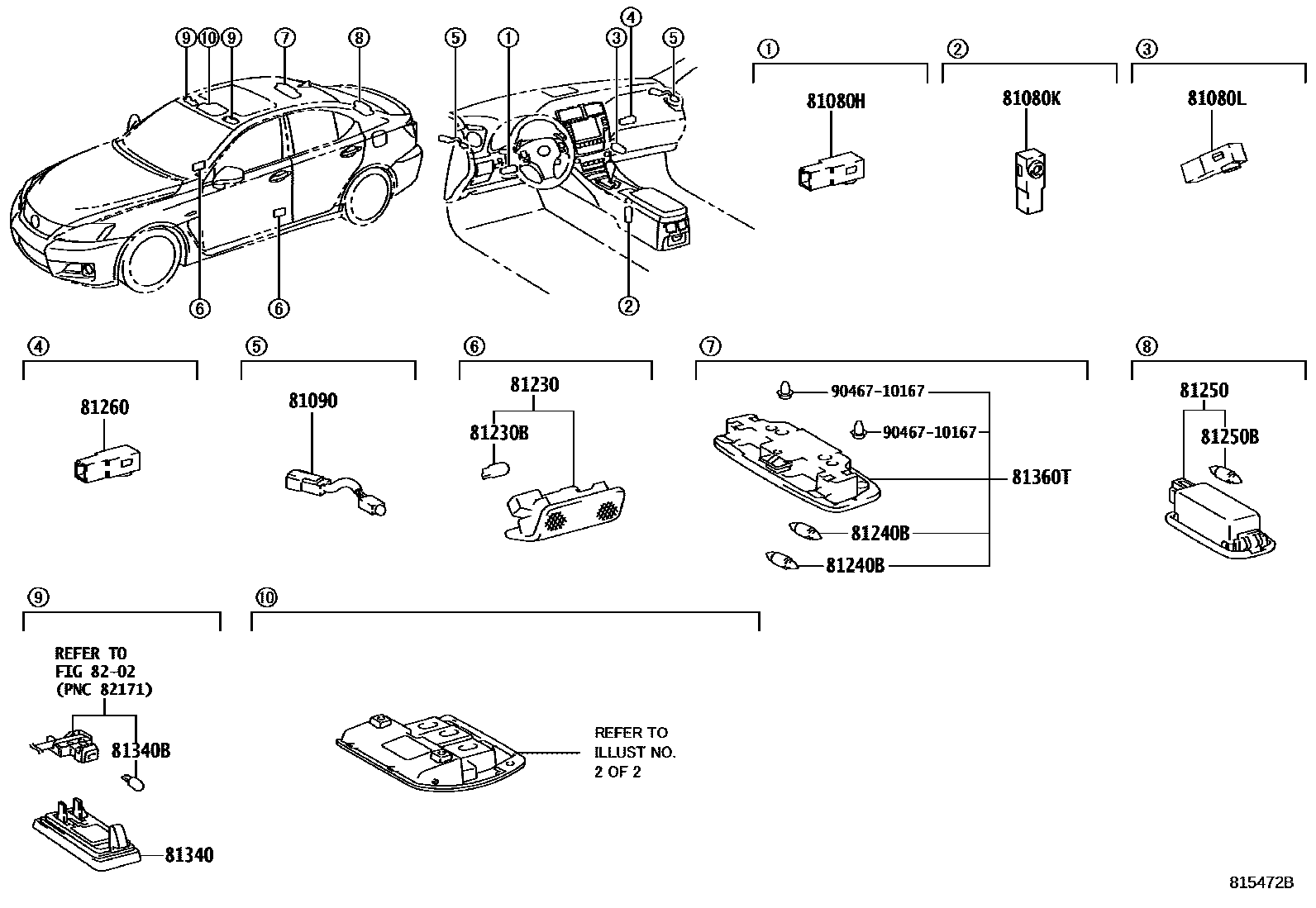

15 parts on this diagram · 2 diagrams in section
