HEADLAMP
5201
81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
81110DBULB(FOR HEADLAMP, NO.2)
12V65W(SAE),60W(ECE)
81110LBULB, DISCHARGE HEADLAMP
42V 35W
81125CORD, HEADLAMP
81134GASKET, HEADLAMP
81135UNIT ASSY, HEADLAMP, RH
81135CCOVER, HEADLAMP BACK, NO.1
81144DCAP, HEADLAMP LOCKING
81145BGASKET, HEADLAMP COVER, NO.1
81175UNIT ASSY, HEADLAMP, LH
81193APROTECTOR, HEADLAMP, RH
81193DRETAINER, RH HEADLAMP PROTECTOR, UPPER LH
81194APROTECTOR, HEADLAMP, LH
81194DRETAINER, LH HEADLAMP PROTECTOR, UPPER LH
81195BRETAINER, RH HEADLAMP PROTECTOR, LOWER RH
81196CRETAINER, LH HEADLAMP PROTECTOR, LOWER LH
81510DBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER
85661MOTOR, HEADLAMP LEVELING, RH
85662MOTOR, HEADLAMP LEVELING, LH
85669PACKING, HEADLAMP LEVELING MOTOR BASE
9007502056
main90075-02056
9010506298
main90105-06298
9010906374
main90109-06374
9015950311
main90159-50311

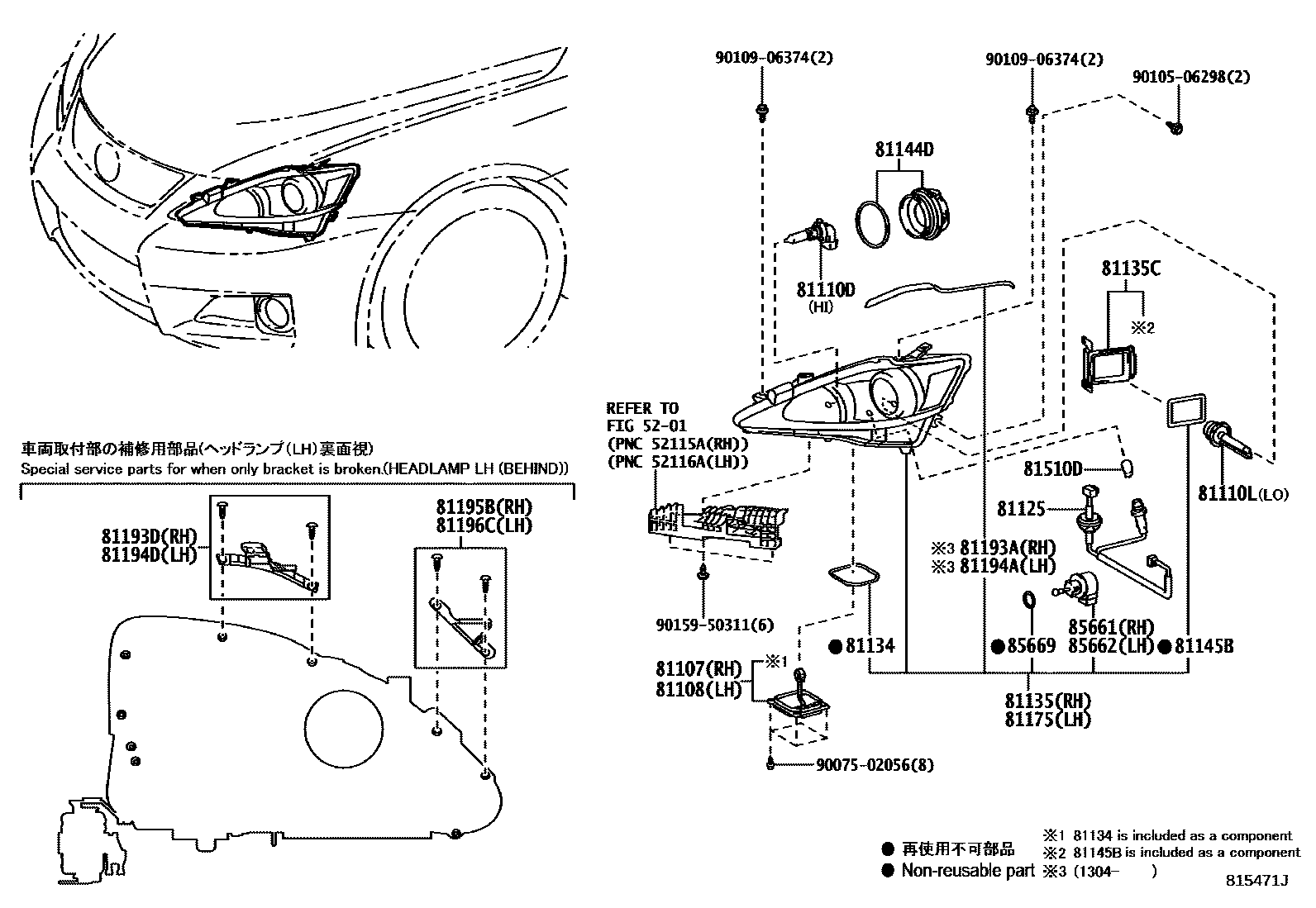

26 parts on this diagram · 1 diagram in section
