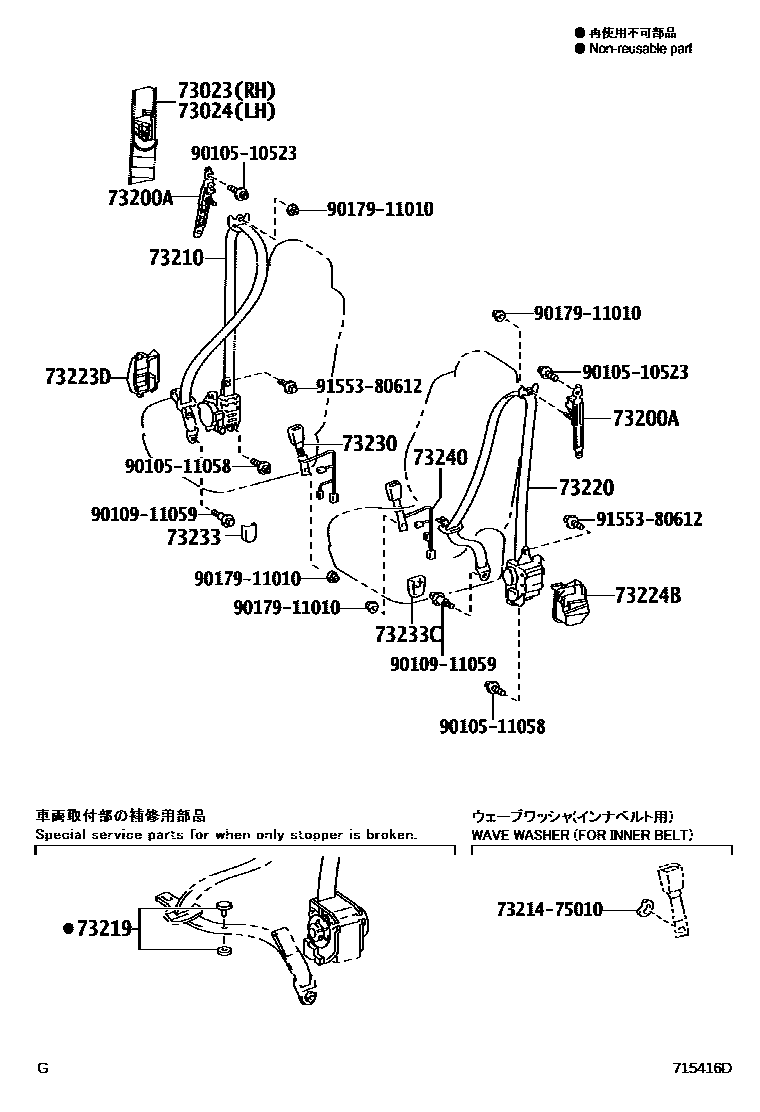

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-53020-C0iUSE20201008-201408

BLACK,TRIM2#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-53020-C0iUSE20201008-201408

BLACK,TRIM2#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-53010iUSE20201008

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-53420-C1iUSE20201008-201408

PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB),BLACK,TRIM2#

73219STOPPER, TONGUE PLATE

main73219-33010iUSE20201008

BLACK

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-53310-C1iUSE20201008-201408

PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB),BLACK,TRIM2#

73223DCOVER, FRONT SEAT BELT RETRACTOR, RH

main73223-53010iUSE20201008

73224BCOVER, FRONT SEAT BELT RETRACTOR, LH

main73224-53010iUSE20201008

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-53140-C0iUSE20201008-201408

BLACK,TRIM2#

73233COVER, LAP BELT OUTER ANCHOR

main73233-52010-C0iUSE20201008-201408

BLACK,TRIM2#

sub73233-60020

sub73233-0C010

73233CCOVER, LAP BELT OUTER ANCHOR, LH

main73233-52010-C0iUSE20201008-201408

BLACK,TRIM2#

sub73233-60020

sub73233-0C010

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-53130-C0iUSE20201008-201408

BLACK,TRIM2#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010510523

main90105-10523

9010511058

main90105-11058

9010911059

main90109-11059

9017911010

main90179-11010

9155380612

main91553-80612

18 parts on this diagram · 2 diagrams in section
