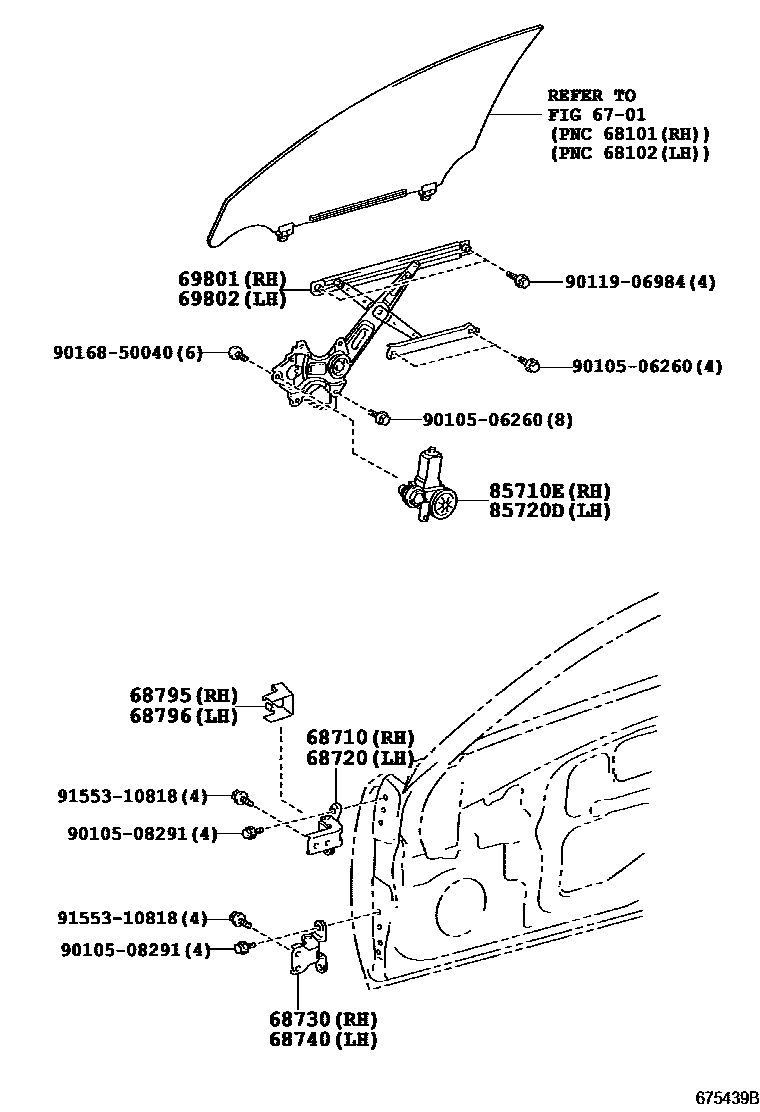

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151iUSE20201008-201408

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151iUSE20201008

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-33021iUSE20201008

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-33021iUSE20201008

68795COVER, DOOR HINGE, NO.1 RH

main68795-53010iUSE20201008

68796COVER, DOOR HINGE, NO.1 LH

main68796-53010iUSE20201008

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-30260iUSE20201008

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-30260iUSE20201008

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-53050iUSE20201008-201209

sub85710-53051

main85710-53051iUSE20201210

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-53050iUSE20201008-201209

sub85720-53051

main85720-53051iUSE20201210

9010506260

main90105-06260

9010508291

main90105-08291

9011906984

main90119-06984

9016850040

main90168-50040

9155310818

main91553-10818

16 parts on this diagram · 1 diagram in section
