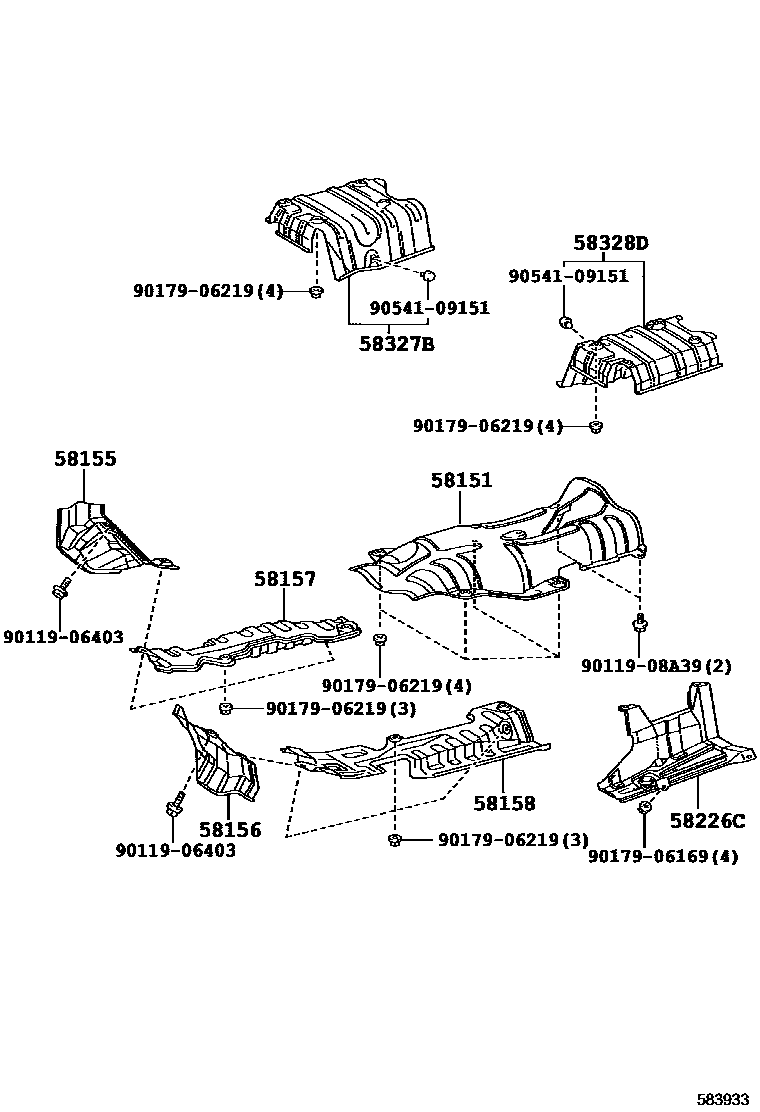

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-53030iUSE20201008

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-30050iUSE20201008

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-30120iUSE20201008

58157INSULATOR, FRONT FLOOR HEAT, NO.5

main58157-30072iUSE20201008-201110

sub58157-30073

main58157-30073iUSE20201111

58158INSULATOR, FRONT FLOOR HEAT, NO.6

main58158-30062iUSE20201008-201201

sub58158-30063

main58158-30063iUSE20201202

58226CPLATE, AIR GUIDE, OUTSIDE RH

main58226-53020iUSE20201008

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-53020iUSE20201008

58328DINSULATOR, MAIN MUFFLER HEAT, LH

main58328-53020iUSE20201008

9011906403

main90119-06403

9011908A39

main90119-08A39

9017906169

main90179-06169

9017906219

main90179-06219

9054109151

main90541-09151

13 parts on this diagram · 1 diagram in section
