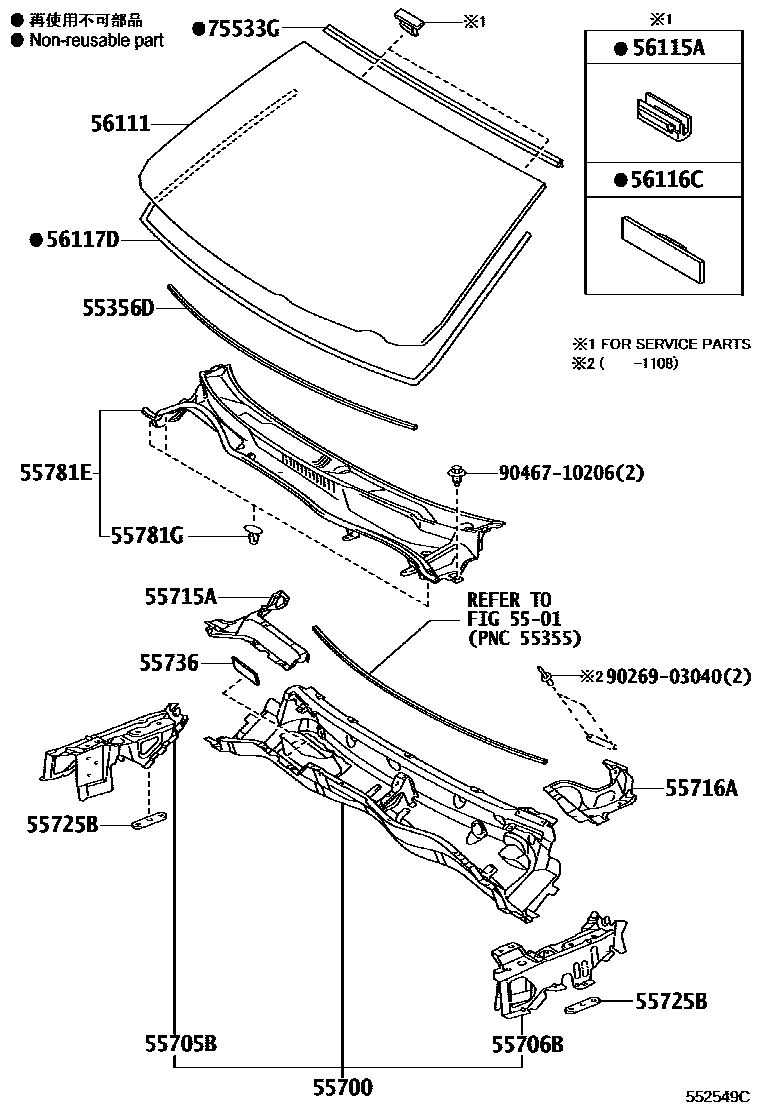

COWL PANEL & WINDSHIELD GLASS

5501

55356DCUSHION, INSTRUMENT PANEL, NO.2

main55355-53040iUSE20201008

55700PANEL ASSY, FRONT

main55700-53901iUSE20201008-201108

sub55700-53904

main55700-53906iUSE20201108-201408

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-53010iUSE20201008

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-53010iUSE20201008

55715ABRACE, COWL TOP TO APRON, RH

main55715-53040iUSE20201008

55716ABRACE, COWL TOP TO APRON, LH

main55716-53040iUSE20201008

55725BREINFORCEMENT, HOOD HINGE MOUNTING

main55725-51020iUSE20201008

55736SEAL, WATER GUARD PLATE

main55736-53010iUSE20201008

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-53090iUSE20201008

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-08108iUSE20201008

56111GLASS, WINDSHIELD

main56101-53933iUSE20201008-201207

*LAM,T=4.7,GREEN

sub56101-53954

main56101-53954iUSE20201208

*LAM,T=4.7,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30110iUSE20201008

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iUSE20201008

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-64010iUSE20201008

L=2665

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-53040iUSE20201008

9026903040

main90269-03040

9046710206

main90467-10206

18 parts on this diagram · 1 diagram in section
