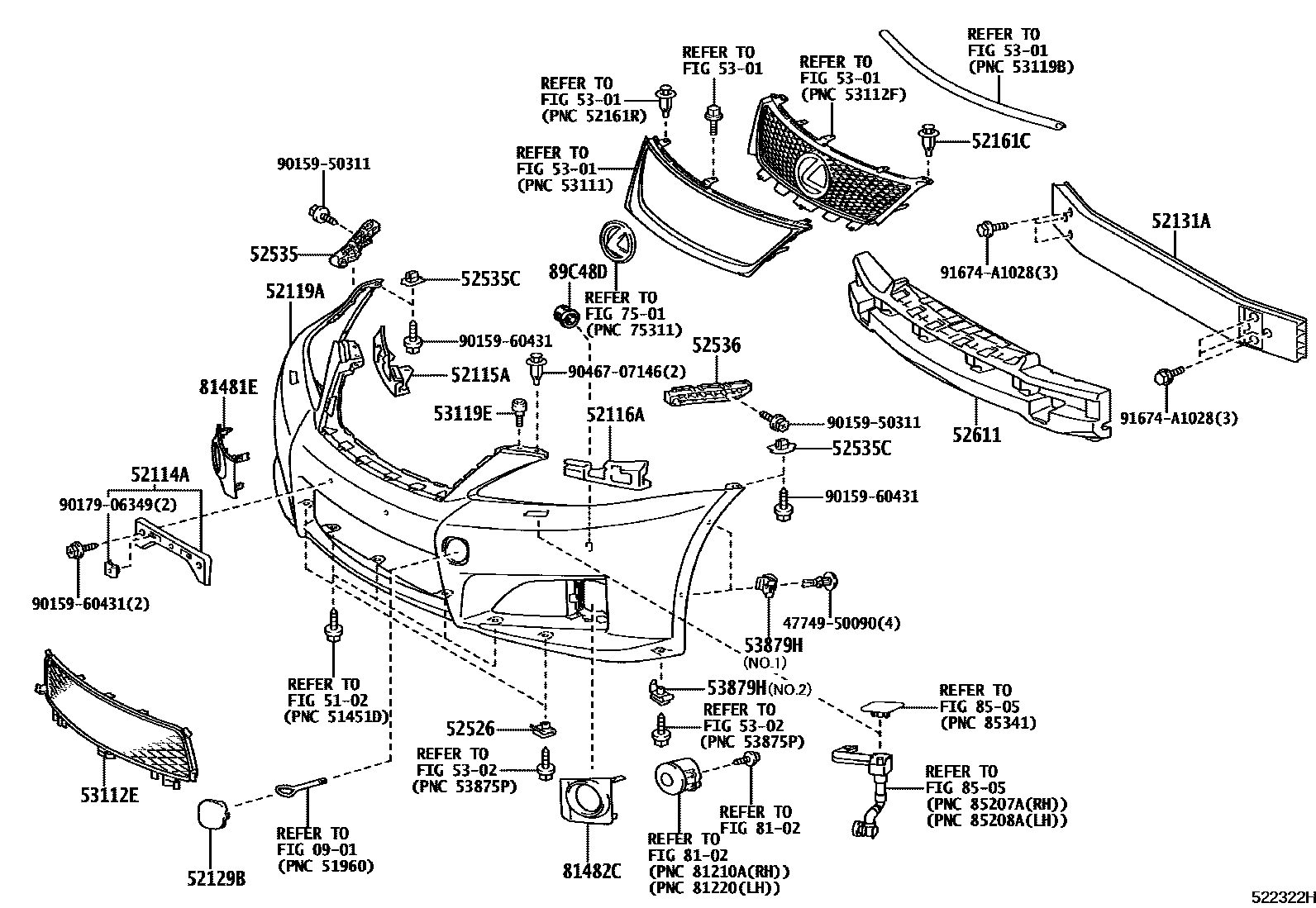

FRONT BUMPER & BUMPER STAY

0901

5102

52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-53100iUSE20201008

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-53041iUSE20201008-201010

sub52115-53042

main52115-53042iUSE20201011-201408

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-53041iUSE20201008-201010

sub52116-53042

main52116-53042iUSE20201011-201408

52119ACOVER, FRONT BUMPER

main52119-53974iUSE20201008-201408

PAINT REQ.

52129BCOVER, FRONT BUMPER, LOWER

main52129-53903iUSE20201008-201408

52131AREINFORCEMENT, FRONT BUMPER

main52131-30260iUSE20201008

52161CPIECE, FRONT BUMPER

main52161-16010iUSE20201008-201408

sub52161-0K040

52526RETAINER, FRONT BUMPER, LOWER SIDE

main52526-53020iUSE20201008-201408

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-53020iUSE20201008

52535CRETAINER, FRONT BUMPER SIDE

main52535-50060iUSE20201008

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-53020iUSE20201008

52611ABSORBER, FRONT BUMPER ENERGY

main52611-53080iUSE20201008

5301

5302

53112EGRILLE, RADIATOR, LOWER NO.1

main53112-53020iUSE20201008

NO PAINT REQ.

53119EPROTECTOR, RADIATOR GRILLE

main53119-53021iUSE20201008

53879HRETAINER, FRONT FENDER LINER

main53879-17020iUSE20201008-201408

NO.2

main53879-50020iUSE20201008-201408

NO.1

7501

8102

81481ECOVER, FOG LAMP, RH

main81481-53010iUSE20201008-201408

81482CCOVER, FOG LAMP, LH

main81482-53010iUSE20201008-201408

8505

89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER

4774950090CLIP, PIN HOLD

main47749-50090

9015950311

main90159-50311

9015960431

main90159-60431

9017906349

main90179-06349

9046707146

main90467-07146

91674A1028

main91674-A1028

31 parts on this diagram · 1 diagram in section
