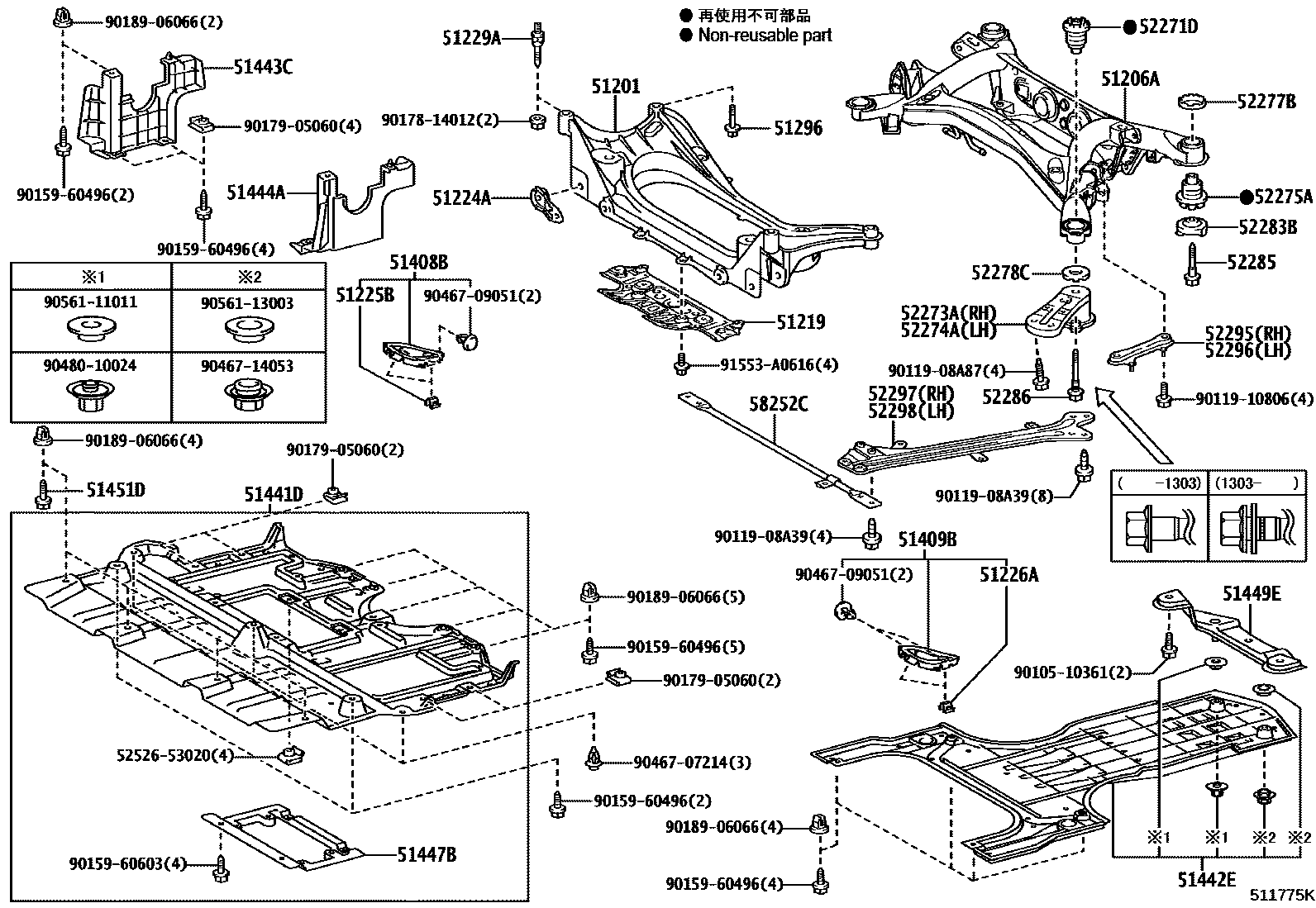

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-30130iUSE20¥66,200201008-201012

sub51201-30140¥41,700

main51201-30140iUSE20¥41,700201012

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-30101iUSE20¥84,500201008-201309

sub51206-30160¥84,500

main51206-30102iUSE20¥106,000201310

51219PROTECTOR, FRONT SUSPENSION MEMBER, LWR

main51219-30031iUSE20¥4,630201008

51224APLATE, FRONT SUSPENSION MENBER BRACE

main51224-30030iUSE20¥1,760201008

51225BBRACKET, FRONT SUSPENSION MEMBER, RH

main51226-30020iUSE20¥140201008

51226ABRACKET, FRONT SUSPENSION MEMBER, LH

main51226-30020iUSE20¥140201008

51229ABOLT, FRONT SUSPENSION MEMBER MOUNTING

main90951-01004iUSE20¥590201008-201111

main90951-01006iUSE20¥310201111

51296BOLT, FRONT SUSPENSION MEMBER MOUNTING

main90119-16013iUSE20¥870201008-201111

main90119-16021iUSE20¥540201111-201408

51408BCOVER SUB-ASSY, ENGINE UNDER, RH

main51408-30060iUSE20¥1,150201008

51409BCOVER SUB-ASSY, ENGINE UNDER, LH

main51409-30060iUSE20¥1,450201008

51441DCOVER, ENGINE UNDER

main51410-53081iUSE20¥36,200201008-201408

51442ECOVER, ENGINE UNDER, NO.2

main51442-53031iUSE20¥20,700201008

51443CCOVER, ENGINE UNDER, REAR RH

main51443-30141iUSE20¥1,570201008

51444ACOVER, ENGINE UNDER, REAR LH

main51444-30171iUSE20¥1,570201008

51447BPROTECTOR, OIL PAN

main51447-53020iUSE20¥2,700201008

51449EBRACKET, ENGINE UNDER COVER AIR GUIDE

main51449-53050iUSE20¥2,200201008

51451DSCREW, NO.1

main90159-60477iUSE20¥70201008-201408

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-53041iUSE20¥3,340201008

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52203-30070iUSE20¥2,670201008

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52204-30050iUSE20¥2,670201008

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-53041iUSE20¥4,930201008

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-53050iUSE20¥1,330201008

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52278-53031iUSE20¥680201008

52283BSTOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER

main52283-30060iUSE20¥1,190201008

52285BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1

main52285-30021iUSE20¥1,360201008-201206

main90119-14154iUSE20¥360201207

52286BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2

main52286-53020iUSE20¥2,680201008-201303

REFER ILLUST.

main90119-14148iUSE20¥490201303

REFER ILLUST.

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-30030iUSE20¥2,040201008

52296BRACE, REAR SUSPENSION MEMBER, LH

main52295-30030iUSE20¥2,040201008

52297BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

main52297-53030iUSE20¥5,100201008

52298BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH

main52298-53030iUSE20¥5,100201008

58252CBRACE, FLOOR PANEL, REAR NO.1

main58252-53020iUSE20¥5,300201008

5252653020RETAINER, FRONT BUMPER, LOWER SIDE

main52526-53020¥110

9010510361

main90105-10361¥110

9011908A39

main90119-08A39¥80

9011908A87

main90119-08A87¥100

9011910806

main90119-10806¥810

9015960496

main90159-60496¥60

9015960603

main90159-60603¥60

9017814012

main90178-14012¥210

9017905060

main90179-05060¥70

9018906066

main90189-06066¥80

9046707214

main90467-07214¥70

9046709051

main90467-09051¥120

9046714053

main90467-14053¥100

9048010024

main90480-10024¥100

9056111011

main90561-11011¥70

9056113003

main90561-13003¥70

91553A0616

main91553-A0616¥60

48 parts on this diagram · 1 diagram in section
