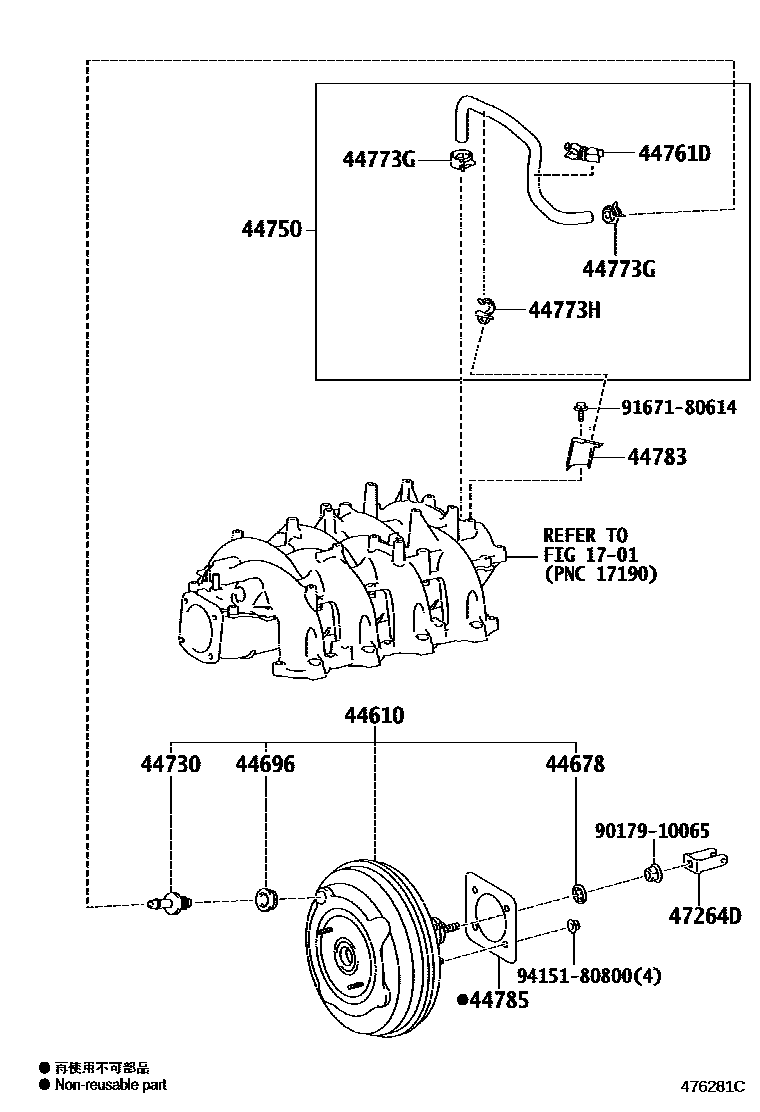

BRAKE BOOSTER & VACUUM TUBE

1701

44610BOOSTER ASSY, BRAKE

main44610-53340iUSE20¥50,300201008-201408

44678RETAINER, BOOSTER AIR CLEANER

main44678-2B440iUSE20201008-201408

44696GROMMET, CHECK VALVE

main90480-24015iUSE20¥130201008

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-28030iUSE20¥1,360201008

44750HOSE ASSY, VACUUM

main44750-53200iUSE20201008

44761DCLAMP, VACUUM CHECK VALVE TO CONNECTOR TUBE

main44783-53050iUSE20201008

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main96133-41500iUSE20¥140201008

44773HCLAMP(FOR UNION TO CHECK VALVE HOSE)

main90469-17002iUSE20¥180201008

44783CLAMP, VACUUM HOSE

main44783-53040iUSE20201008

44785GASKET, BRAKE BOOSTER

main44785-47010iUSE20¥250201008

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-30060iUSE20¥320201008

9017910065

main90179-10065¥90

9167180614

main91671-80614¥60

9415180800

main94151-80800¥80

15 parts on this diagram · 1 diagram in section
