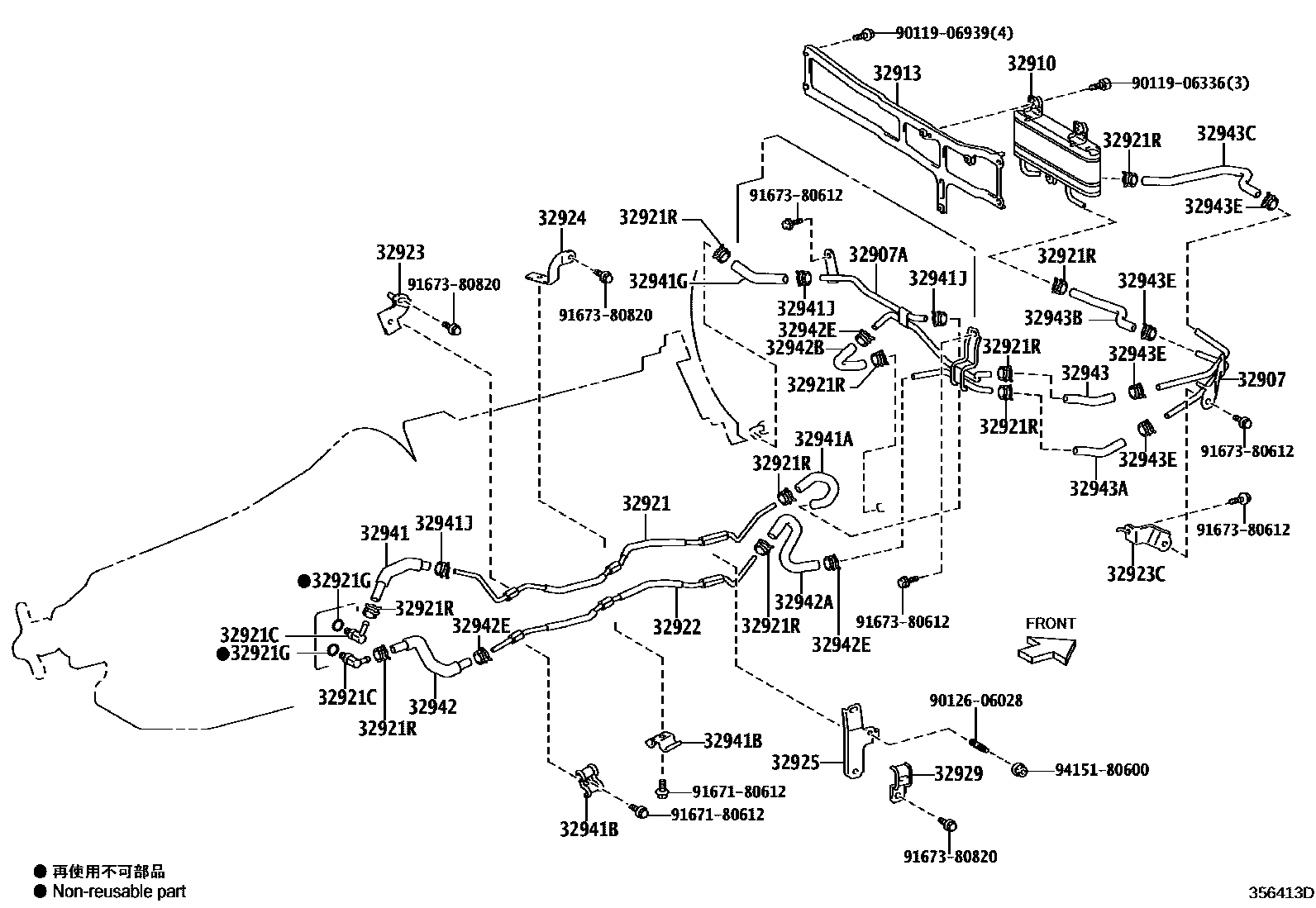

OIL COOLER & TUBE (ATM)
32907TUBE SUB-ASSY, OIL COOLER OUTLET, NO.2
32907ATUBE, OIL COOLER
32910COOLER ASSY, OIL
32913BRACKET, OIL COOLER
32921TUBE, OIL COOLER INLET, NO.1
32921CUNION(FOR OIL COOLER TUBE)
sub90407-14034
32921GRING, O(FOR OIL COOLER TUBE UNION)
32921RCLIP, NO.2(FOR OIL COOLER HOSE)
32922TUBE, OIL COOLER OUTLET, NO.1
32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32923CCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4
32924CLAMP, OIL COOLER TUBE, NO.2
32925CLAMP, OIL COOLER TUBE, NO.3
32929CLAMP, FLEXIBLE HOSE, NO.2
32941HOSE, OIL COOLER INLET, NO.1
32941AHOSE, OIL COOLER INLET, NO.2
32941BCLAMP(FOR OIL COOLER TUBE)
32941GHOSE, OIL COOLER INLET, NO.3
32941JCLIP, NO.1(FOR OIL COOLER HOSE)
32942HOSE, OIL COOLER OUTLET, NO.1
32942AHOSE, OIL COOLER OUTLET, NO.2
32942BHOSE, OIL COOLER OUTLET, NO.3
32942ECLIP, NO.2(FOR OIL COOLER HOSE)
32943HOSE, TRANSMISSION OIL COOLER, NO.1
32943AHOSE, TRANSMISSION OIL COOLER, NO.2
32943BHOSE, TRANSMISSION OIL COOLER
32943CHOSE, TRANSMISSION OIL COOLER, NO.3
32943ECLIP, NO.3(FOR OIL COOLER HOSE)
9011906336
main90119-06336
9011906939
main90119-06939
9012606028
main90126-06028
9167180612
main91671-80612
9167380612
main91673-80612
9167380820
main91673-80820
9415180600
main94151-80600
35 parts on this diagram · 1 diagram in section
