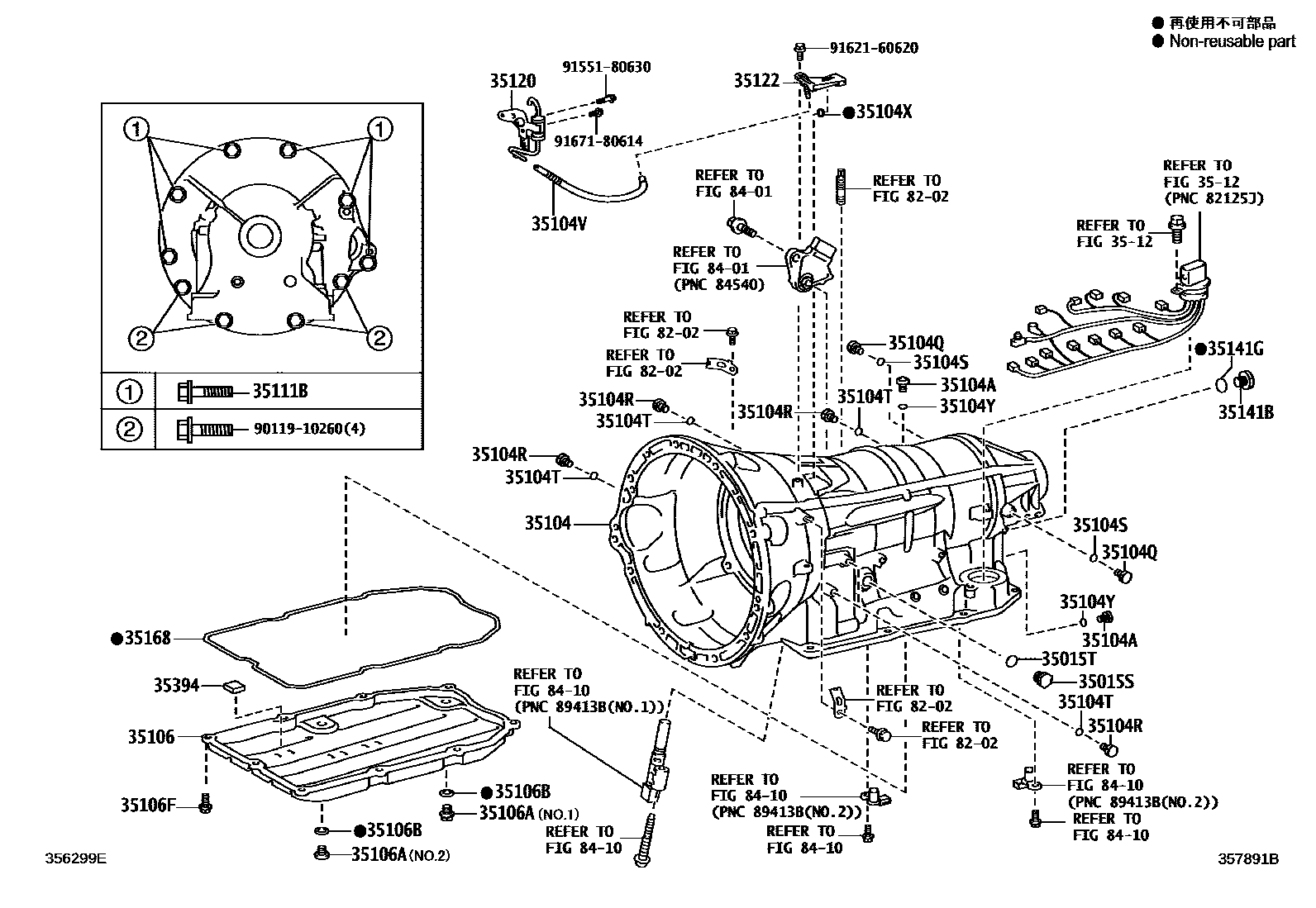

TRANSMISSION CASE & OIL PAN (ATM)

35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)

main90341-18059i201008

35015TRING, O(FOR TRANSMISSION CASE ADAPTER)

main90301-15004i201008

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-50030i201008

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-14011i201008

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-12036i201008

35104RPLUG, NO.2 (FOR TRANSAXLE CASE)

main90341-08001i201008

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-09026i201008

35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)

main90301-06196i201008

35104VHOSE (FOR BREATHER PLUG)

main90447-11060i201008

35104XRING, O (FOR BREATHER PLUG)

main90301-04015i201008

35104YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-11030i201008

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-30300i201008

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011i201008

NO.1

main90341-10021i201008

NO.2

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010i201008

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06982i201008

35111BBOLT (FOR TRANSMISSION HOUSING & ENGINE SETTING)

main91619-61250i201008

*12-1.25PX50-30

3512VALVE BODY & OIL STRAINER (ATM)

→ Go to FIG 35-12

35120BREATHER ASSY, TRANSMISSION

main35120-53010i201008-201408

35122TUBE, BREATHER (FOR AUTOMATIC TRANSAXLE)

main35122-53020i201008

35141BPLUG (FOR AUTOMATIC TRANSMISSION CASE)

main90341-24017i201008

35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-20013i201008

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-50010i201008

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-48010i201008

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9011910260

main90119-10260

9155180630

main91551-80630

9162160620

main91621-60620

9167180614

main91671-80614

30 parts on this diagram · 1 diagram in section
