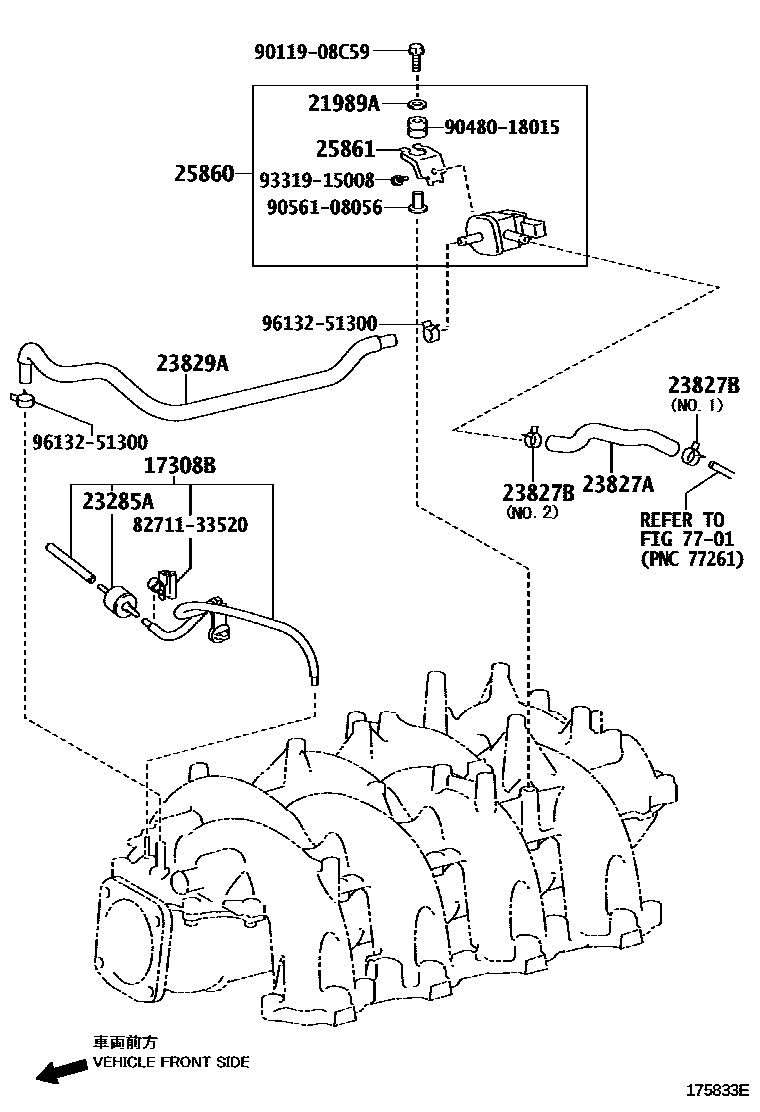

VACUUM PIPING

17308BHOSE SUB-ASSY, VACUUM

main17308-38010i2URGSE..USE20201008

21989AINSULATOR, PLATE

main21989-38010i2URGSE..USE20201008

23285AVALVE, CHECK, NO.1

main90917-10065i2URGSE..USE20201008

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-38040i2URGSE..USE20201008-201408

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90467-15022i2URGSE..USE20201008-201408

NO.1

main96132-51300i2URGSE..USE20201008-201408

NO.2

23829AHOSE, FUEL VAPOR FEED

main23829-38050i2URGSE..USE20201008

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-38030i2URGSE..USE20201008

25861BRACKET, VACUUM SWITCHING VALVE

main25861-38010i2URGSE..USE20201008

7701

8271133520WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-33520

9011908C59

main90119-08C59

9048018015

main90480-18015

9056108056

main90561-08056

9331915008

main93319-15008

9613251300

main96132-51300

15 parts on this diagram · 1 diagram in section
