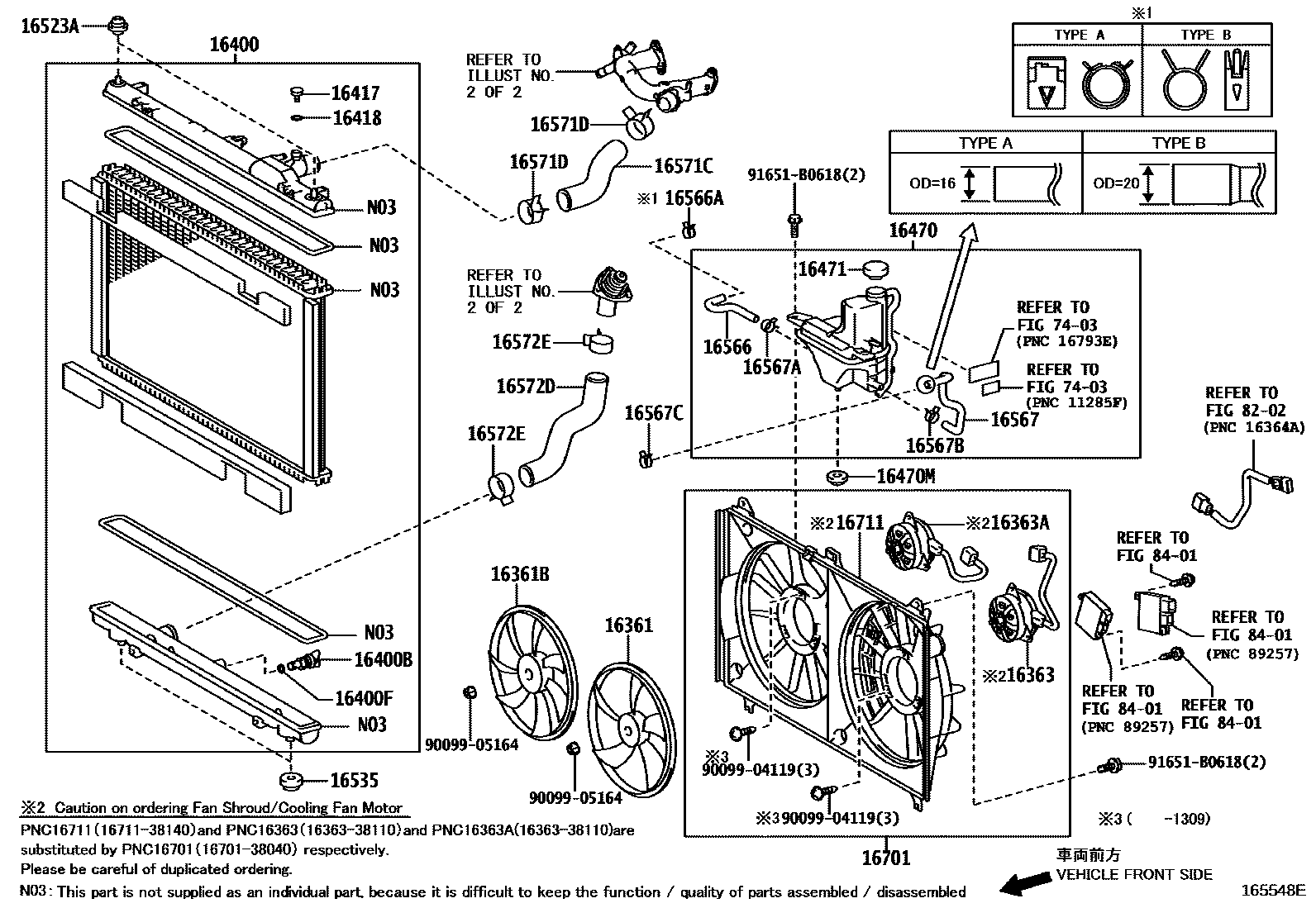

RADIATOR & WATER OUTLET
16361FAN
16361BFAN, NO.2
16363MOTOR, COOLING FAN
sub16701-38040
16363AMOTOR, COOLING FAN, NO.2
sub16701-38040
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16417COCK
16418PACKING
16470TANK ASSY, RADIATOR RESERVE
16470MGROMMET
16471CAP SUB-ASSY, RESERVE TANK
sub16475-28140
16523ACUSHION, RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
16566HOSE, RESERVE TANK OUTLET
16566ACLIP(FOR RESERVE TANK OUTLET)
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
16567HOSE(FOR RADIATOR RESERVE TANK)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
16567ACLIP(FOR RADIATOR RESERVE TANK HOSE)
16567BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.2)
16567CCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.3)
PNC 16567=TYPE B
PNC 16567=TYPE A
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
16701SHROUD SUB-ASSY, FAN
16711SHROUD, FAN
sub16701-38040
7403
8202
8401
9009904119
main90099-04119
9009905164
main90099-05164
91651B0618
main91651-B0618
32 parts on this diagram · 2 diagrams in section
