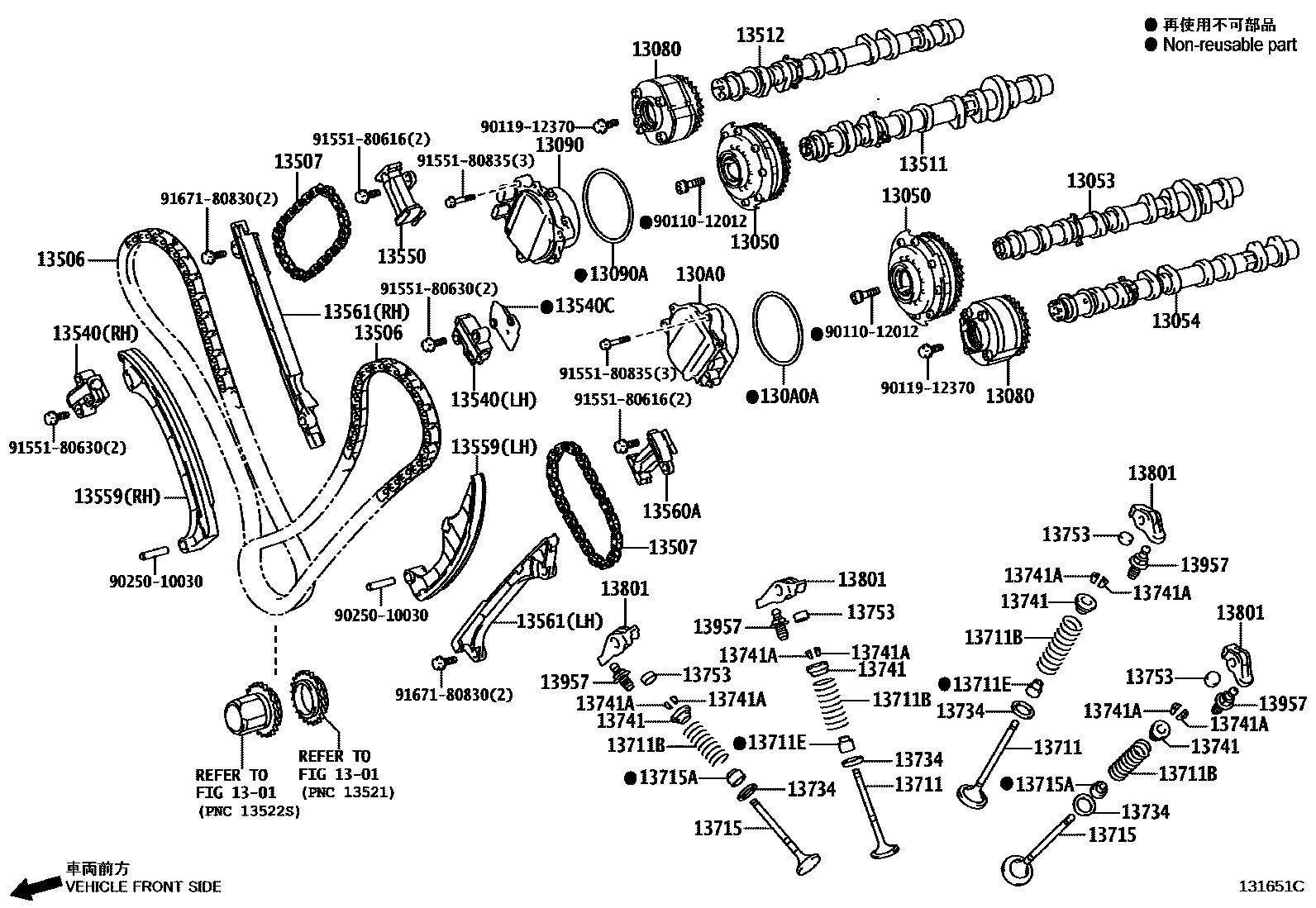

CAMSHAFT & VALVE
1301
13050GEAR ASSY, CAMSHAFT TIMING
MARK 13050-38022
13053CAMSHAFT SUB-ASSY, NO.3
13054CAMSHAFT SUB-ASSY, NO.4
13080GEAR ASSY, CAMSHAFT TIMING EXHAUST, LH
13090MOTOR ASSY, CAM TIMING CONTROL W/EDU, RH
13090ARING, O(FOR CAM TIMING CONTROL MOTOR RH)
130A0MOTOR ASSY, CAM TIMING CONTROL W/EDU, LH
130A0ARING, O(FOR CAM TIMING CONTROL MOTOR LH)
13506CHAIN SUB-ASSY
13507CHAIN SUB-ASSY, NO.2
13511CAMSHAFT
13512CAMSHAFT, NO.2
13540TENSIONER ASSY, CHAIN, NO.1
RH
13540CGASKET(FOR CHAIN TENSIONER)
13550TENSIONER ASSY, CHAIN, NO.2
13559SLIPPER, CHAIN TENSIONER
RH
LH
13560ATENSIONER ASSY, CHAIN, NO.3
13561DAMPER, CHAIN VIBRATION, NO.1
RH
LH
13711VALVE, INTAKE
13711BSPRING, COMPRESSION(FOR INNER)
INTAKE SIDE
EXHAUST SIDE
13711ESEAL, INTAKE VALVE STEM OIL
13715VALVE, EXHAUST
13715ASEAL, EXHAUST VALVE STEM OIL
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13753SHIM, VALVE ADJUSTING
T=2.000
T=2.020
T=2.040
T=2.060
T=2.080
T=2.100
T=2.120
T=2.140
T=2.160
T=2.180
T=2.200
T=2.220
T=2.240
T=2.260
T=2.280
T=2.300
T=2.320
T=2.340
T=2.360
T=2.380
T=2.400
T=2.420
T=2.440
T=2.460
T=2.480
T=2.500
T=2.520
T=2.540
T=2.560
T=2.580
T=2.600
T=2.620
T=2.640
T=2.660
T=2.680
T=2.700
T=2.720
T=2.740
T=2.760
T=2.780
T=2.800
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
sub13801-38030
13957PIVOT, VALVE ROCKER ARM
9011012012
main90110-12012
9011912370
main90119-12370
9025010030
main90250-10030
9155180616
main91551-80616
9155180630
main91551-80630
9155180835
main91551-80835
9167180830
main91671-80830
37 parts on this diagram · 1 diagram in section
