STANDARD TOOL

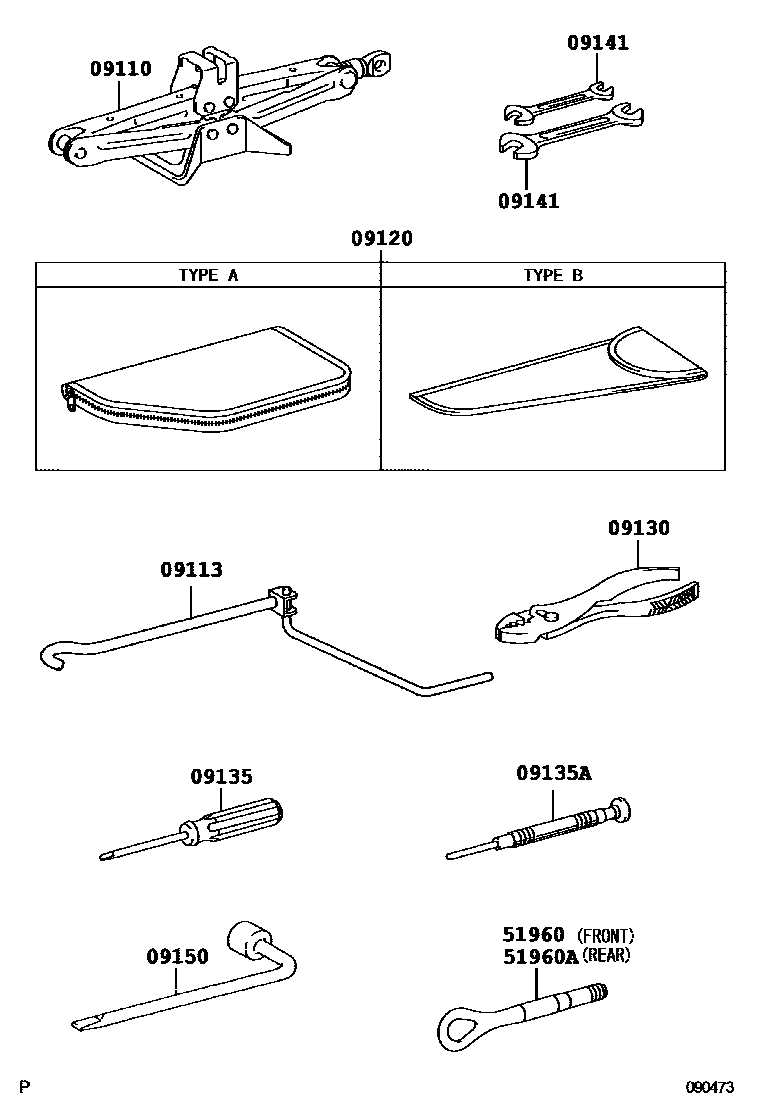

Parts diagram
09110JACK ASSY
main09111-33030i201011
sub09111-76010
main09111-50051i201008-201010
sub09111-76011
09113HANDLE, JACK
main09113-44010i201008
09120BAG, TOOL
main09120-28020i201008
TYPE B:REFER ILLUST.
main09120-53010i201208
TYPE A:REFER ILLUST.
main09120-53020i201008-201208
TYPE A:REFER ILLUST.
09130PLIERS
main09130-50040i201008
09135DRIVER, SCREW
main99915-10700i201008
09135ABIT, SCREW DRIVER
main09135-53010i201008-201208
09141SPANNER
main09141-60010i201008
8 X 10
main09141-60020i201008
12 X 14
09150WRENCH, HUB NUT BOX
main09150-53010i201008-201205
sub09150-76020
main09150-76020i201206-201408
51960HOOK ASSY, FRONT
main51961-53010i201008-201408
51960AHOOK ASSY, REAR
main51961-53010i201008-201408

10 parts on this diagram · 1 diagram in section
