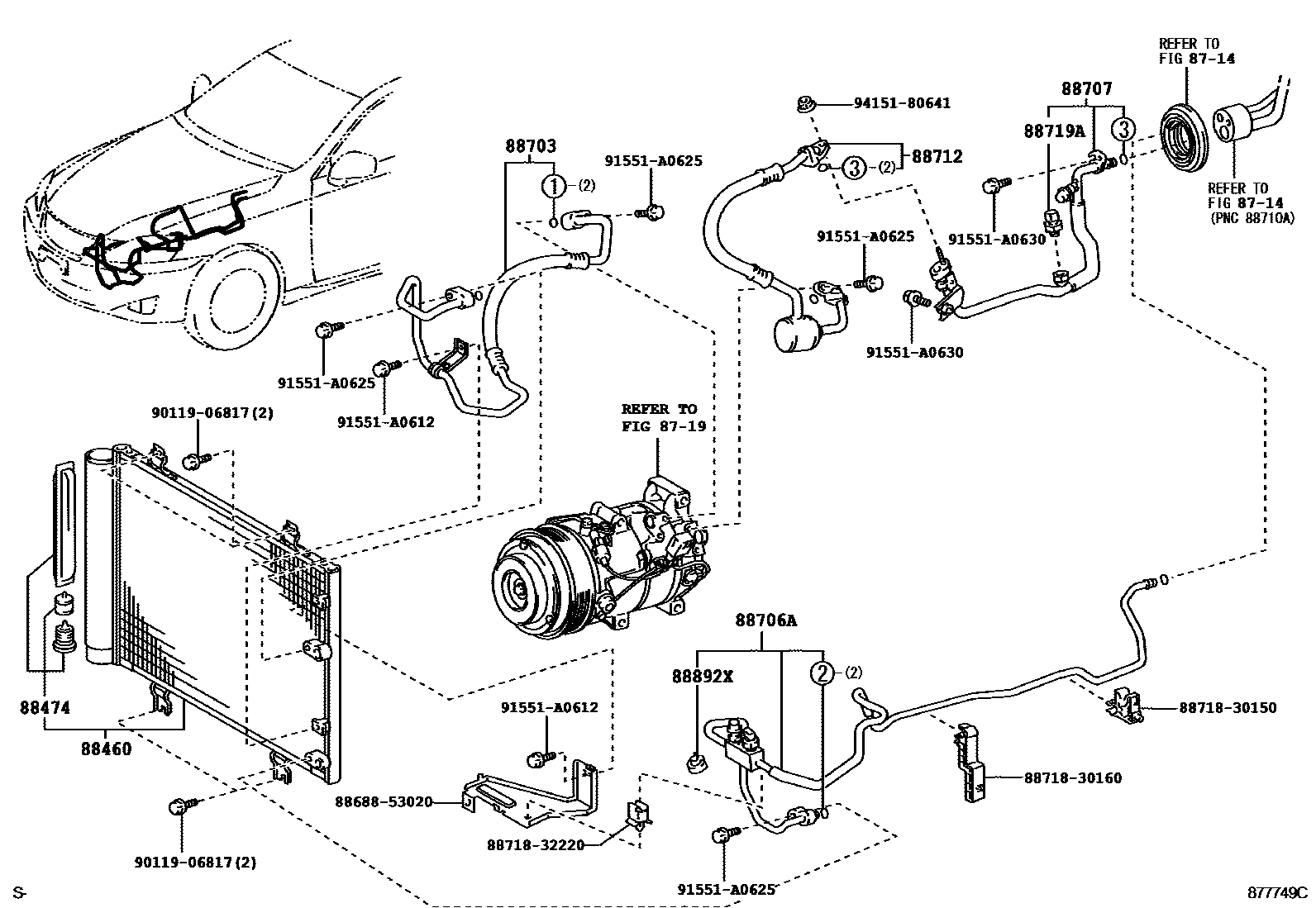

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1O-RING

8714

8719

88460CONDENSER ASSY, COOLER

main88460-53030iGSE20200508-201304

main88460-53040iALE20..LUX;ALE20..LHD..SPO200511-201208

88474DRYER, COOLER

main88474-17010iALE20,GSE20200508-201008

88703HOSE SUB-ASSY, DISCHARGE

main88703-53090iGSE20200508-201009

sub88703-53091

main88703-53091iGSE2#201009

88706ATUBE SUB-ASSY, LIQUID, A

main88706-53080iGSE20200508-201008

main88706-53090iALE20200511-201208

88707PIPE SUB-ASSY, SUCTION

main88707-53060iALE20200511-201208

main88707-53070iGSE20200508-201008

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-53100iGSE20200508-201008

main88712-53110iALE20200511-201008

main88712-53170iALE20201008-201208

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-26020iALE20,GSE20200508-201008

88892XCOVER, COOLER, NO.2

main88892-50120iALE20,GSE20201005-201008

8868853020BRACKET, COOLER DIAPHRAGM

main88688-53020

8871830150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-30150

8871830160PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-30160

8871832220PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-32220

9011906817

main90119-06817

91551A0612

main91551-A0612

91551A0625

main91551-A0625

91551A0630

main91551-A0630

9415180641

main94151-80641

19 parts on this diagram · 3 diagrams in section
