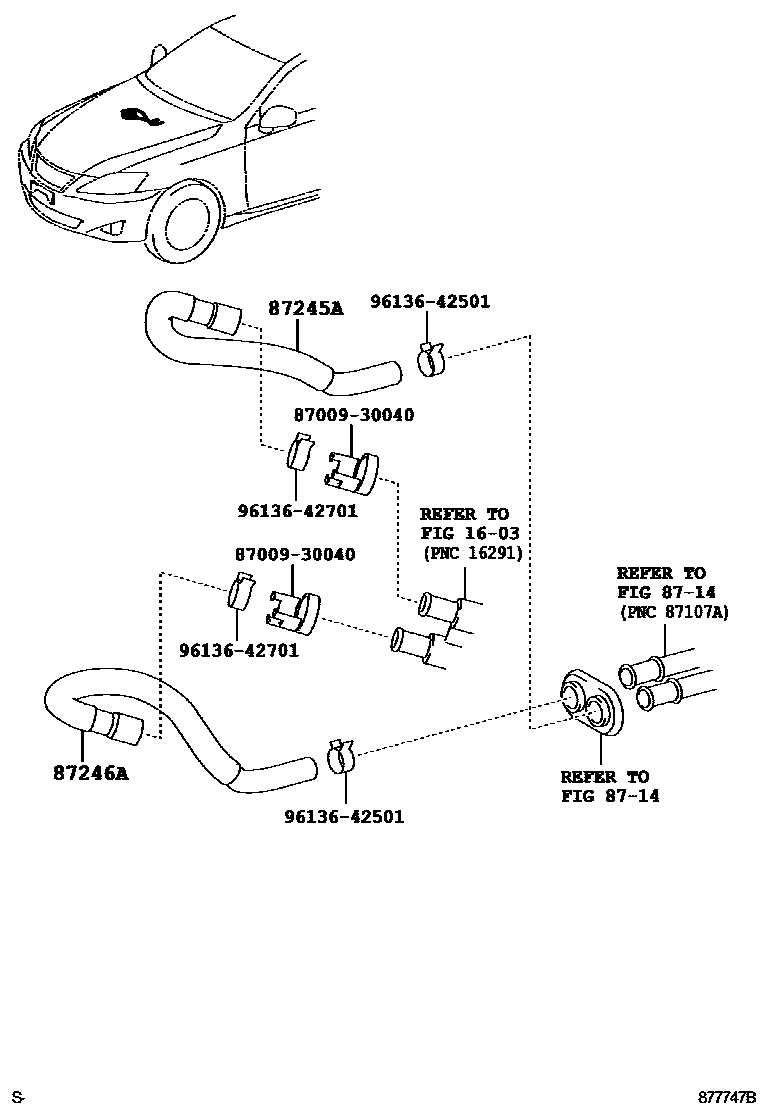

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1W(COMBUSTION HEATER)

1603

8714

87245AHOSE, HEATER WATER, INLET A

main87245-53160iALE20200511-201208

main87245-53180iGSE20¥1,660200508-201008

87246AHOSE, HEATER WATER, OUTLET A

main87245-53130iGSE20..LHD¥1,950200508-201008

main87245-53150iGSE2#..RHD¥1,690200508-201008

main87245-53170iALE20200511-201208

ADDITIONAL HEATER-COMBUSTION HEATER

main87245-53170iALE20..RHD..SPO200808-200908

8700930040HOSE SET, WATER, NO.1

main87009-30040¥230

9613642501

main96136-42501¥200

9613642701

main96136-42701¥200

7 parts on this diagram · 4 diagrams in section
