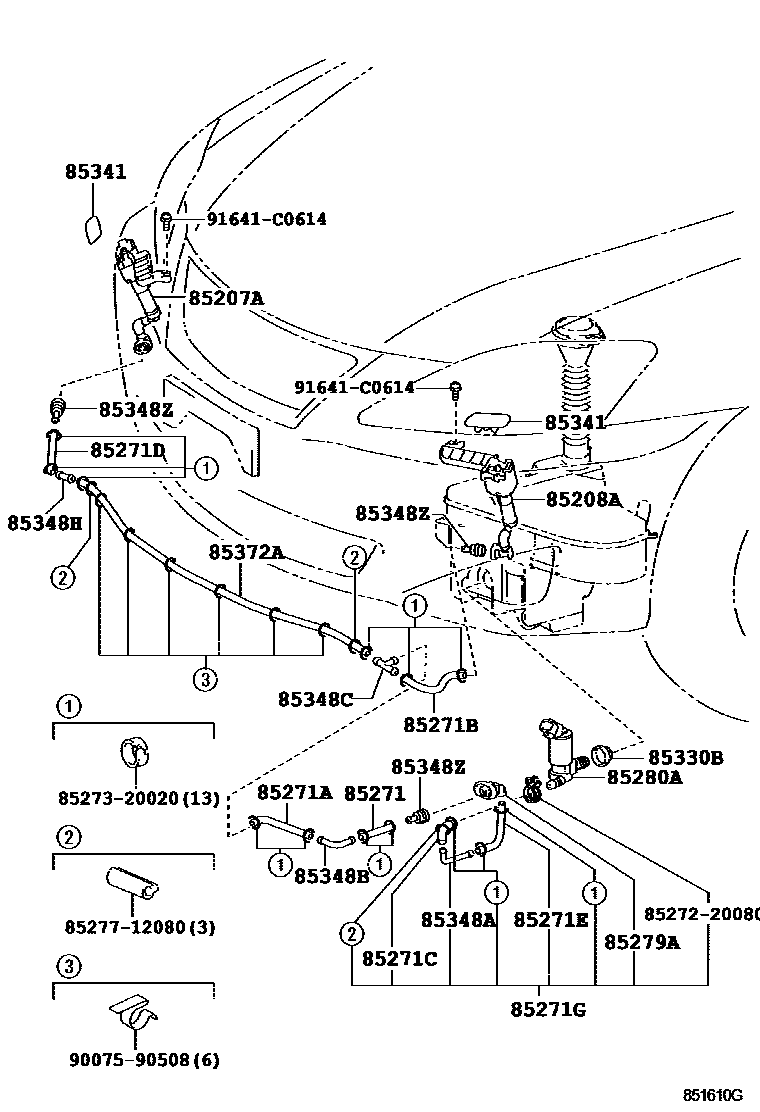

HEADLAMP CLEANER
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
HEADLAMP-DISCHARGE WITH/AUTO LEVELING
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
HEADLAMP-DISCHARGE WITH/AUTO LEVELING
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
85271HOSE, HEADLAMP CLEANER, NO.1
L=90
L=90,HEADLAMP-DISCHARGE WITH/AUTO LEVELING
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
85271AHOSE, HEADLAMP CLEANER, NO.2
HEADLAMP-DISCHARGE WITH/AUTO LEVELING
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
85271BHOSE, HEADLAMP CLEANER, NO.3
L=120,HEADLAMP-DISCHARGE WITH/AUTO LEVELING
L=120
L=160,HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
L=360
L=360,HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
85271CHOSE, HEADLAMP CLEANER, NO.4
L=60,HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
HEADLAMP-DISCHARGE WITH/AUTO LEVELING
L=200
L=200,HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
85271DHOSE, HEADLAMP CLEANER, NO.5
L=52,HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
L=120,HEADLAMP-DISCHARGE WITH/AUTO LEVELING
L=120
L=1200
L=1200,HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
85271EHOSE, HEADLAMP CLEANER, NO.6
L=50,HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
L=50
L=160,HEADLAMP-DISCHARGE WITH/AUTO LEVELING
L=160
L=1060,HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
85271GHOSE, HEAD LAMP
HEADLAMP-DISCHARGE WITH/AUTO LEVELING
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
85279AJOINT, HEADLAMP CLEANER HOSE
HEADLAMP-DISCHARGE WITH/AUTO LEVELING
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
HEADLAMP-DISCHARGE WITH/AUTO LEVELING
85330BBUSH, HEADLAMP CLEANER WASHER JAR
HEADLAMP-DISCHARGE WITH/AUTO LEVELING
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
85341NOZZLE, HEADLAMP CLEANER WASHER
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),BLUISH PEARL CS.,074,RH
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),WHITE PEARL CS.,077,RH
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),DK.GRAY MC.,1G0,RH
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),SILVER M.M.,1G1,RH
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),BLACK,212,RH
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),RED MC.CS.,3R1,RH
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),BLOND M.M.,4T0,RH
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),SABLE M.M.,4T5,RH
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),LT.BLUE ME.,8R6,RH
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),DK.BLUE MC. CC.,8U0,RH
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),BLUE ME.,8U1,RH
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),CATTLEYA M.M.,9AL,RH
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),BLUISH PEARL CS.,074,RH
sub85044-53040
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),WHITE PEARL CS.,077,RH
sub85044-53040
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),SILVER M.M.,1G1,RH
sub85044-53040
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),MERCURY GRAY MC.,1H9,RH
sub85044-53040
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),DK.GRAY MC.,1G0,RH
sub85044-53040
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),BLACK,212,RH
sub85044-53040
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),STARLIGHT BLACK GF.,217,RH
sub85044-53040
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),RED MC.CS.,3R1,RH
sub85044-53040
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),FIRE AGATE M.M.,4V3,RH
sub85044-53040
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),BLUE ME.,8U1,RH
sub85044-53040
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),SILVERY BLUE ME.,8U9,RH
sub85044-53040
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),LAPIS LAZULI MC.,8V3,RH
sub85044-53040
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),CATTLEYA M.M.,9AL,RH
sub85044-53040
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),BLUISH PEARL CS.,074,LH
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),WHITE PEARL CS.,077,LH
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),DK.GRAY MC.,1G0,LH
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),SILVER M.M.,1G1,LH
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),BLACK,212,LH
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),RED MC.CS.,3R1,LH
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),BLOND M.M.,4T0,LH
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),SABLE M.M.,4T5,LH
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),LT.BLUE ME.,8R6,LH
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),DK.BLUE MC. CC.,8U0,LH
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),BLUE ME.,8U1,LH
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),CATTLEYA M.M.,9AL,LH
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),BLUISH PEARL CS.,074,LH
sub85045-53040
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),WHITE PEARL CS.,077,LH
sub85045-53040
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),SILVER M.M.,1G1,LH
sub85045-53040
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),MERCURY GRAY MC.,1H9,LH
sub85045-53040
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),DK.GRAY MC.,1G0,LH
sub85045-53040
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),BLACK,212,LH
sub85045-53040
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),STARLIGHT BLACK GF.,217,LH
sub85045-53040
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),RED MC.CS.,3R1,LH
sub85045-53040
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),FIRE AGATE M.M.,4V3,LH
sub85045-53040
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),BLUE ME.,8U1,LH
sub85045-53040
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),SILVERY BLUE ME.,8U9,LH
sub85045-53040
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),LAPIS LAZULI MC.,8V3,LH
sub85045-53040
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING),CATTLEYA M.M.,9AL,LH
sub85045-53040
HEADLAMP-DISCHARGE WITH/AUTO LEVELING,WHITE PEARL CS.,062,RH
WHITE PEARL CS.,062,RH
BLUISH PEARL CS.,074,RH
HEADLAMP-DISCHARGE WITH/AUTO LEVELING,BLUISH PEARL CS.,074,RH
HEADLAMP-DISCHARGE WITH/AUTO LEVELING,WHITE PEARL CS.,077,RH
WHITE PEARL CS.,077,RH
DK.GRAY MC.,1G0,RH
HEADLAMP-DISCHARGE WITH/AUTO LEVELING,DK.GRAY MC.,1G0,RH
HEADLAMP-DISCHARGE WITH/AUTO LEVELING,SILVER M.M.,1G1,RH
SILVER M.M.,1G1,RH
HEADLAMP-DISCHARGE WITH/AUTO LEVELING,BLACK,202,RH
BLACK,202,RH
HEADLAMP-DISCHARGE WITH/AUTO LEVELING,BLACK,212,RH
BLACK,212,RH
HEADLAMP-DISCHARGE WITH/AUTO LEVELING,RED MC.CS.,3R1,RH
RED MC.CS.,3R1,RH
BEIGE ME.,4P7,RH
HEADLAMP-DISCHARGE WITH/AUTO LEVELING,BEIGE ME.,4P7,RH
HEADLAMP-DISCHARGE WITH/AUTO LEVELING,BEIGE ME.,4T1,RH
BEIGE ME.,4T1,RH
HEADLAMP-DISCHARGE WITH/AUTO LEVELING,MD.GREEN M.M.,6U3,RH
MD.GREEN M.M.,6U3,RH
HEADLAMP-DISCHARGE WITH/AUTO LEVELING,DARK BLUE MC.,8P8,RH
DARK BLUE MC.,8P8,RH
HEADLAMP-DISCHARGE WITH/AUTO LEVELING,LT.BLUE ME.,8R6,RH
LT.BLUE ME.,8R6,RH
DK.BLUE MC. CC.,8U0,RH
HEADLAMP-DISCHARGE WITH/AUTO LEVELING,DK.BLUE MC. CC.,8U0,RH
WHITE PEARL CS.,062,LH
HEADLAMP-DISCHARGE WITH/AUTO LEVELING,WHITE PEARL CS.,062,LH
BLUISH PEARL CS.,074,LH
HEADLAMP-DISCHARGE WITH/AUTO LEVELING,BLUISH PEARL CS.,074,LH
WHITE PEARL CS.,077,LH
HEADLAMP-DISCHARGE WITH/AUTO LEVELING,WHITE PEARL CS.,077,LH
HEADLAMP-DISCHARGE WITH/AUTO LEVELING,DK.GRAY MC.,1G0,LH
DK.GRAY MC.,1G0,LH
HEADLAMP-DISCHARGE WITH/AUTO LEVELING,SILVER M.M.,1G1,LH
SILVER M.M.,1G1,LH
BLACK,202,LH
HEADLAMP-DISCHARGE WITH/AUTO LEVELING,BLACK,202,LH
HEADLAMP-DISCHARGE WITH/AUTO LEVELING,BLACK,212,LH
BLACK,212,LH
HEADLAMP-DISCHARGE WITH/AUTO LEVELING,RED MC.CS.,3R1,LH
RED MC.CS.,3R1,LH
BEIGE ME.,4P7,LH
HEADLAMP-DISCHARGE WITH/AUTO LEVELING,BEIGE ME.,4P7,LH
BEIGE ME.,4T1,LH
HEADLAMP-DISCHARGE WITH/AUTO LEVELING,BEIGE ME.,4T1,LH
HEADLAMP-DISCHARGE WITH/AUTO LEVELING,MD.GREEN M.M.,6U3,LH
MD.GREEN M.M.,6U3,LH
HEADLAMP-DISCHARGE WITH/AUTO LEVELING,DARK BLUE MC.,8P8,LH
DARK BLUE MC.,8P8,LH
HEADLAMP-DISCHARGE WITH/AUTO LEVELING,LT.BLUE ME.,8R6,LH
LT.BLUE ME.,8R6,LH
HEADLAMP-DISCHARGE WITH/AUTO LEVELING,DK.BLUE MC. CC.,8U0,LH
DK.BLUE MC. CC.,8U0,LH
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
HEADLAMP-DISCHARGE WITH/AUTO LEVELING
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
HEADLAMP-DISCHARGE WITH/AUTO LEVELING
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
85348CJOINT, HEADLAMP CLEANER HOSE, NO.3
HEADLAMP-DISCHARGE WITH/AUTO LEVELING
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
85348HJOINT, HEADLAMP CLEANER HOSE, NO.4
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
HEADLAMP-DISCHARGE WITH/AUTO LEVELING
85348ZJOINT, HEADLAMP CLEANER HOSE, NO.5
HEADLAMP-DISCHARGE WITH/AUTO LEVELING
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
85372AHOSE, HEADLAMP CLEANER (FROM JOINT TO JOINT OR NOZZLE)
L=1060,HEADLAMP-DISCHARGE WITH/AUTO LEVELING
L=1060
8527220080CABLE SUB-ASSY, HEADLAMP CLEANER, RH
main85272-20080
8527320020CABLE SUB-ASSY, HEADLAMP CLEANER, LH
main85273-20020
8527712080HOSE, HEADLAMP CLEANER, C
main85277-12080
9007590508
main90075-90508
91641C0614
main91641-C0614
24 parts on this diagram · 3 diagrams in section
