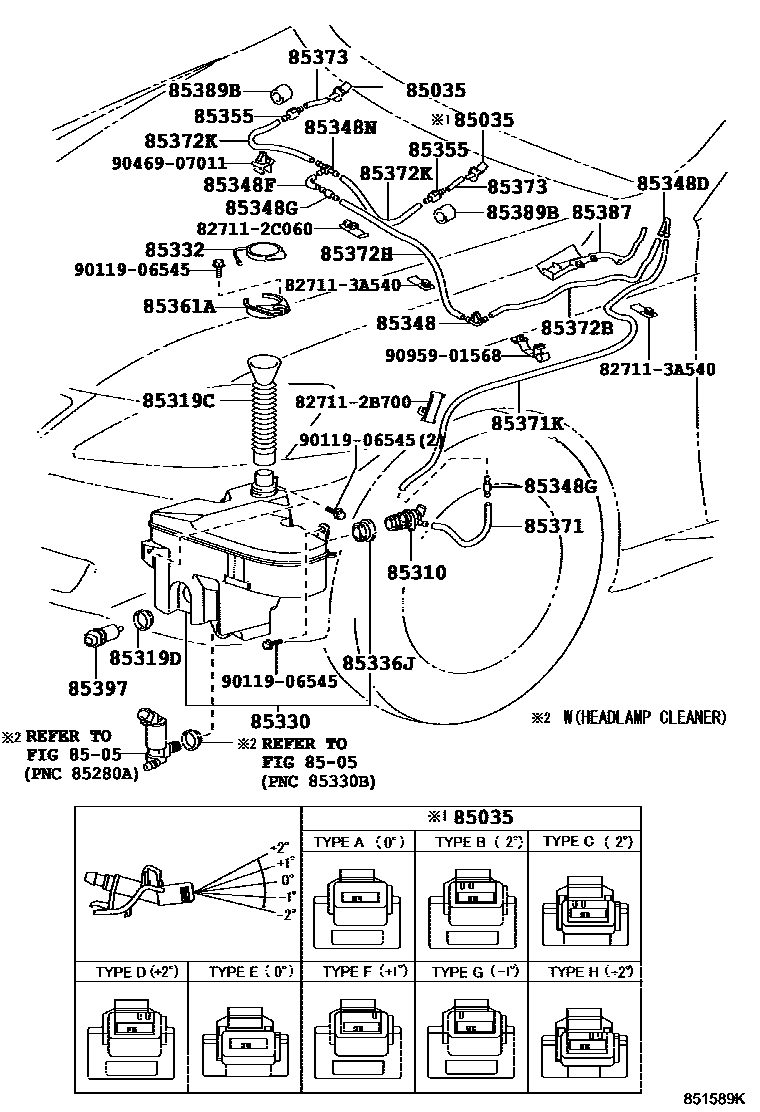

WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
ANGLE 0,TYPE E:REFER ILLUST.
ANGLE -2,TYPE C:REFER ILLUST.
ANGLE +2,TYPE H:REFER ILLUST.
ANGLE 0,TYPE A:REFER ILLUST.
ANGLE +1,TYPE F:REFER ILLUST.
ANGLE -1,TYPE G:REFER ILLUST.
ANGLE +2,TYPE D:REFER ILLUST.
ANGLE -2,TYPE B:REFER ILLUST.
8505
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85319CHOSE, WASHER
85319DPACKING, FRONT WASHER
85330JAR ASSY, WINDSHIELD WASHER
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
85332CAP, WINDSHIELD WASHER JAR
85336JPROTECTOR, WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85348NJOINT, WINDSHIELD WASHER HOSE, NO.4
85355VALVE, WINDSHIELD WASHER HOSE
85361ABRACKET, WINDSHIELD WASHER, NO.1
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=150)
L=1450(*H,L=150),HEADLAMP-DISCHARGE WITH/AUTO LEVELING
L=1450(*H,L=150),HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
85371KHOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=1330)
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1450(*H,L=450)
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=1450(*H,L=600)
L=1450(*H,L=630)
85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
L=1450(*H,L=300)
L=1450(*H,L=300),PNC 85035=TYPE G
L=1000(*H,L=520),PNC 85035=TYPE H
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=60)
L=1450(*H,L=380)
85387CLAMP NO.1 (FOR WINDSEIELD WASHER)
85389BPROTECTOR, WINDSHIELD WASHER
85397SWITCH ASSY,LEVEL WARNING
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
827112B700WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
827112C060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
9011906545
9046907011
9095901568
30 parts on this diagram · 3 diagrams in section
