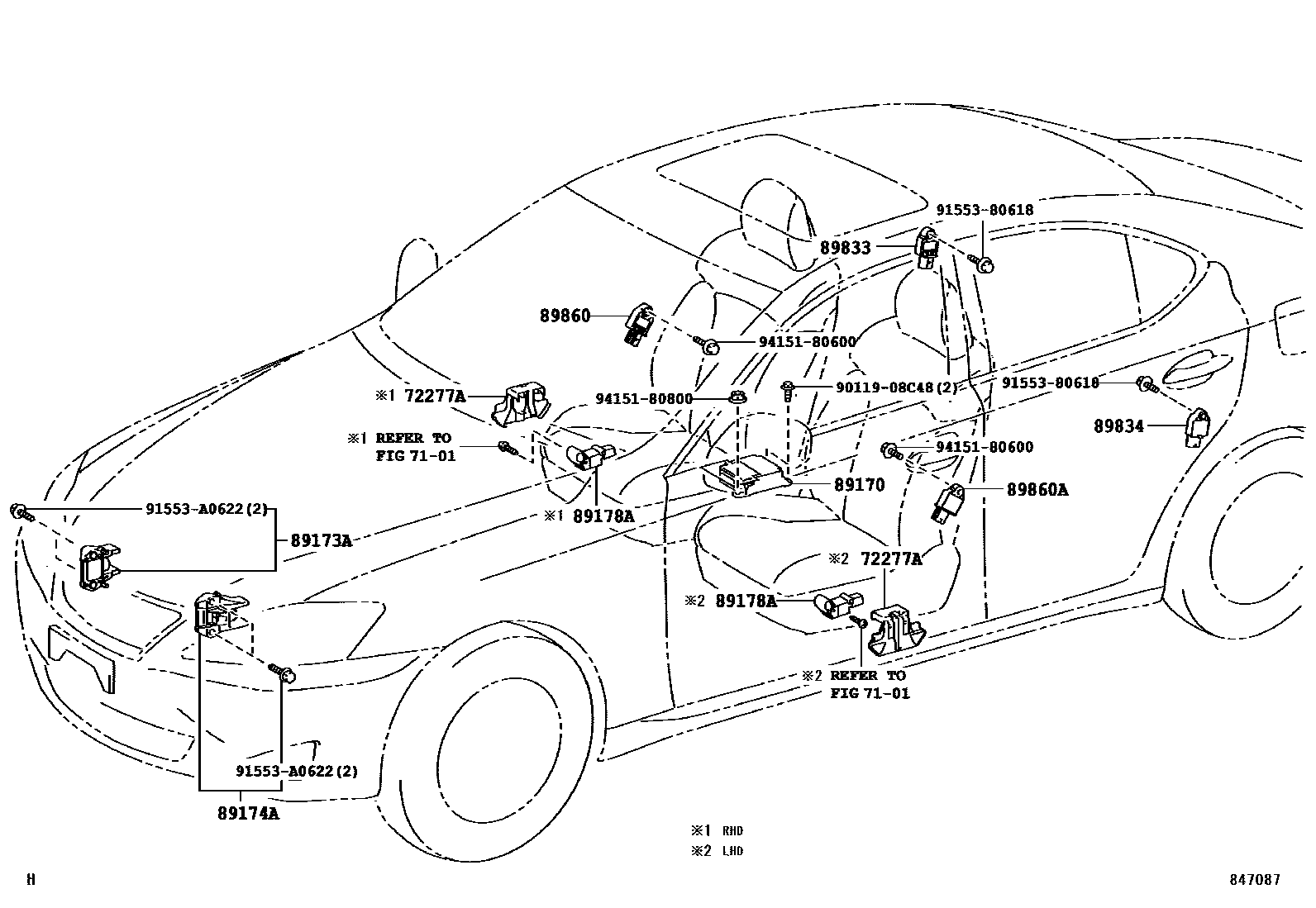

AIR BAG

7101

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-33010iALE20,GSE20..LUX¥460200508-201008

main72277-33021iALE20..SPO¥410200602-200704

89170SENSOR ASSY, AIRBAG

main89170-53090iGSE20..RHD¥65,700201008

AUSTRALIA SPEC

main89170-53090iGSE21¥65,700201008

HONG KONG SPEC

main89170-53090iGSE21¥65,700201008

SINGAPORE SPEC

main89170-53090iGSE21¥65,700201008

THAILAND SPEC

main89170-53090iGSE21¥65,700201008

MALAYSIA SPEC

main89170-53090iGSE20..RHD¥65,700201008

NEW ZEALAND SPEC

main89170-53100iALE20,GSE20..LHD200508-201008

main89170-53110iALE20,GSE20..RHD200508-201008

89173ASENSOR, AIRBAG, FRONT RH

main89173-59245iALE20..LHD..SPO;ALE20,GSE20..LUX¥13,200200508-201008

89174ASENSOR, AIRBAG, FRONT LH

main89173-59245iALE20,GSE2#¥13,200200508-201008

89178ASENSOR, SEAT POSITION AIRBAG

main89178-33040iALE20,GSE2#¥3,110200508-201008

main89178-33050iALE20..SPO¥2,820200602-200704

89833SENSOR, AIRBAG, REAR RH

main89831-0W040iALE20,GSE20¥13,200200508-200707

main89831-22020iALE20,GSE20¥10,900200708-201008

89834SENSOR, AIRBAG, REAR LH

main89831-0W040iALE20,GSE20¥13,200200508-200707

main89831-22020iALE20,GSE2#¥10,900200708-201008

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-02020iALE20,GSE20¥13,200200508-200707

main89831-53010iALE20,GSE20¥10,900200708-201008

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-02020iALE20,GSE20¥13,200200508-200707

main89831-53010iALE20..RHD..SPO¥10,900200708-201008

9011908C48

main90119-08C48¥90

9155380618

main91553-80618¥60

91553A0622

main91553-A0622¥60

9415180600

main94151-80600¥60

9415180800

main94151-80800¥80

15 parts on this diagram · 1 diagram in section
