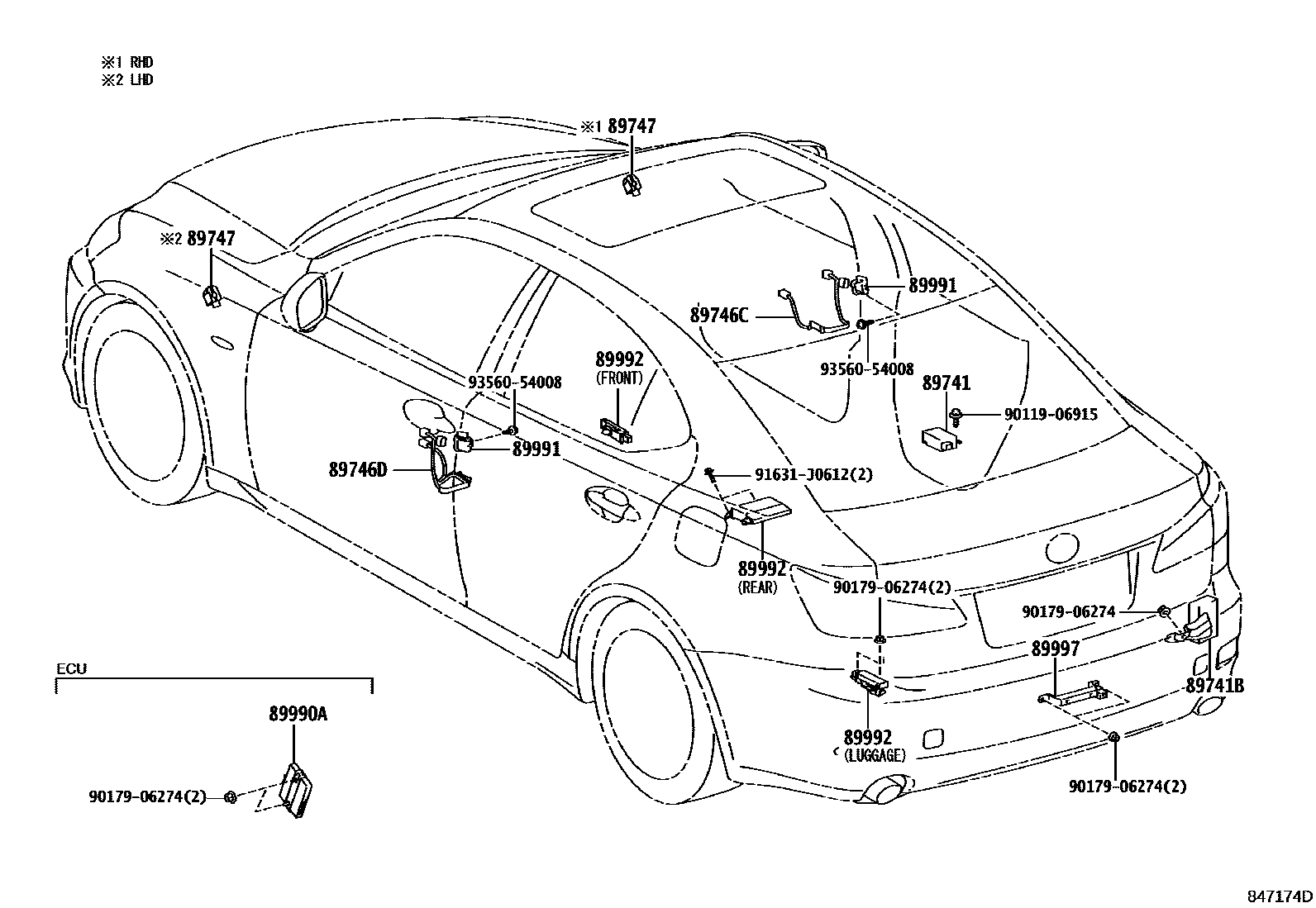

WIRELESS DOOR LOCK
89741RECEIVER, DOOR CONTROL
AUSTRALIA SPEC&ELECTRICAL KEY(2)+CARD TYPE(1)
NEW ZEALAND SPEC
sub89740-53321
SOUTH AFRICA SPEC&ELECTRICAL KEY(2)+CARD TYPE(1)
sub89740-53401
HONG KONG SPEC
CHILE SPEC&WIRELESS DOOR LOCK-WITH(PANIC)&ELECTRICAL KEY(2)+CARD TYPE(1)
HONG KONG SPEC&ELECTRICAL KEY(2)+CARD TYPE(1)
CHILE SPEC&WIRELESS DOOR LOCK-WITH(PANIC)&ELECTRICAL KEY(2)+CARD TYPE(1)
89741BRECEIVER, DOOR CONTROL, NO.2
AUSTRALIA SPEC&KEY PLATE-ELECTRICAL KEY(2)+CARD TYPE(1)
HONG KONG SPEC
89746CHARNESS, ELECTRICAL KEY WIRE, NO.1
89746DHARNESS, ELECTRICAL KEY WIRE, NO.2
89747BUZZER, WIRELESS DOOR LOCK
89991OSCILLATOR, DOOR ELECTRICAL KEY
RH
LH
89992OSCILLATOR, INDOOR ELECTRICAL KEY
REAR
FRONT
REAR
LUGGAGE
89997ANTENNA, ELECTRICAL KEY
9011906915
main90119-06915
9017906274
main90179-06274
91631J0612
main91631-J0612
9356054008
main93560-54008
13 parts on this diagram · 1 diagram in section
