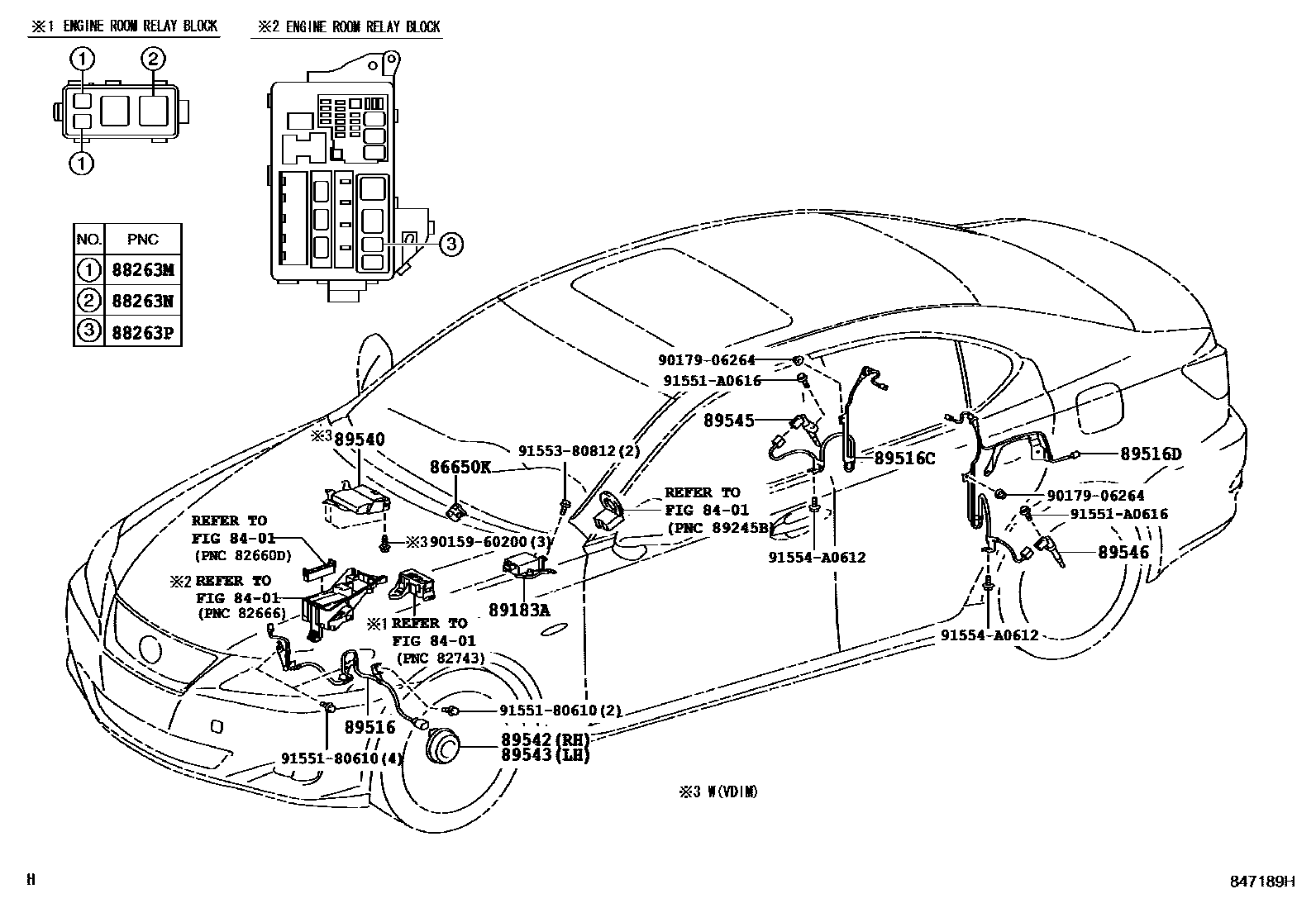

ABS & VSC

0001 1 0002 1 0003 1 0004 1

8401

86650KBUZZER ASSY, SKID CONTROL

main86652-48010iALE20,GSE20200508-200708

main86652-50010iALE20,GSE20200708-201008

88263MRELAY, ABS SOLENOID

main88263-32070iALE20,GSE20200508-200808

88263NRELAY, ABS MOTOR

main88263-21010iALE20,GSE20200508-200808

88263PRELAY, STOP LAMP CONTROL

main90987-04004iGSE20..ATM200508-201008

89183ASENSOR, YAWRATE

main89180-22020iALE20,GSE20200508-200808

main89180-53010iALE20,GSE20200808-200907

sub89180-53030

main89180-53030iALE20,GSE20200908-201008

89516WIRE, SKID CONTROL SENSOR

main89516-30020iALE20,GSE2#200508-201203

RH

sub89516-30150

main89516-30030iALE20,GSE20200508-201304

LH

main89516-30150iALE20,GSE2#201204-201302

RH

main89516-53060iGSE2#201303-201304

RH

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-22020iALE20,GSE20200508-201304

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-22010iALE20,GSE20..LUX200508-201304

main89516-22040iALE20..SPO200602-200704

main89516-22040iGSE21201008-201304

HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)

89540COMPUTER ASSY, SKID CONTROL

main89540-53221

main89540-53231

main89540-53241

main89540-53251

main89540-53300

main89540-53310

main89540-53320

main89540-53330

89542SENSOR, SPEED, FRONT RH

main89542-30260iALE20,GSE20200508-201008

89543SENSOR, SPEED, FRONT LH

main89543-30260iALE20,GSE20200508-201008

89545SENSOR, SPEED, REAR RH

main89545-30070iALE20,GSE20200508-201304

89546SENSOR, SPEED, REAR LH

main89546-30070iALE20,GSE20200508-201304

9015960200

main90159-60200

9017906264

main90179-06264

9155180610

main91551-80610

91551A0616

main91551-A0616

9155380812

main91553-80812

91554A0612

main91554-A0612

20 parts on this diagram · 4 diagrams in section
