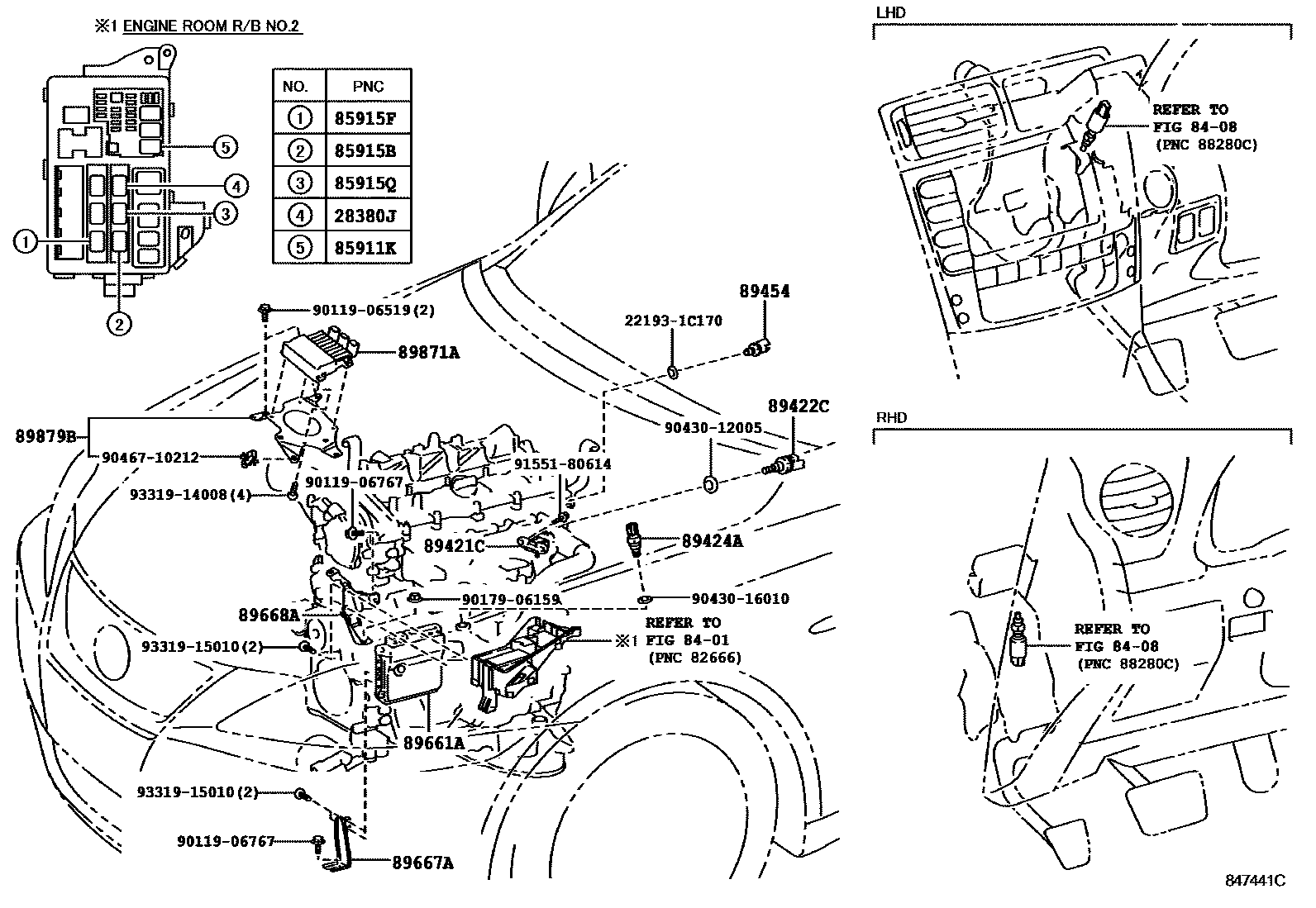

ELECTRONIC CONTROLED DIESEL (ECD)

0001 1 0002 1

28380JRELAY, FUEL PUMP

main90987-02027i2ADFHV..ALE20200511-201208

8401

8408

85911KRELAY, HEATER(FOR AIR FUEL RATIO SENSOR)

main90987-02027iALE20200511-201208

85915BRELAY, MAIN (FOR DIESEL TURBO)

main90987-02027iALE20200511-201208

85915FRELAY, SPILL VALVE

main90987-02027iALE20200511-201208

85915QRELAY, COMPUTER (FOR DIESEL)

main90987-02027iALE20200511-201208

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89421-20200iALE20200511-201208

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-33030iALE20200511-201208

89424ASENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)

main89424-60010iALE20200511-201208

89454SENSOR, FUEL TEMPERATURE

main89454-20010iALE20200511-201208

89661ACOMPUTER, ENGINE CONTROL

main89661-53700iALE20..LUX200511-200612

sub89661-53701

main89661-53701iALE20..LUX200701-200806

sub89661-53702

main89661-53702iALE20..LUX200807-201008

main89661-53740iALE20..SPO200602-200612

sub89661-53741

main89661-53741iALE20..SPO200701-200806

sub89661-53742

main89661-53742iALE20..SPO200807-200808

main89661-53D80iALE20..RHD..SPO200808-201008

main89661-53M40iALE20..DCR201008-201208

main89661-53M50iALE20..DCRL201008-201208

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-53020iALE20..LUX;ALE20..LHD..SPO200511-201208

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-53020iALE20200511-201208

89871ADRIVER, INJECTOR

main89871-20070iALE20200511-201008

main89871-20080iALE20201008-201208

89879BBRACKET, INJECTOR DRIVER

main89879-53010iALE20200511-201208

221931C170RING, O(FOR LEVER CONNECTING PIN)

main22193-1C170

9011906519

main90119-06519

9011906767

main90119-06767

9017906159

main90179-06159

9043012005

main90430-12005

9043016010

main90430-16010

9046710212

main90467-10212

9155180614

main91551-80614

9331914008

main93319-14008

9331915010

main93319-15010

26 parts on this diagram · 2 diagrams in section
