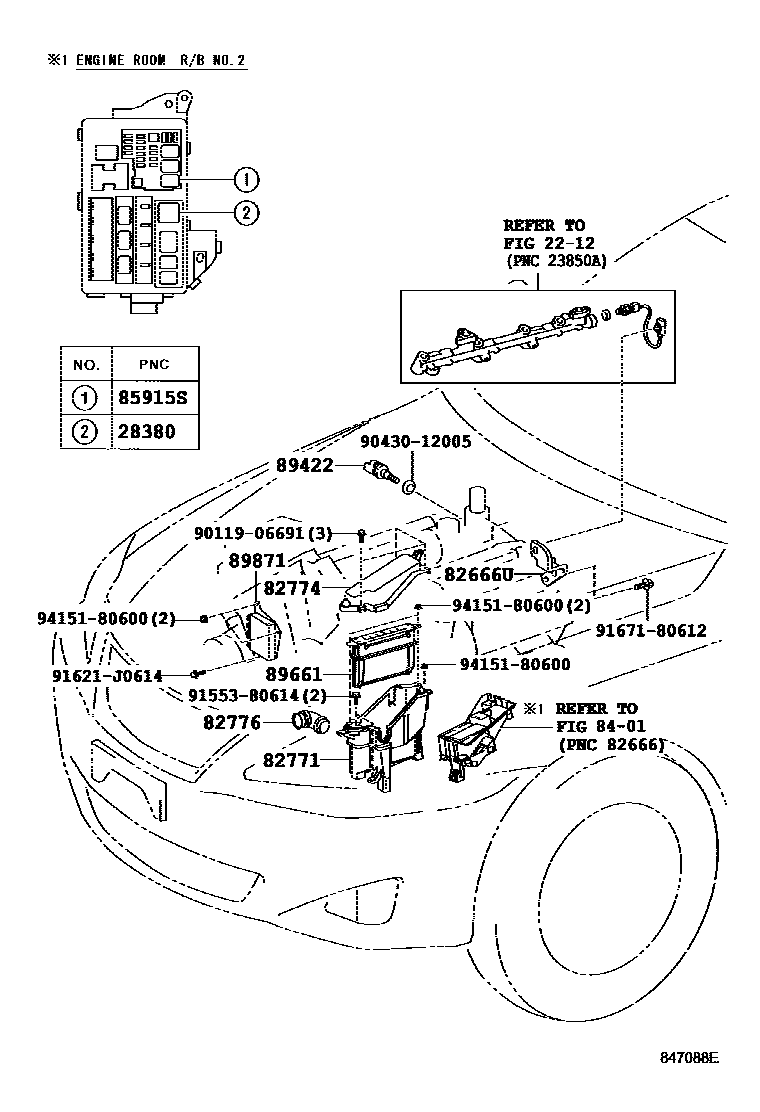

ELECTRONIC FUEL INJECTION SYSTEM

2212

28380RELAY ASSY, FUEL PUMP

main90987-03003i4GRFSE..GSE20200508-201008

82666UHOLDER, CONNECTOR

main82666-30780iGSE20200508-201008

82771BOX, ENGINE ROOM ECU

main82771-30040iGSE20200508-201008

82774COVER, ENGINE ROOM ECU

main82774-30050iGSE20200508-201008

82776DUCT, ENGINE ROOM ECU OUTLET

main82776-53040iGSE20200508-201008

8401

85915SRELAY, HEATER (FOR AIR FUEL RATIO SENSOR)

main90987-02027iGSE20200508-201008

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iGSE2#200508-201008

89661COMPUTER, ENGINE CONTROL

main89661-53600iGSE20..MTM200509-200607

sub89661-53601

main89661-53610iGSE20..ATM200508-200607

sub89661-53611

main89661-53840iGSE20..MTM200607-200611

sub89661-53841

main89661-53841iGSE20..MTM200612-200708

main89661-53860iGSE20..ATM200607-200611

sub89661-53861

main89661-53861iGSE20..ATM200612-200708

main89661-53B30iGSE20..MTM200708-200808

main89661-53B50iGSE20..ATM200708-200808

main89661-53C70iGSE20..MTM200808-200908

main89661-53C90iGSE20..ATM200808-200908

main89661-53G30iGSE20..MTM200908-201008

main89661-53G50iGSE20..ATM200908-201008

main89661-53J30iGSE21201008

main89661-53K10iGSE20201008

89871DRIVER, INJECTOR

main89871-30030iGSE20200508-201110

sub89871-30031

main89871-30031iGSE20201111-201304

main89871-53010iGSE21201008-201304

9011906691

main90119-06691

9043012005

main90430-12005

9155380614

main91553-80614

91621J0614

main91621-J0614

9167180612

main91671-80612

9415180600

main94151-80600

17 parts on this diagram · 1 diagram in section
