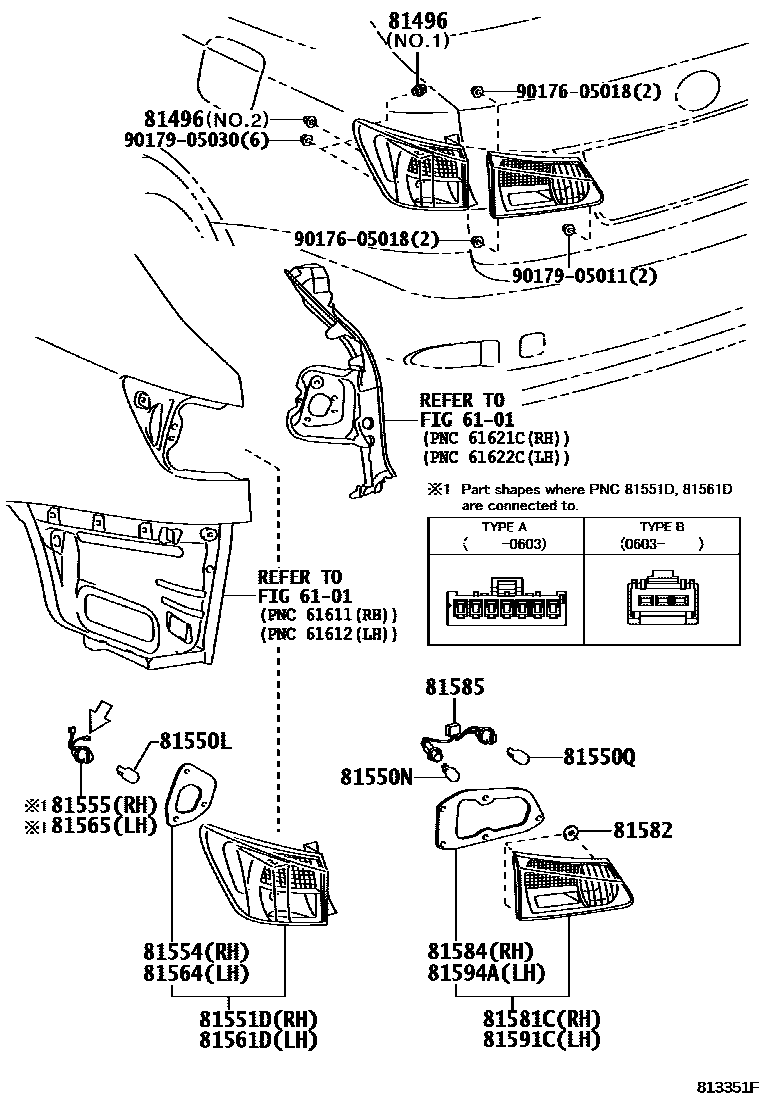

REAR COMBINATION LAMP

0001 1 0002 1

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-53010iALE20..LHD..SPO;ALE20,GSE20..LUX¥160200508-201008

NO.2

main81496-60010iALE20,GSE2#¥100200508-201008

NO.1

81550LBULB, REAR TURN SIGNAL LAMP

main90981-13043iALE20,GSE20¥220200508-201008

main90981-15011iALE20,GSE2#¥300201008-201304

81550NBULB, BACK UP LAMP

main90981-11059iALE20,GSE20¥200200508-201304

81550QBULB, REAR FOG LAMP, NO.1

main90981-13043iALE20,GSE20¥220200508-201304

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-53160iALE20,GSE20¥28,300200508-200603

PNC 81555=TYPE A

sub81553-53160¥28,300

main81551-53161iALE20,GSE20¥28,300200603-200611

PNC 81555=TYPE B

sub81551-53162¥28,200

main81551-53162iALE20,GSE20¥28,200200612-200808

main81551-53210iALE20..RHD..SPO¥31,700200808-201008

main81551-53250iALE20,GSE2#¥33,100201008

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-53160iALE20,GSE20¥1,020200508-200808

main81554-53210iALE20..RHD..SPO¥1,010200808-201008

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-53160iALE20,GSE20¥2,030200508-200603

TYPE A:REFER ILLUST.

main81555-53161iALE20,GSE20¥2,030200603-200808

TYPE B:REFER ILLUST.

main81555-53210iALE20..RHD..SPO¥2,010200808-201008

main81555-53250iALE20,GSE2#¥2,010201008

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-53160iALE20,GSE20¥28,300200508-200603

PNC 81565=TYPE A

sub81563-53160¥28,300

main81561-53161iALE20,GSE20¥28,300200603-200611

PNC 81565=TYPE B

sub81561-53162¥28,200

main81561-53162iALE20,GSE20¥28,200200612-200808

main81561-53210iALE20..RHD..SPO¥31,700200808-201008

main81561-53250iALE20,GSE2#¥33,100201008

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81564-53160iALE20,GSE20¥1,020200508-200808

main81564-53210iALE20..RHD..SPO¥1,010200808-201008

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-53160iALE20,GSE20¥2,030200508-200603

TYPE A:REFER ILLUST.

main81555-53161iALE20,GSE20¥2,030200603-200808

TYPE B:REFER ILLUST.

main81555-53210iALE20..RHD..SPO¥2,010200808-201008

main81555-53250iALE20,GSE2#¥2,010201008

81581CLENS AND BODY, REAR LAMP, RH

main81581-53070iALE20,GSE20¥20,800200508-200701

sub81581-53071¥20,700

main81581-53071iALE20,GSE20¥20,700200702-200808

main81581-53080iALE20..RHD..SPO¥27,800200808-201008

main81581-53120iALE20,GSE2#¥29,000201008

81582GASKET, REAR LAMP

main81584-22040iALE20,GSE20¥190200508-201008

81584PACKING, REAR LAMP RH

main81584-53060iALE20,GSE20¥1,240200508-200808

main81584-53080iALE20..RHD..SPO¥1,080200808-201008

81585SOCKET & WIRE, REAR LAMP

main81585-53070iALE20,GSE20¥2,030200508-200808

main81585-53080iALE20..RHD..SPO¥2,160200808-201008

81591CLENS, REAR LAMP, LH

main81591-53070iALE20,GSE20¥20,800200508-200701

sub81591-53071¥20,700

main81591-53071iALE20,GSE20¥20,700200702-200808

main81591-53080iALE20..RHD..SPO¥27,800200808-201008

main81591-53120iALE20,GSE2#¥29,000201008

81594AGASKET, REAR LAMP LH

main81594-53060iALE20,GSE20¥1,240200508-200808

main81594-53080iALE20..RHD..SPO¥1,080200808-201008

9017605018

main90176-05018¥70

9017905011

main90179-05011¥80

9017905030

main90179-05030¥120

20 parts on this diagram · 2 diagrams in section
