HEADLAMP

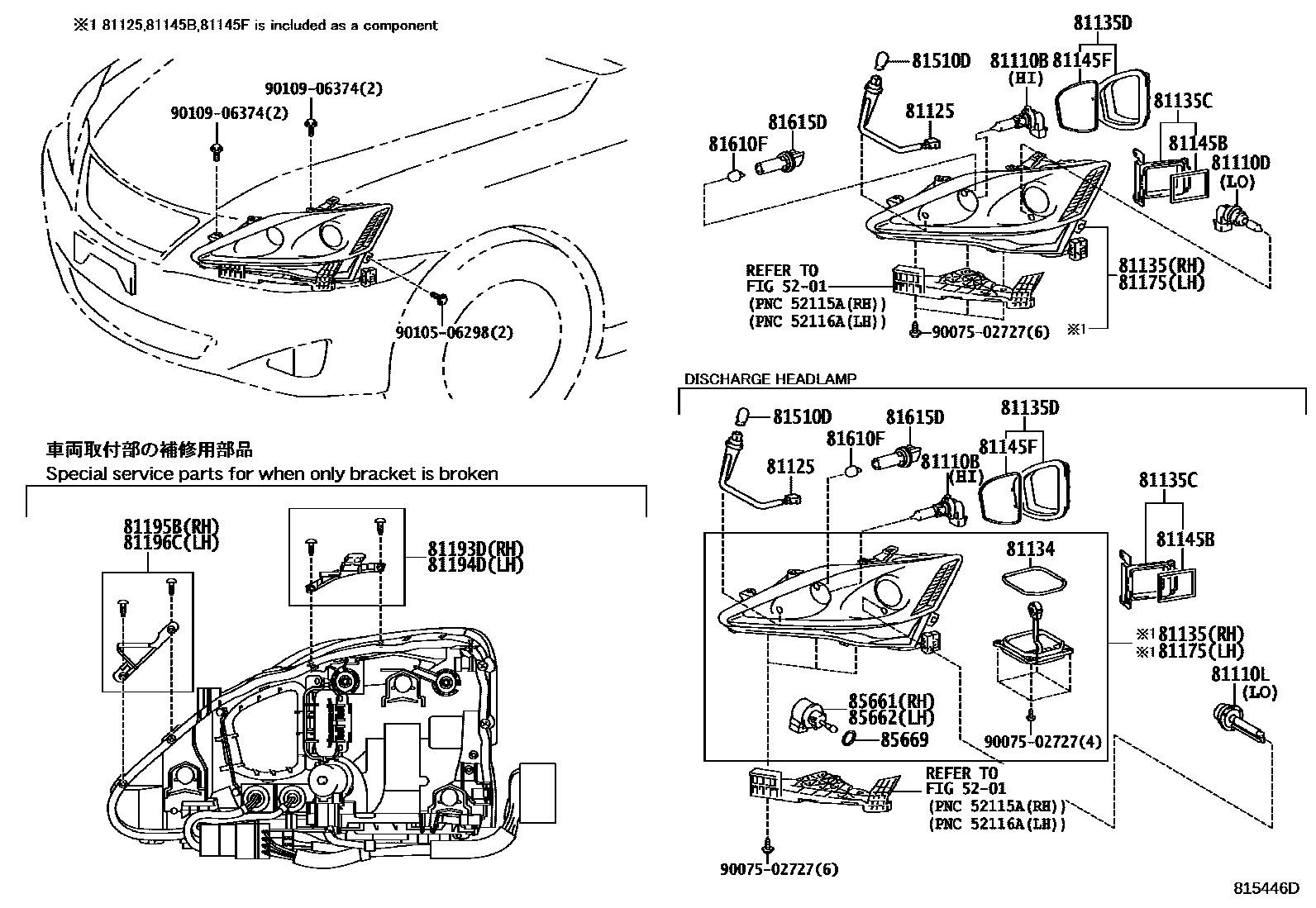

Parts diagram
5201
81110BBULB(FOR HEADLAMP, NO.1)
main90981-13046i200508-201304
12V65W(SAE),60W(ECE)
main90981-13046i201205-201207
12V65W(SAE),60W(ECE),AU RED-EDGE BLACK INTERIOR PACKAGE(350)
main90981-13046i201205-201207
12V65W(SAE),60W(ECE),AU RED-EDGE BLACK INTERIOR PACKAGE(250)&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
81110DBULB(FOR HEADLAMP, NO.2)
main90981-13075i200508-201304
12V 55W,HALOGEN
81110LBULB, DISCHARGE HEADLAMP
main90981-20013i200508-200601
45V 35W,LUXURY PACKAGE
sub90981-20024
main90981-20013i200508-200601
45V 35W,SPORT PACKAGE
sub90981-20024
main90981-20021i200601-200902
45V 35W,LUXURY PACKAGE
sub90981-20024
main90981-20021i200602-200704
45V 35W
sub90981-20024
main90981-20021i200601-200902
45V 35W,SPORT PACKAGE
sub90981-20024
main90981-20024i200902-201008
42V 35W,SPORT PACKAGE
main90981-20024i200902-201008
42V 35W,LUXURY PACKAGE
main90981-20024i200908-201008
42V 35W,VERSION F
main90981-20024i201008-201108
42V 35W,CHILE SPEC&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
main90981-20024i201205-201207
42V 35W,AU RED-EDGE BLACK INTERIOR PACKAGE(350)
main90981-20024i201205-201207
42V 35W,AU RED-EDGE BLACK INTERIOR PACKAGE(250)&HEADLAMP-DISCHAGE & AFS WITH(AUTOLEVELING)
main90981-20024i201008-201304
42V 35W
main90981-20024i201008-201304
42V 35W,HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
81125CORD, HEADLAMP
main81125-53540i201008
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
main81125-53540i201205-201303
AU RED-EDGE BLACK INTERIOR PACKAGE(350)
main81125-53540i201205-201207
AU RED-EDGE BLACK INTERIOR PACKAGE(250)&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
main81125-53540i201301-201303
AU RED-EDGE BLACK INTERIOR PACKAGE(250)
main81125-53570i201008-201108
CHILE SPEC&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
main81126-53220i200508-201008
81134GASKET, HEADLAMP
main90075-68007i201205-201207
AU RED-EDGE BLACK INTERIOR PACKAGE(250)&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
main90075-68007i200602-200704
main90075-68007i200508-201008
LUXURY PACKAGE
main90075-68007i200508-201008
SPORT PACKAGE
main90075-68007i200908-201008
VERSION F
main90075-68007i201008-201108
CHILE SPEC&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
main90075-68007i201205-201303
AU RED-EDGE BLACK INTERIOR PACKAGE(350)
main90075-68007i201301-201303
AU RED-EDGE BLACK INTERIOR PACKAGE(250)
main90075-68007i201008
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
81135UNIT ASSY, HEADLAMP, RH
main81130-53250i200508-201008
main81130-53260i200508-200701
sub81130-53261
main81130-53261i200701-201008
main81130-53520i201008-201304
main81130-53530i201008-201304
main81140-53220i200508-201004
LUXURY PACKAGE
sub81140-53351
main81140-53220i200508-201004
SPORT PACKAGE
sub81140-53351
main81140-53220i200908-201004
VERSION F
sub81140-53351
main81140-53220i200602-200704
sub81140-53351
main81140-53230i200602-200612
sub81140-53231
main81140-53230i200508-200612
SPORT PACKAGE
sub81140-53231
main81140-53230i200508-200612
LUXURY PACKAGE
sub81140-53231
main81140-53231i200612-201004
LUXURY PACKAGE
sub81140-53371
main81140-53231i200612-200704
sub81140-53371
main81140-53231i200612-201004
SPORT PACKAGE
sub81140-53371
main81140-53231i200908-201004
VERSION F
sub81140-53371
main81140-53351i201004-201008
VERSION F
main81140-53351i201004-201008
LUXURY PACKAGE
main81140-53351i201004-201008
SPORT PACKAGE
main81140-53371i201004-201008
LUXURY PACKAGE
main81140-53371i201004-201008
SPORT PACKAGE
main81140-53371i201004-201008
VERSION F
main81145-53500i201008-201108
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
main81145-53501i201108-201109
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
main81145-53502i201109-201109
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
main81145-53503i201205-201303
AU RED-EDGE BLACK INTERIOR PACKAGE(350)
main81145-53503i201109-201304
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
main81145-53503i201205-201207
AU RED-EDGE BLACK INTERIOR PACKAGE(250)&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
main81145-53503i201301-201303
AU RED-EDGE BLACK INTERIOR PACKAGE(250)
main81145-53510i201008-201108
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
main81145-53511i201108-201109
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
main81145-53512i201109-201109
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
main81145-53513i201109-201304
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
main81145-53560i201008-201108
CHILE SPEC&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
81135CCOVER, HEADLAMP BACK, NO.1
main81135-53240i201205-201303
AU RED-EDGE BLACK INTERIOR PACKAGE(350)
main81135-53240i200602-200704
main81135-53240i200508-201008
LUXURY PACKAGE
main81135-53240i200508-201008
SPORT PACKAGE
main81135-53240i200908-201008
VERSION F
main81135-53240i201008-201108
CHILE SPEC&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
main81135-53240i201205-201207
AU RED-EDGE BLACK INTERIOR PACKAGE(250)&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
main81135-53240i201301-201303
AU RED-EDGE BLACK INTERIOR PACKAGE(250)
main81135-53240i201008
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
main81135-53270i200508-201008
81135DCOVER, HEADLAMP BACK, NO.2
main81136-53240i200508-201008
RH
main81176-53240i200508-201008
LH
81145BGASKET, HEADLAMP COVER, NO.1
main81132-53240i201301-201303
AU RED-EDGE BLACK INTERIOR PACKAGE(250)
main81132-53240i200508-201008
main81132-53240i201205-201303
AU RED-EDGE BLACK INTERIOR PACKAGE(350)
main81132-53240i201205-201207
AU RED-EDGE BLACK INTERIOR PACKAGE(250)&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
81145FGASKET, HEADLAMP COVER, NO.2
main81134-53240i200508-201008
81175UNIT ASSY, HEADLAMP, LH
main81070-53220i200508-201004
LUXURY PACKAGE
sub81070-53351
main81070-53220i200508-201004
SPORT PACKAGE
sub81070-53351
main81070-53220i200908-201004
VERSION F
sub81070-53351
main81070-53220i200602-200704
sub81070-53351
main81070-53230i200508-200612
SPORT PACKAGE
sub81070-53231
main81070-53230i200508-200612
LUXURY PACKAGE
sub81070-53231
main81070-53230i200602-200612
sub81070-53231
main81070-53231i200908-201004
VERSION F
sub81070-53371
main81070-53231i200612-201004
SPORT PACKAGE
sub81070-53371
main81070-53231i200612-201004
LUXURY PACKAGE
sub81070-53371
main81070-53231i200612-200704
sub81070-53371
main81070-53351i201004-201008
VERSION F
main81070-53351i201004-201008
LUXURY PACKAGE
main81070-53351i201004-201008
SPORT PACKAGE
main81070-53371i201004-201008
SPORT PACKAGE
main81070-53371i201004-201008
VERSION F
main81070-53371i201004-201008
LUXURY PACKAGE
main81170-53250i200508-201008
main81170-53260i200508-200701
sub81170-53261
main81170-53261i200701-201008
main81170-53520i201008-201304
main81170-53530i201008-201304
main81185-53500i201008-201108
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
main81185-53501i201108-201109
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
main81185-53502i201109-201109
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
main81185-53503i201205-201303
AU RED-EDGE BLACK INTERIOR PACKAGE(350)
main81185-53503i201205-201207
AU RED-EDGE BLACK INTERIOR PACKAGE(250)&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
main81185-53503i201301-201303
AU RED-EDGE BLACK INTERIOR PACKAGE(250)
main81185-53503i201109-201304
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
main81185-53510i201008-201108
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
main81185-53511i201108-201109
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
main81185-53512i201109-201109
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
main81185-53513i201109-201304
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
main81185-53560i201008-201108
CHILE SPEC&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
81193DRETAINER, RH HEADLAMP PROTECTOR, UPPER LH
main81193-53020i200508-201008
81194DRETAINER, LH HEADLAMP PROTECTOR, UPPER LH
main81194-53010i200508-201008
81195BRETAINER, RH HEADLAMP PROTECTOR, LOWER RH
main81195-53010i200508-201008
81196CRETAINER, LH HEADLAMP PROTECTOR, LOWER LH
main81196-53020i200508-201008
81510DBULB (FOR FRONT TURN SIGNAL LAMP)
main90981-15021i201301-201303
12V 21W,AMBER,AU RED-EDGE BLACK INTERIOR PACKAGE(250)
main90981-15021i200508-201304
12V 21W,AMBER
main90981-15021i201205-201303
12V 21W,AMBER,AU RED-EDGE BLACK INTERIOR PACKAGE(350)
main90981-15021i201205-201207
12V 21W,AMBER,AU RED-EDGE BLACK INTERIOR PACKAGE(250)&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
81610FBULB(FOR CLEARANCE LAMP)
main99132-12050i200508-201304
12V 5W
81615DSOCKET, CLEARANCE LAMP
main90075-60077i200508-201008
85661MOTOR, HEADLAMP LEVELING, RH
main85661-48030i201205-201303
AU RED-EDGE BLACK INTERIOR PACKAGE(350)
main85661-48030i201205-201207
AU RED-EDGE BLACK INTERIOR PACKAGE(250)&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
main85661-48030i201301-201303
AU RED-EDGE BLACK INTERIOR PACKAGE(250)
main85661-48030i201008
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
main85661-48030i200602-200704
main85661-48030i200508-201008
LUXURY PACKAGE
main85661-48030i200508-201008
SPORT PACKAGE
main85661-48030i200908-201008
VERSION F
main85661-48030i201008-201108
CHILE SPEC&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
85662MOTOR, HEADLAMP LEVELING, LH
main85661-48030i200508-201008
SPORT PACKAGE
main85661-48030i200602-200704
main85661-48030i200508-201008
LUXURY PACKAGE
main85661-48030i200908-201008
VERSION F
main85661-48030i201008-201108
CHILE SPEC&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
main85661-48030i201205-201303
AU RED-EDGE BLACK INTERIOR PACKAGE(350)
main85661-48030i201205-201207
AU RED-EDGE BLACK INTERIOR PACKAGE(250)&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
main85661-48030i201301-201303
AU RED-EDGE BLACK INTERIOR PACKAGE(250)
main85661-48030i201008
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
85669PACKING, HEADLAMP LEVELING MOTOR BASE
main90075-99120i200602-200704
main90075-99120i200508-201008
LUXURY PACKAGE
main90075-99120i200508-201008
SPORT PACKAGE
main90075-99120i201008
HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
main90075-99120i200908-201008
VERSION F
main90075-99120i201008-201108
CHILE SPEC&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
main90075-99120i201205-201303
AU RED-EDGE BLACK INTERIOR PACKAGE(350)
main90075-99120i201205-201207
AU RED-EDGE BLACK INTERIOR PACKAGE(250)&HEADLAMP-DISCHAGE & AFS WITH(AUTO LEVELING)
main90075-99120i201301-201303
AU RED-EDGE BLACK INTERIOR PACKAGE(250)
9007502727
main90075-02727
9010506298
main90105-06298
9010906374
main90109-06374

25 parts on this diagram · 4 diagrams in section
