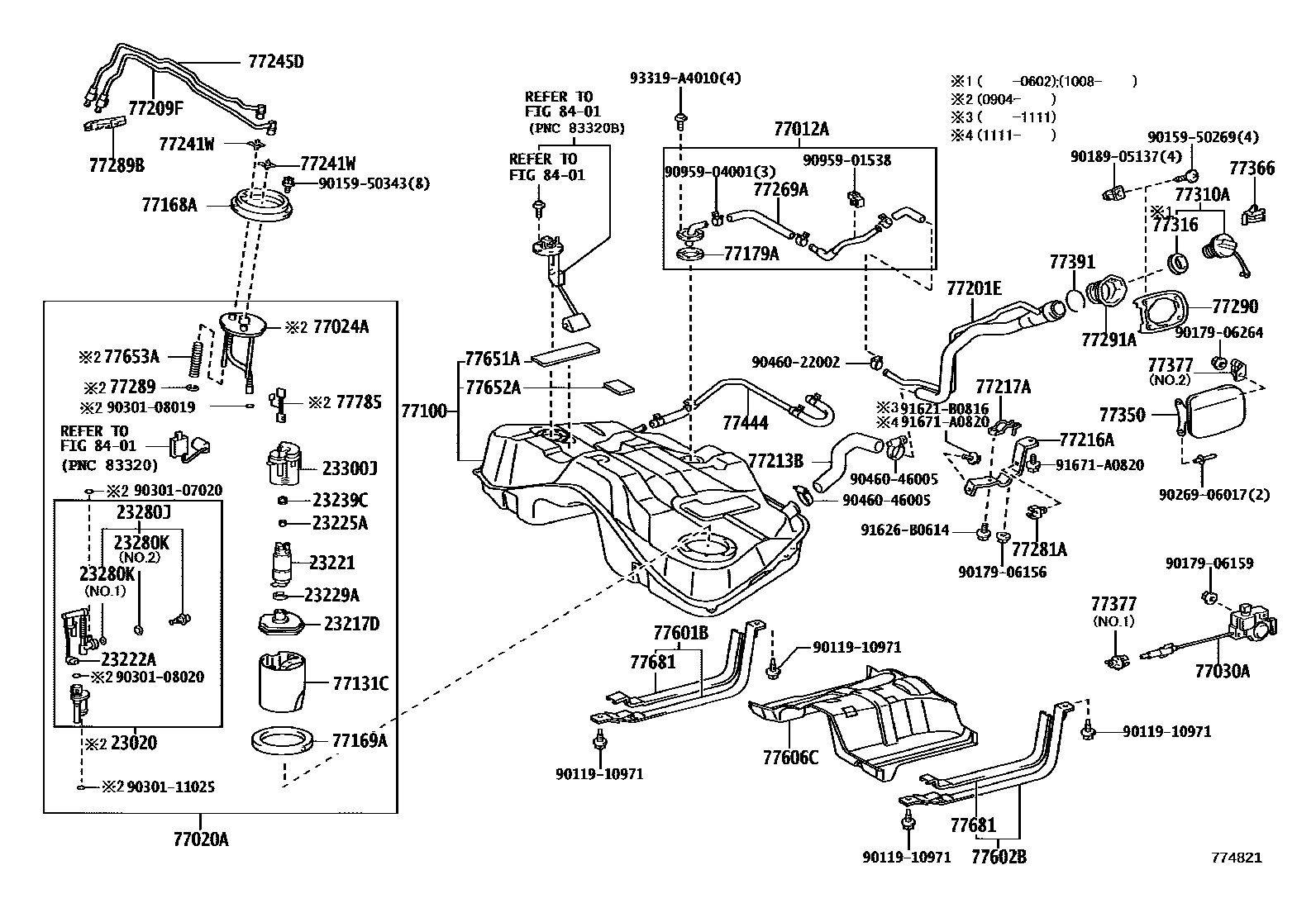

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TUBE 0004 1FUEL TUBE

23020REGULATOR ASSY, FUEL PRESSURE W/JET PUMP

main23020-31020i2GRFSE,4GRFSE..GSE2#200904-201304

23217DFILTER, FUEL PUMP

main23217-31100i4GRFSE..GSE20200508-201304

23221PUMP, FUEL

main23220-26110i2AD#..ALE20200511-201208

main23221-31020i4GRFSE..GSE20200508-200911

sub23221-31340

main23221-31340i4GRFSE..GSE20200911-201304

sub23220-31340

23222ATUBE, FUEL RETURN JET

main23222-26010i2ADFHV..ALE20..LUX;2ADFHV..ALE20..LHD..SPO200511-201208

main23222-31020i4GRFSE..GSE20200508-201304

23225ASPACER, FUEL PUMP

main23225-21010i4GRFSE..GSE20200508-201304

23229ACLIP(FOR FUEL PUMP FILTER)

main23229-16010i4GRFSE..GSE20200508-201304

23239CSEAL, FUEL PUMP FILTER

main23239-21010i4GRFSE..GSE20200508-201304

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-26030i2ADFHV..ALE20..LUX;2ADFHV..ALE20..LHD..SPO200511-201208

main23280-31020i4GRFSE..GSE20200508-201304

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i4GRFSE..GSE20200508-201304

NO.1

main90301-15024i4GRFSE..GSE20200508-201304

NO.2

23300JFILTER ASSY, FUEL

main23300-26120i2ADFHV..ALE20200511-201208

main23300-31140i4GRFSE..GSE20200508-201304

77012ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.1

main77012-53040iALE20..RHD..SPO200508-201008

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-53060iALE20200511-200902

sub77020-53061

main77020-53061iALE20200903-201208

main77020-53070iGSE20200508-200709

sub77020-53071

main77020-53071iGSE20200710-200903

sub77020-53072

main77020-53072iGSE20200904-200910

sub77020-53073

main77020-53073iGSE20200911-201301

sub77020-53074

main77020-53074iGSE2#201302-201304

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-22030iGSE2#200808-201304

sub77024-22031

main77024-53020iALE20200511-200903

sub77024-53021

main77024-53021iALE20200903-201208

77030ALOCK ASSY, FUEL LID W/MOTOR

main77030-51030iALE20,GSE20200508-201008

77100TANK ASSY, FUEL

main77001-53060iGSE20200508-200806

sub77001-53061

main77001-53061iGSE20200807-201008

sub77001-30601

main77001-53100iALE20200511-200809

sub77001-53101

main77001-53101iALE20..LUX;ALE20..LHD..SPO200810-201208

77131CSUB-TANK, FUEL, NO.1

main77131-22051iGSE20200508-200709

sub77131-22052

main77131-22052iGSE20200710-201304

77168APLATE, FUEL TANK VENT TUBE SET

main77168-52020iALE20,GSE20200508-201008

77169AGASKET, FUEL SUCTION TUBE SET

main77169-52010iALE20..LHD..SPO;ALE20,GSE20..LUX200508-201304

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-20040iALE20,GSE20200508-201008

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-53060iGSE20200508-201008

main77201-53070iALE20200511-201208

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-53020iGSE20200508-201008

main77209-53030iGSE21201008

main77209-53040iALE20..LUX;ALE20..LHD..SPO200511-201208

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-22100iGSE20200508-201008

main77213-53030iALE20200511-201208

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-30050iALE20,GSE20200508-201208

sub77216-30051

main77216-30051iGSE2#201203

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-30130iALE20..LHD..SPO;ALE20,GSE20..LUX200508-201208

sub77217-30131

main77217-30131iGSE2#201203

77241WCLIP, TUBE JOINT

main77241-33011iALE20,GSE20201002-201008

main77241-60320iALE20,GSE20200508-201001

77245DTUBE, FUEL TANK RETURN VENT

main77245-53010iGSE20200508-201008

main77245-53020iALE20200511-201208

77269AHOSE, FUEL TANK BREATHER

main77269-22010iALE20,GSE20200508-201008

77281ACLAMP, FUEL FILLER PIPE

main77281-50020iALE20,GSE20200508-201008

77289HOLDER, FUEL TANK PIPE SETTING

main77289-52090iGSE2#200904-201304

77289BCLAMP, FUEL TUBE, NO.3

main77289-33050iALE20200511-201208

NO.1

main77289-53020iGSE20200508-201008

main77289-53030iALE20200511-201208

NO.2

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-53010iALE20,GSE20200508-201008

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-53030iALE20,GSE20200508-201008

77310ACAP ASSY, FUEL TANK

main77300-52030iALE20..LHD..SPO;ALE20,GSE20..LUX200508-201008

77316GASKET, FUEL TANK CAP

main77316-52020iALE20,GSE20200508-200602

sub77316-52040

main77316-52040iALE20,GSE2#201008

77350LID ASSY, FUEL FILLER OPENING

main77350-53050iALE20,GSE20200508-201008

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-30070iALE20..RHD..SPO200602-201008

main77360-30080iALE20,GSE20200508-200601

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12050iALE20,GSE2#200508-201008

NO.1

main77377-22060iALE20,GSE20200508-201008

NO.2

77391RING, FUEL INLET BOX

main77391-12020iALE20,GSE20200508-201008

77444HOSE, FUEL TANK VENT

main77404-53030iALE20..LUX;ALE20..LHD..SPO200511-201208

main77404-53040iGSE20200508-201008

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-53020iALE20,GSE20200508-201008

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77601-22110iALE20,GSE20200508-201008

77606CPROTECTOR, FUEL TANK, NO.2

main77606-53030iGSE2#200508-201208

sub77606-53031

main77606-53031iGSE2#201207-201304

77651ACUSHION, FUEL TANK, NO.1

main77651-53010iALE20,GSE20200508-201008

77652ACUSHION, FUEL TANK, NO.2

main77652-12100iALE20,GSE20200508-201008

77653ACUSHION, FUEL TANK, NO.3

main77652-22090iGSE20200904-201304

77681SEAT, FUEL TANK BAND, RH

main77681-22020iALE20,GSE20200508-201008

77785HARNESS, FUEL PUMP

main77785-30040iGSE2#200904-201304

sub77785-30041

main77785-52020iALE20..LUX;ALE20..LHD..SPO200511-201208

8401

9011910971

main90119-10971

9015950269

main90159-50269

9015950343

main90159-50343

9017906156

main90179-06156

9017906159

main90179-06159

9017906264

main90179-06264

9018905137

main90189-05137

9026906017

main90269-06017

9030107020

main90301-07020

9030108019

main90301-08019

9030108020

main90301-08020

9030111025

main90301-11025

9046022002

main90460-22002

9046046005

main90460-46005

9095901538

main90959-01538

9095904001

main90959-04001

91621B0816

main91621-B0816

91626B0614

main91626-B0614

91671A0820

main91671-A0820

93319A4010

main93319-A4010
