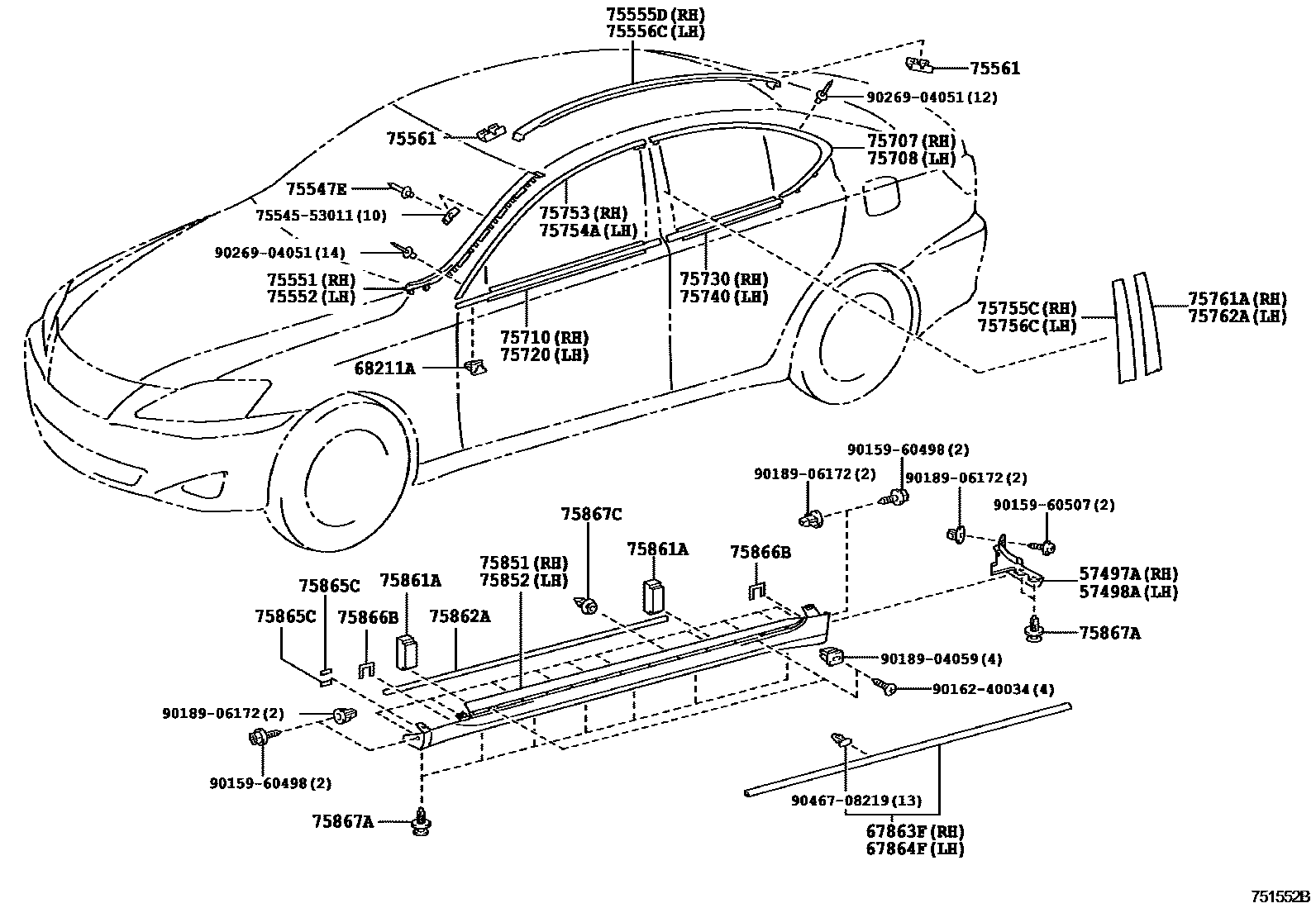

SIDE MOULDING
57497ASHIELD, REAR FLOOR HOUSING
NEW ZEALAND SPEC
AUSTRALIA SPEC
57498ASHIELD, REAR FLOOR HOUSING, NO.2
NEW ZEALAND SPEC
AUSTRALIA SPEC
67863FWEATHERSTRIP, FRONT DOOR, NO.2 RH
67864FWEATHERSTRIP, FRONT DOOR, NO.2 LH
68211ACLIP, DOOR BELT MOULDING
75547ECLIP, WINDSHIELD OUTSIDE MOULDING, NO.3
75551MOULDING, ROOF DRIP SIDE FINISH, RH
NO PAINT REQ.
75552MOULDING, ROOF DRIP SIDE FINISH, LH
NO PAINT REQ.
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75707MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, RH
75708MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, LH
75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH
NO PAINT REQ.
75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH
NO PAINT REQ.
75862APROTECTOR, ROCKER PANEL MOULDING, NO.2
75865CPROTECTOR, ROCKER PANEL MOULDING, NO.5
75866BPROTECTOR, ROCKER PANEL MOULDING, NO.6
75867ACLIP, ROCKER PANEL MOULDING
75867CCLIP, ROCKER PANEL MOULDING
7554553011SPACER, WINDSHIELD GLASS
main75545-53011
9015960498
main90159-60498
9015960507
main90159-60507
9016240034
main90162-40034
9018904059
main90189-04059
9018906172
main90189-06172
9026904051
main90269-04051
9046708219
main90467-08219
39 parts on this diagram · 1 diagram in section
