SEAT BELT & CHILD RESTRAINT SEAT

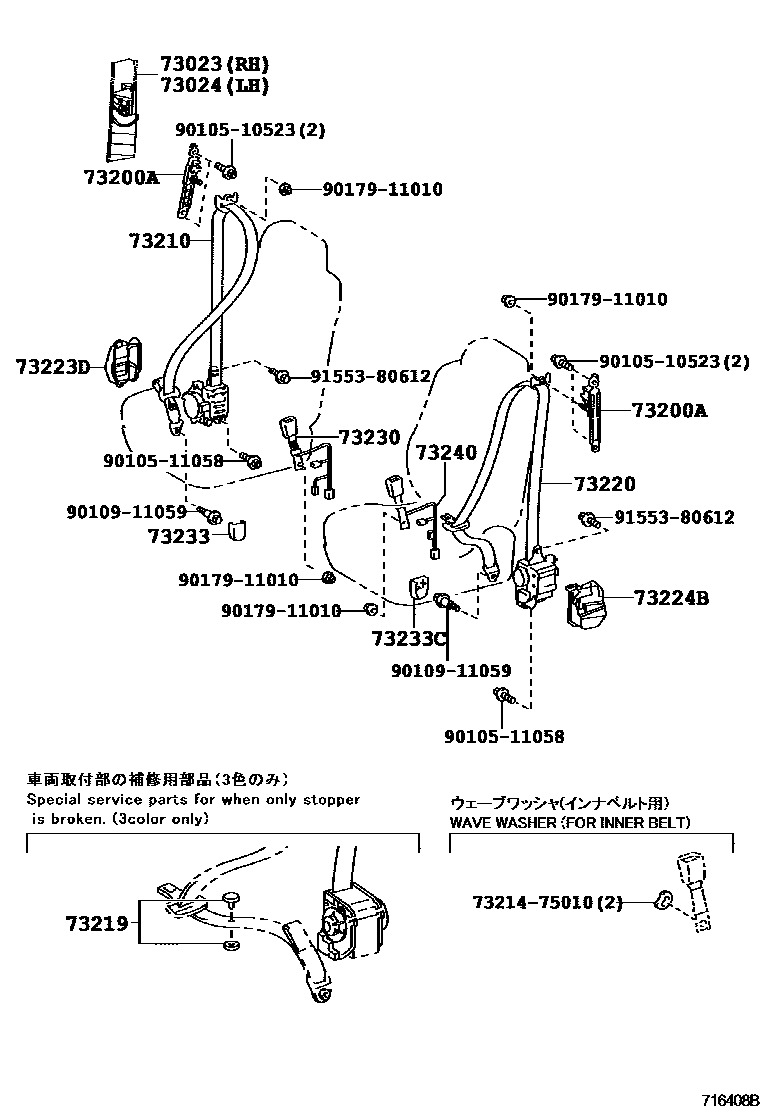

Parts diagram
73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
main73023-53010-A0i200508-200808
IVORY,TRIM0#
sub73023-53011
sub73023-53020
main73023-53010-B0i200508-200808
LT.GRAY,TRIM1#,2#
sub73023-53011
sub73023-53020
main73023-53020-A3i200808-201304
ECRU,TRIM0#
main73023-53020-B0i200908-201008
LT.GRAY,TRIM1#,20,21,23
main73023-53020-B0i201008-201304
LT.GRAY,TRIM1#,21,23,24
main73023-53020-B0i200808-201008
LT.GRAY,TRIM1#,2#
main73023-53020-B0i201008-201304
LT.GRAY,TRIM1#,21,23
main73023-53020-C0i200908-201304
BLACK,TRIM22
73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
main73024-53010-A0i200508-200808
IVORY,TRIM0#
sub73024-53011
sub73024-53020
main73024-53010-B0i200508-200808
LT.GRAY,TRIM1#,2#
sub73024-53011
sub73024-53020
main73024-53020-A3i200808-201304
ECRU,TRIM0#
main73024-53020-B0i201008-201304
LT.GRAY,TRIM1#,21,23
main73024-53020-B0i200808-201008
LT.GRAY,TRIM1#,2#
main73024-53020-B0i200908-201008
LT.GRAY,TRIM1#,20,21,23
main73024-53020-B0i201008-201304
LT.GRAY,TRIM1#,21,23,24
main73024-53020-C0i200908-201304
BLACK,TRIM22
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-53010i200508-201008
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-53140-A1i200508-200808
IVORY,TRIM0#
sub73210-53350
sub73210-53352
sub73210-53140
main73210-53140-A2i200808-200907
ECRU,TRIM0#
sub73210-53350
sub73210-53352
sub73210-53140
main73210-53140-B0i200808-200907
LT.GRAY,TRIM1#,2#
sub73210-53350
sub73210-53352
sub73210-53140
main73210-53140-C2i200508-200808
BLACK,TRIM1#
sub73210-53350
sub73210-53352
sub73210-53140
main73210-53140-C3i200508-200808
BLACK,TRIM2#
sub73210-53350
sub73210-53352
sub73210-53140
main73210-53350-A5i200908-201302
ECRU,TRIM0#
sub73210-53351
main73210-53350-C1i200908-201302
BLACK,TRIM22
sub73210-53351
main73210-53350-C3i200908-201302
BLACK/LT.GRAY,TRIM1#,21,23
sub73210-53351
main73210-53350-C3i200908-201008
BLACK/LT.GRAY,TRIM1#,2#
sub73210-53351
main73210-53350-C3i201008-201302
BLACK/LT.GRAY,TRIM1#,21,23,24
sub73210-53351
main73210-53351-A5i201303-201304
ECRU,TRIM0#
sub73210-53352
main73210-53351-C1i201303-201304
BLACK,TRIM22
sub73210-53352
main73210-53351-C3i201303-201304
BLACK/LT.GRAY,TRIM1#,21,23
sub73210-53352
73219STOPPER, TONGUE PLATE
main73219-33010i200508-201008
BLACK
main73219-33020i200508-201008
GRAY
main73219-33030i200508-201008
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-53130-A1i200508-200808
IVORY,TRIM0#
sub73220-53270
sub73220-53272
sub73220-53130
main73220-53130-A2i200808-200907
ECRU,TRIM0#
sub73220-53270
sub73220-53272
sub73220-53130
main73220-53130-B0i200808-200907
LT.GRAY,TRIM1#,2#
sub73220-53270
sub73220-53272
sub73220-53130
main73220-53130-C2i200508-200808
BLACK,TRIM1#
sub73220-53270
sub73220-53272
sub73220-53130
main73220-53130-C3i200508-200808
BLACK,TRIM2#
sub73220-53270
sub73220-53272
sub73220-53130
main73220-53270-A5i200908-201302
ECRU,TRIM0#
sub73220-53271
main73220-53270-C1i200908-201302
BLACK,TRIM22
sub73220-53271
main73220-53270-C3i201008-201302
BLACK/LT.GRAY,TRIM1#,21,23,24
sub73220-53271
main73220-53270-C3i200908-201008
BLACK/LT.GRAY,TRIM1#,2#
sub73220-53271
main73220-53270-C3i200908-201302
BLACK/LT.GRAY,TRIM1#,21,23
sub73220-53271
main73220-53271-A5i201303-201304
ECRU,TRIM0#
sub73220-53272
main73220-53271-C1i201303-201304
BLACK,TRIM22
sub73220-53272
main73220-53271-C3i201303-201304
BLACK/LT.GRAY,TRIM1#,21,23
sub73220-53272
73223DCOVER, FRONT SEAT BELT RETRACTOR, RH
main73223-53010i200508-201304
73224BCOVER, FRONT SEAT BELT RETRACTOR, LH
main73224-53010i200508-201304
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-53130-A0i200602-200708
IVORY,TRIM0#
main73230-53130-B0i200602-200708
FROSTY GRAY,TRIM1#
main73230-53130-C0i200602-200708
BLACK,TRIM2#
main73230-53140-A0i200602-200708
IVORY,TRIM0#
main73230-53140-B0i200602-200708
FROSTY GRAY,TRIM1#
main73230-53140-C0i200602-200708
BLACK,TRIM2#
main73230-53190-A0i200508-200808
IVORY,TRIM0#
main73230-53190-B0i200508-200808
FROSTY GRAY,TRIM1#
main73230-53190-C0i200808-201304
BLACK,TRIM1#,2#
main73230-53190-C0i200508-200808
BLACK,TRIM2#
main73230-53190-C0i200808-201008
SEAT HEATER-AIR CONDITIONER SEAT(DRIVER & PASSENGER),BLACK,TRIM1#,2#
main73230-53200-A0i200508-200808
IVORY,TRIM0#
main73230-53200-B0i200508-200808
FROSTY GRAY,TRIM1#
main73230-53200-C0i200808-201304
BLACK,TRIM1#,2#
main73230-53200-C0i200508-200808
BLACK,TRIM2#
main73230-53200-C0i200808-201008
SEAT HEATER-AIR CONDITIONER SEAT(DRIVER & PASSENGER),BLACK,TRIM1#,2#
73233COVER, LAP BELT OUTER ANCHOR
main73233-52010-A0i200508-200808
IVORY,TRIM0#
sub73233-60020
sub73233-0C010
main73233-52010-A3i200808-201304
ECRU,TRIM0#
sub73233-60020
sub73233-0C010
main73233-52010-C0i200508-201304
BLACK,TRIM1#,2#
sub73233-60020
sub73233-0C010
73233CCOVER, LAP BELT OUTER ANCHOR, LH
main73233-52010-A0i200508-200808
IVORY,TRIM0#
sub73233-60020
sub73233-0C010
main73233-52010-A3i200808-201304
ECRU,TRIM0#
sub73233-60020
sub73233-0C010
main73233-52010-C0i200508-201304
BLACK,TRIM1#,2#
sub73233-60020
sub73233-0C010
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-53130-A0i200602-200708
IVORY,TRIM0#
main73230-53130-B0i200602-200708
FROSTY GRAY,TRIM1#
main73230-53130-C0i200602-200708
BLACK,TRIM2#
main73230-53140-A0i200602-200708
IVORY,TRIM0#
main73230-53140-B0i200602-200708
FROSTY GRAY,TRIM1#
main73230-53140-C0i200602-200708
BLACK,TRIM2#
main73230-53190-A0i200508-200808
IVORY,TRIM0#
main73230-53190-B0i200508-200808
FROSTY GRAY,TRIM1#
main73230-53190-C0i200808-201304
BLACK,TRIM1#,2#
main73230-53190-C0i200508-200808
BLACK,TRIM2#
main73230-53200-A0i200508-200808
IVORY,TRIM0#
main73230-53200-B0i200508-200808
FROSTY GRAY,TRIM1#
main73230-53200-C0i200808-201304
BLACK,TRIM1#,2#
main73230-53200-C0i200508-200808
BLACK,TRIM2#
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
9010510523
main90105-10523
9010511058
main90105-11058
9010911059
main90109-11059
9017911010
main90179-11010
9155380612
main91553-80612

18 parts on this diagram · 2 diagrams in section
