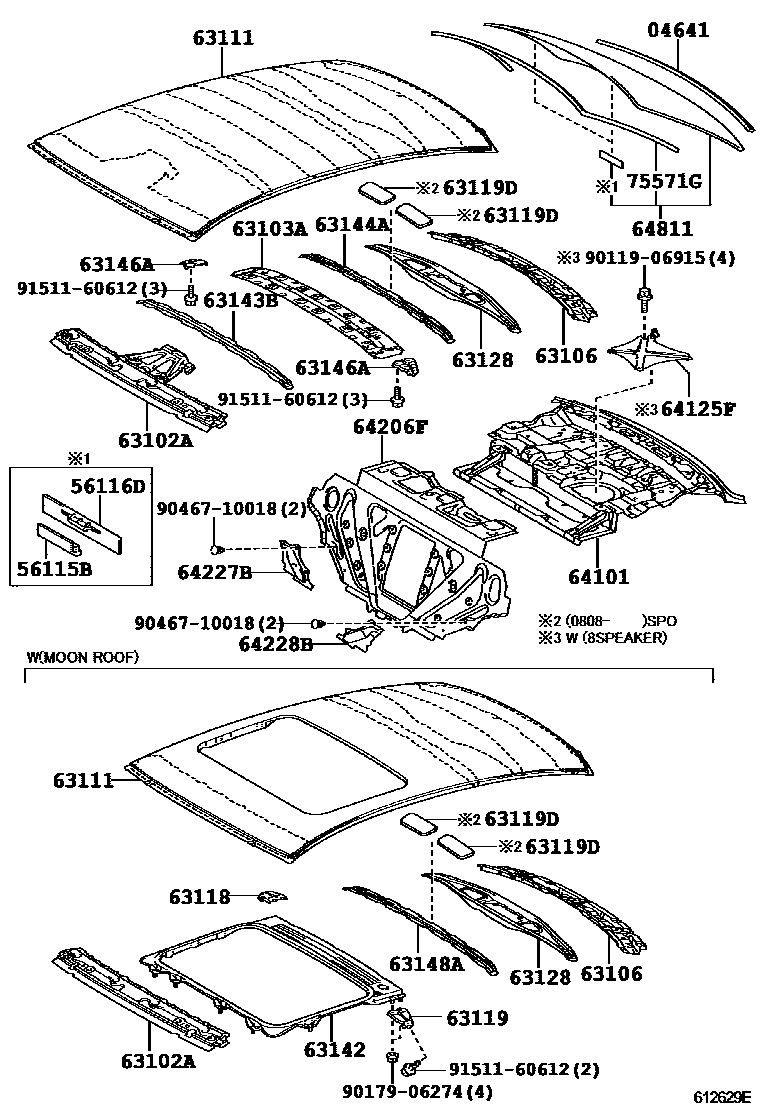

ROOF PANEL & BACK WINDOW GLASS
04641DAM KIT, BACK WINDOW GLASS
sub56117-50140
56115BSTOPPER, BACK WINDOW GLASS, NO.1
56116DSTOPPER, BACK WINDOW GLASS, NO.2
63102APANEL SUB-ASSY, WINDSHIELD HEADER
63103AREINFORCEMENT SUB-ASSY, ROOF PANEL
63106REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.4
63111PANEL, ROOF
63118SUPPORT, ROOF PANEL, RH
main63118-53020
63119DPAD, ROOF PANEL, NO.1
63128REINFORCEMENT, ROOF PANEL, NO.6
63142REINFORCEMENT, ROOF PANEL, NO.2
main63142-53901
63143BREINFORCEMENT, ROOF PANEL, NO.3
63144AREINFORCEMENT, ROOF PANEL, NO.4
63146ABRACKET, ROOF PANEL REINFORCEMENT, NO.1
63148AREINFORCEMENT, ROOF PANEL, NO.7
64101PANEL SUB-ASSY, UPPER BACK
64125FBRACKET, UPPER BACK PANEL
64227BEXTENSION, CENTER FLOOR TO BLACE, NO.1
64228BEXTENSION, CENTER FLOOR TO BRACE, NO.2
64811GLASS, BACK WINDOW
*UVCT,T=3.1,GREEN
*UVCT,T=3.1,GREEN,RUSSIA SPEC
*UVCT,T=3.1,GREEN,HONG KONG SPEC
*UVCT,T=3.1,GREEN,CROATIA SPEC&LUXURY PACKAGE
*UVCT,T=3.1,GREEN,CROATIA SPEC&FB PACKAGE
*UVCT,T=3.1,C.GREEN,SPORT PACKAGE
*UVCT,T=3.1,C.GREEN,LUXURY PACKAGE
*UVCT,T=3.1,C.GREEN
75571GMOULDING, BACK WINDOW, OUTSIDE UPPER, NO.1
9011906915
main90119-06915
9017906274
main90179-06274
9046710018
main90467-10018
9151160612
main91511-60612
27 parts on this diagram · 2 diagrams in section
